Summary of Contents for Shandong Renke Control Technology RS-YG-N01
- Page 1 Photoelectric Smoke Fire Alarm User ManualV2.0 RS-YG-N01 485 type photoelectric smoke detector fire alarm User manual Document version：V2.0 Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
-
Page 2: Table Of Contents
6. letter of agreement...........................8 6.1 Basic communication parameters..................8 6.2 Data frame format definition....................9 6.3 Register address........................10 6.4 Communication protocol example and explanation............10 7. Common problems and solutions....................11 8. Contact information........................11 9. Document history..................错误！未定义书签。 Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 3: Product Introduction

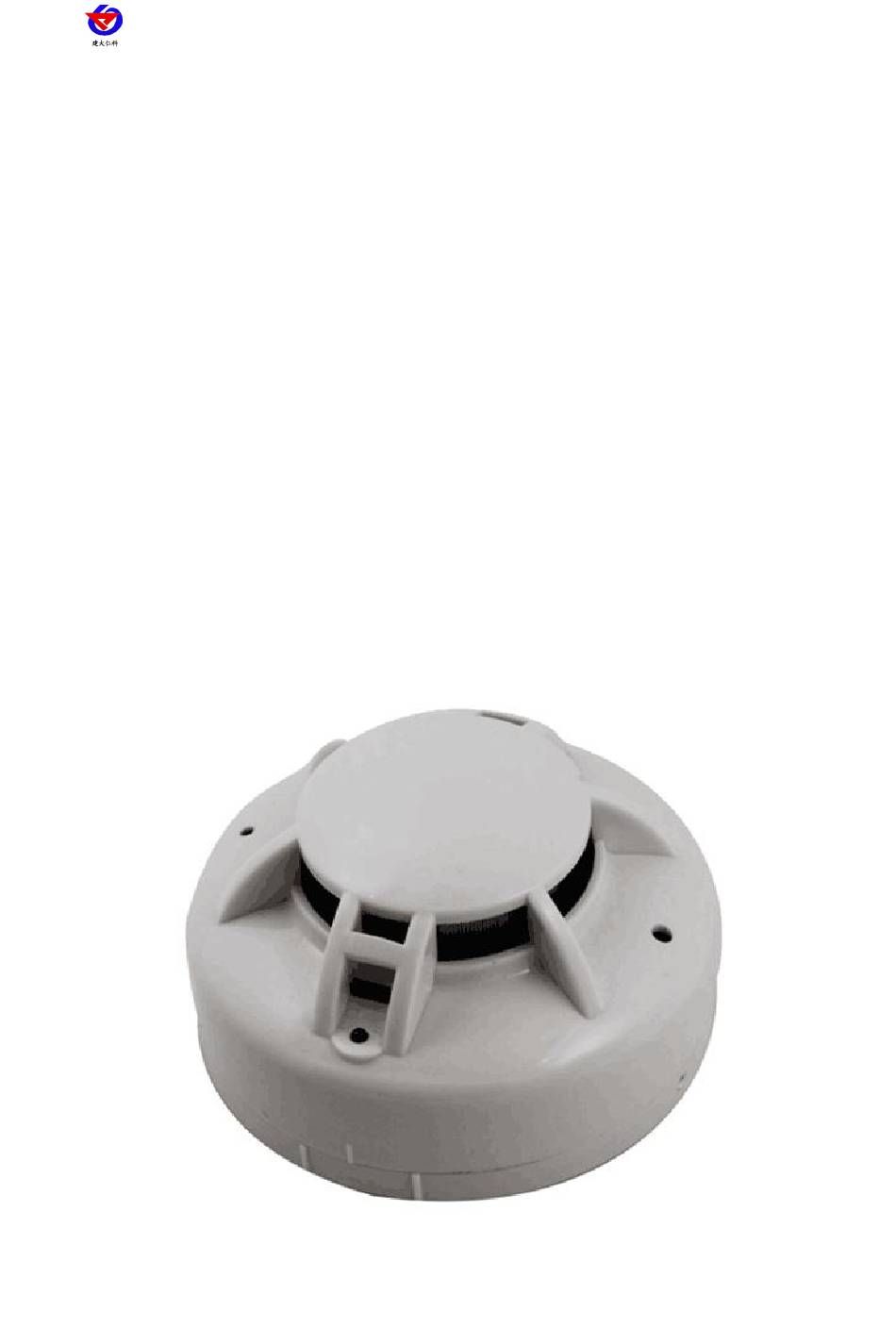

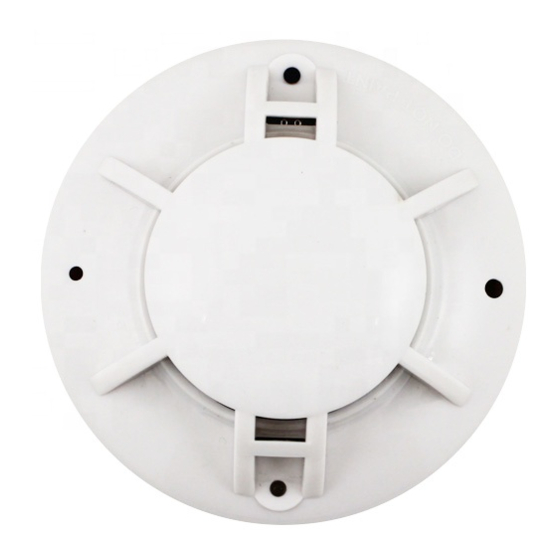

1.Product introduction 1.1 product description The RS-YG-N01 Photoelectric Smoke Fire Alarm (hereafter referred to as the alarm) is capable of detecting smoke generated during a fire. The alarm adopts photo-electricity smoke device and excellent production technology. It has stable work, beautiful appearance, simple installation and no need for debugging. -
Page 4: Dimensions
The power input can be 10~30V. When wiring the 485 signal line, note that the A\B lines cannot be connected in reverse, and the addresses between multiple devices on the bus cannot conflict. Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 5: Installation Notes
Two mounting holes of 5 mm in diameter were placed at a distance of 60 mm from the ceiling, and the detector base was fixed to the ceiling with a plug and a screw. Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 6: Software Selection
Photoelectric Smoke Fire Alarm User ManualV2.0 5. Configuration software installation and use Software selection Open the package and select "Debug Software"---"485 Parameter Configuration Software" to find Open it. Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 7: Parameter Settings
3. Modify the address and baud rate according to the needs of use, and query the current functional status of the device. 4. If the test is not successful, please re-check the equipment wiring and 485 driver installation Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 8: Letter Of Agreement
Code 8-bit binary Data bit 8 digits Parity bit Stop bit 1 person Error check CRC (redundant cyclic code) Baud rate 2400bit/s, 4800bit/s, 9600 bit/s can be set, the factory default is 4800bit/ Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 9: Data Frame Format Definition
Function code: The instruction function of the command sent by the host. This transmitter only uses function code 0x03 (read register data). Data area: The data area is the specific communication data. Note that the 16-bit data high byte is in front! CRC code: Two-byte check code. Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 10: Register Address
Check code Check code l address code function code mber of valid b high ytes 0x02 0x00 0x01 0x84 0x01 0x03 0x79 Alarm status description： Alarm status code Alarm status normal Call the police Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 11: Common Problems And Solutions
Shandong Renke Measurement & Control Technology Co., Ltd. Address: 2886 Fengjing Road, High-tech Zone, Jinan City, Shandong Province Zip code: 250101 Phone: 400-085-5807 Fax: (86)0531-67805165 Website: www.renkeer.com Cloud platform address: www.0531yun.cn 9. Document history Shandong Renke Control Technology Co., Ltd. www.renkeer.com... - Page 12 Photoelectric Smoke Fire Alarm User ManualV2.0 The V1.0 documentation was created. V2.0 documentation update. Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
