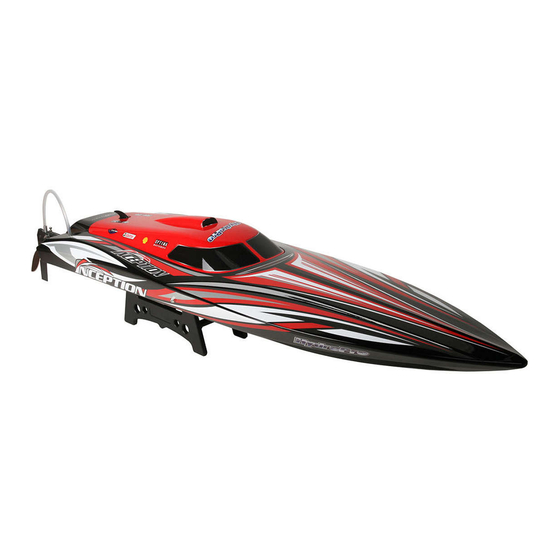

Summary of Contents for HydroPro Inception
- Page 1 BRUSH LISS POWERED DIEP Vil RACING BOAT Instruction Manual...
-
Page 2: Items Required For Comp L Etion & Battery Pack Recommendations
----------- l ntroduction ----------- Thank you for purchasing this HydroPro brushless racing boat! This manual contains the instructions you need to safely prepare, operate, and maintain your RIC boat. Read over this manual thoroughly before operating the model. - Page 3 THIS MODEL IS NOT A TOY! THESE INSTRUCTIONS SHOULD BE READ BY A SUPERVISING ADULT. Specitications: Hull Length ..........950mm Total Length ......... 1060mm Beam ............260mm Speed ............ 80+KPH Hull Material..........ABS Universal Assemblv: Motor ........... Water cooled Powerful Out-runner brushless Motor (included) Radio System .........
-
Page 4: Battery Pack
Each Inception model is supplied from the factory with radio and cooling systems already set up. However, if you have cause to maintain, repair or replace parts in your model in the future, this chart can be of help when it comes time to re-installing/re-connecting everything. - Page 5 I ] i i i:1 :i •---------------------------------,, 1 ' d � Before using this model and its radio control system, and to ensure the safety of yourself and others, it is very important that you read these instructions thoroughly and understand them. This model is capable of speeds in excess of 80+km/h! Care should be taken to avoid the possibility of injury and/or property damage.
- Page 6 4) Fit a propeller to the propeller shaft and secure with the intended nylon nut. Do not overtighten as the nylon insert will prevent the nut from accidentally working loose! 5) Install adjustable turn fins on the turn fins mount using 3.0mm alien key and 5.517mm wrench. The optimum angle of adjustment is 45 degrees to the hull.
- Page 7 IMPORTANT NOTE: 1. It is not suitable to race boat in too strong of wind and waves. 2. Model can achieve high speed, must slow down when steering. Adjusting the rear strut to a higher position will increase top-end speed, but reduce steering response and could cause cavitation (unwanted vibration) if excessivley adjusted, which can cause harm to the motor and ESC.
- Page 8 Attention: Before replacing the model upper deck, check to ensure that the water-cooling tubing that connects to the motor is not obstructed or kinked, as this can cause the motor and speed controller to overheat and potentially burn out. Note 1: This model will typically run for around 7-8 minutes on fully charged Li-Po battery packs, although this will vary depending on the type and capacity of Li-Po packs you choose.
- Page 9 BATT.(6V) THROTTE SERVO Note: If ESC with BEC function, no need to connect battery with receiver. 1: 1 i � l � U fl i I i111 ___________________________ ____,, i1 � Caution: Before racing boat, Please use balloon supplied in tool bag to wrap receiver for water proofing.
-
Page 10: Throttle Trim
3. The ESC & motor is now armed and ready for operation. 4. Check the direction of the rudder, the trailing edge of the rudder should turn right when right input is given. Conversely, when left input is given, the trailing edge of the rudder should turn left. - Page 11 ,a:, i l •-------------------� The HydroPro Inception brushless power deep vee racing boat is assembled with a 120A water cooled brushless ESC, please see below the specification: Protections: Thermal protection and low voltage protection (see ESC user manual on hobbyking.com)
-
Page 12: During Operation
• Do not touch moving parts during operation, especially the propeller. • If you lose control of your Inception model, never wade into deep water or water with strong currents to retrieve it. First, hold the transmitter as high as you can to try to re-establish control. If this does not work, find another way ■... - Page 13 NOTES:...
- Page 14 NOTES:...
- Page 15 NOTES:...
