TXF-ISS Installation Instructions
Overview
WARNINGS
•
This product must be installed in accordance with all
applicable codes by a person familiar with the
product.
•
Each fixture must be properly supported during install.
•
DO NOT join fixtures on the floor prior to lifting, or
damage will occur.
•
Before beginning installation, review our complete list
of warnings by visiting www.saylite.com/warnings.
Mounting and Suspension
Page 2
Your particular build may vary.
Step 2
ID and Prep
Step 1
Page 3
Step 3
Install Hanging Kits
Page 4
Step 4
Suspend Fixture
Page 5
2020© Saylite|2055 Luna Road, Suite 142 Carrollton, Texas 75006|www.saylite.com
Step 5
Wire Fixture
Page 6
Advertisement
Summary of Contents for Saylite TXF-ISS

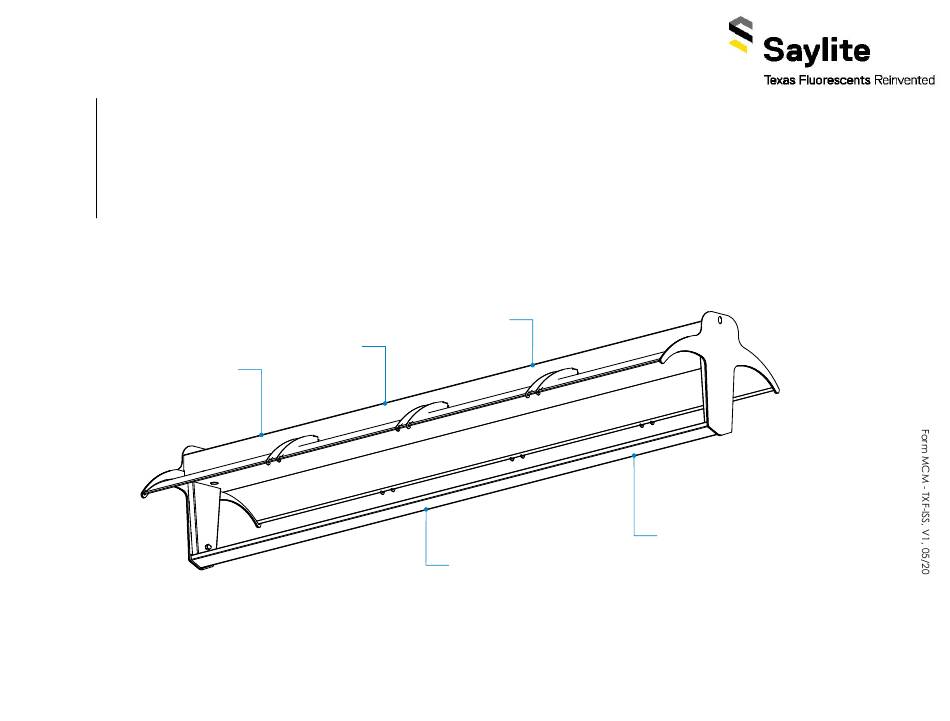

- Page 1 Page 4 ID and Prep Step 1 Page 3 Mounting and Suspension Page 2 Step 5 Wire Fixture Step 4 Page 6 Suspend Fixture Page 5 Your particular build may vary. 2020© Saylite|2055 Luna Road, Suite 142 Carrollton, Texas 75006|www.saylite.com...
- Page 2 TXF-ISS Installation Instructions Step 1 - Mounting and Suspension Mounting Drywall or other hard surfaces - HC Hook SL Hanging Kit* • Install hanging kits at suspension locations. • Ensure hanging kits are secure. • Prepare fixture for mounting. Other hard surfaces include: wood, sheet metal panels, steel beams, concrete or masonry.
- Page 3 Organize fixtures based on their labels at the install location. needed may vary based on actual install location conditions. Kitted Hardware • Saylite has provided the items listed here, with their Saylite part numbers listed. These items can be found in separate boxes shipped with the fixture. •...
- Page 4 TXF-ISS Installation Instructions Step 3 - Install Hanging Kits A. Install Hanging Kits B. Adjust Cable Level ADJUST • Install the hanging kits to the ceiling at the desired mounting locations. • Adjust hanging cables to desired length, cables can be further adjusted after fixture is installed.
- Page 5 TXF-ISS Installation Instructions Step 4 - Suspend the Fixture A. Open Cable Hooks B. Insert Fixture PULL HOOK THRU PUSH IN INSTALLED • Insert the opened hook thru the oblong of the fixture endcap and • To suspend the fixture, first push in the spring latch on the release the spring latch.
- Page 6 TXF-ISS Installation Instructions Step 5 - Wire the Fixture A. Connect Wiring B. Secure Power Cable WIRING LEGEND BLACK Line Voltage WHITE NEUTRAL Line Voltage Wire Strain GREEN GROUND Relief GRAY DIMMING 0-10V DC VIOLET DIMMING 0-10V DC Power Cable •...
- Page 7 Step 1 Page 3 Mounting and Suspension Page 2 Step 7 Wire Fixture Step 6 Page 11 Suspend Ender Step 5 Page 9-10 Suspend Joiners Page 6-8 Your particular build may vary. 2020© Saylite|2055 Luna Road, Suite 142 Carrollton, Texas 75006|www.saylite.com...
- Page 8 TXF-ISS-Continuous Run Installation Instructions Step 1 - Mounting and Suspension Mounting Drywall or other hard surfaces - HC Hook SL Hanging Kit* • Install hanging kits at suspension locations. • Ensure hanging kits are secure. • Prepare fixture for mounting.
- Page 9 Organize fixtures based on their labels at the install location. needed may vary based on actual install location conditions. Kitted Hardware • Saylite has provided the items listed here, with their Saylite part numbers listed. These items can be found in separate boxes shipped with the fixture. •...
- Page 10 TXF-ISS-Continuous Run Installation Instructions Step 3 - Install Hanging Kits A. Install Hanging Kits B. Adjust Hanging Cables ADJUST • Install the hanging kits to the ceiling at the desired mounting • Adjust hanging cables to desired length, cables can be further locations.
- Page 11 TXF-ISS-Continuous Run Installation Instructions Step 4 - Suspend Beginner Fixture A. Hang the Fixture DETAIL A DETAIL B SCALE 1 : 6 SCALE 1 : 6 • Hang the beginner fixture by pulling the cable hooks through the oblong on each end of the fixture.
- Page 12 TXF-ISS-Continuous Run Installation Instructions Step 5 - Suspend Joiner Fixture(s) A. Slide Over Joiner Bracket B. Hang Fixture SLIDE DETAIL C DETAIL B DETAIL A SCALE 1 : 6 SCALE 1 : 6 SCALE 1 : 10 • Slide the joiner fixture over the joiner bracket of the previously •...
- Page 13 TXF-ISS-Continuous Run Installation Instructions Step 5 - Suspend Joiner Fixture(s) (Cont'd) C. Remove Wire Ways D. Connect Wire Harness Male Connector Female Connector Joiner Bracket Wire Ways Connection Point Inside DETAIL D Acorn Nuts SCALE 1 : 8 • After the joiner fixture has been hung remove the wire ways at each fixture joint.
- Page 14 TXF-ISS-Continuous Run Installation Instructions Step 5 - Suspend Joiner Fixture(s) (Cont'd) E. Secure Fixture to Bracket(s) F. Replace Wire Ways #8-32 Sheet Metal Screws #10 Bolt Holes Wire Ways #8 Screw Holes DETAIL D Acorn Nuts SCALE 1 : 8 •...
- Page 15 TXF-ISS-Continuous Run Installation Instructions Step 6 - Suspend Ender Fixture A. Slide Over Bracket B. Install Cable Hooks SLIDE DETAIL C DETAIL B SCALE 1 : 12 SCALE 1 : 12 DETAIL A SCALE 1 : 8 • Slide the ender fixture over the bracket of the previous •...
- Page 16 TXF-ISS-Continuous Run Installation Instructions Step 6 - Suspend Ender Fixture (Cont'd) C. Connect Wiring Harness D. Secure to Joiner Bracket DETAIL E DETAIL D SCALE 1 : 9 SCALE 1 : 8 • Replace the wire way and use #8-32 sheet metal screws to secure •...
- Page 17 TXF-ISS-Continuous Run Installation Instructions Step 7 - Wire the Fixture A. Connect Wiring B. Secure Power Cable WIRING LEGEND BLACK Line Voltage Wire Strain WHITE NEUTRAL Line Voltage Relief GREEN GROUND GRAY DIMMING 0-10V DC VIOLET DIMMING 0-10V DC Power Cable •...
