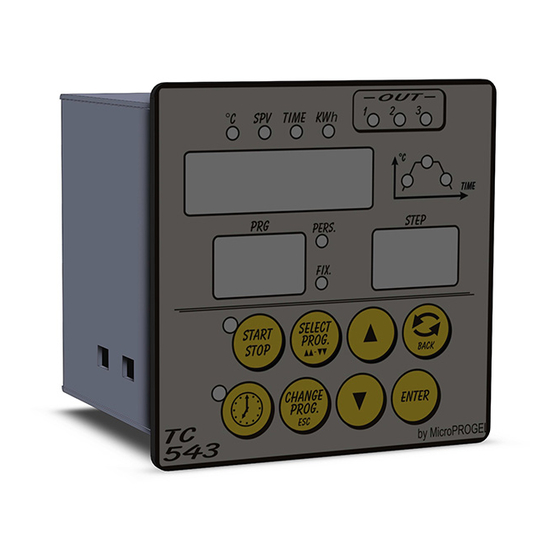

Summary of Contents for MicroPROGEL TC543
- Page 1 MicroPROGEL ______________________________________________________________________________________ Operating instructions, TC543 controller. ______________________________________________________________________________________ http://www.microprogel.it info@microprogel.it...
- Page 2 MicroPROGEL ______________________________________________________________________________________ The “Out” light indicates that the heating element is powered. The “Aux” light indicates the status of an auxiliary that can be associated to the cycle steps or various types of alarm. These lights indicate the whether the...
-
Page 3: Table Of Contents
MicroPROGEL ______________________________________________________________________________________ SUMMARY Sect. 1) Description of the controller operating modes ............4 Sect. 2) Displaying the various values (temperature, step time etc..) ........5 Sect. 3) Selecting the cycle from the 56 user (PERS) and 9 pre-configured (FIX) cycles..7 Sect. 4) Entering or modifying the selected cycle ..............7 Sect. -
Page 4: Sect. 1) Description Of The Controller Operating Modes
MicroPROGEL ______________________________________________________________________________________ Sect. 1) Description of the controller operating modes The controller features various different operating modes: • controller in STOP mode the controller is in STOP mode when no cycle is being run. The lights next to the START STOP buttons are both off. -
Page 5: Sect. 2) Displaying The Various Values (Temperature, Step Time Etc
MicroPROGEL ______________________________________________________________________________________ • controller in TIMER mode the controller is in TIMER mode when a delayed cycle has been activated. The delay time is counted down on the “MAIN” display. The lights to the sides of the START STOP buttons both blink. The TIME light located above to MAIN display is on. - Page 6 MicroPROGEL ______________________________________________________________________________________ • To set the total energy counter to zero, press the button until the corresponding Enter value is displayed, and then press and hold the button for at least one second. ______________________________________________________________________________________ http://www.microprogel.it info@microprogel.it...
-
Page 7: Sect. 3) Selecting The Cycle From The 56 User (Pers) And 9 Pre-Configured (Fix) Cycles
MicroPROGEL ______________________________________________________________________________________ Sect. 3) Selecting the cycle from the 56 user (PERS) and 9 pre-configured (FIX) cycles The controller features 56 custom cycles, called user cycles, and 9 pre-configured cycles, called fixed cycles. Select Prog. Press the button until the PERS light turns on, if the desired cycle is in the user group. - Page 8 MicroPROGEL ______________________________________________________________________________________ The new cycles entered or the modifications made to the previously entered cycles in the user cycle group are stored permanently, even when the controller is off. The modify cycle procedure can also be accessed when the controller is in START mode.
-
Page 9: Sect. 5) Running A Cycle
MicroPROGEL ______________________________________________________________________________________ press to increase the value displayed or to decrease it, until the temperature displayed is 700°C, flashing Enter press the controller prompts the time for the fourth time/setpoint pair (STEP no. 3) press until the time displayed is 00:00, flashing... -
Page 10: Sect. 7) Setting The Timer For The Delayed Running Of The Cycle
MicroPROGEL ______________________________________________________________________________________ this point, the “TIME” light turns on, the decimal between the hour and minute digits will START STOP flash, and the lights to the sides of the button will blink. When the time has elapsed, the controller will automatically start the selected cycle, by going into “START”... -
Page 11: Sect. 8) Troubleshooting
MicroPROGEL ______________________________________________________________________________________ Sect. 8) Troubleshooting When running a cycle the controller may signal one of the errors listed in the table below. ERROR CODE CAUSE SOLUTION DISPLAYED ER21 Hardware fault Contact the installer. ER22 Reserved Contact the installer. ER23 Reserved.
