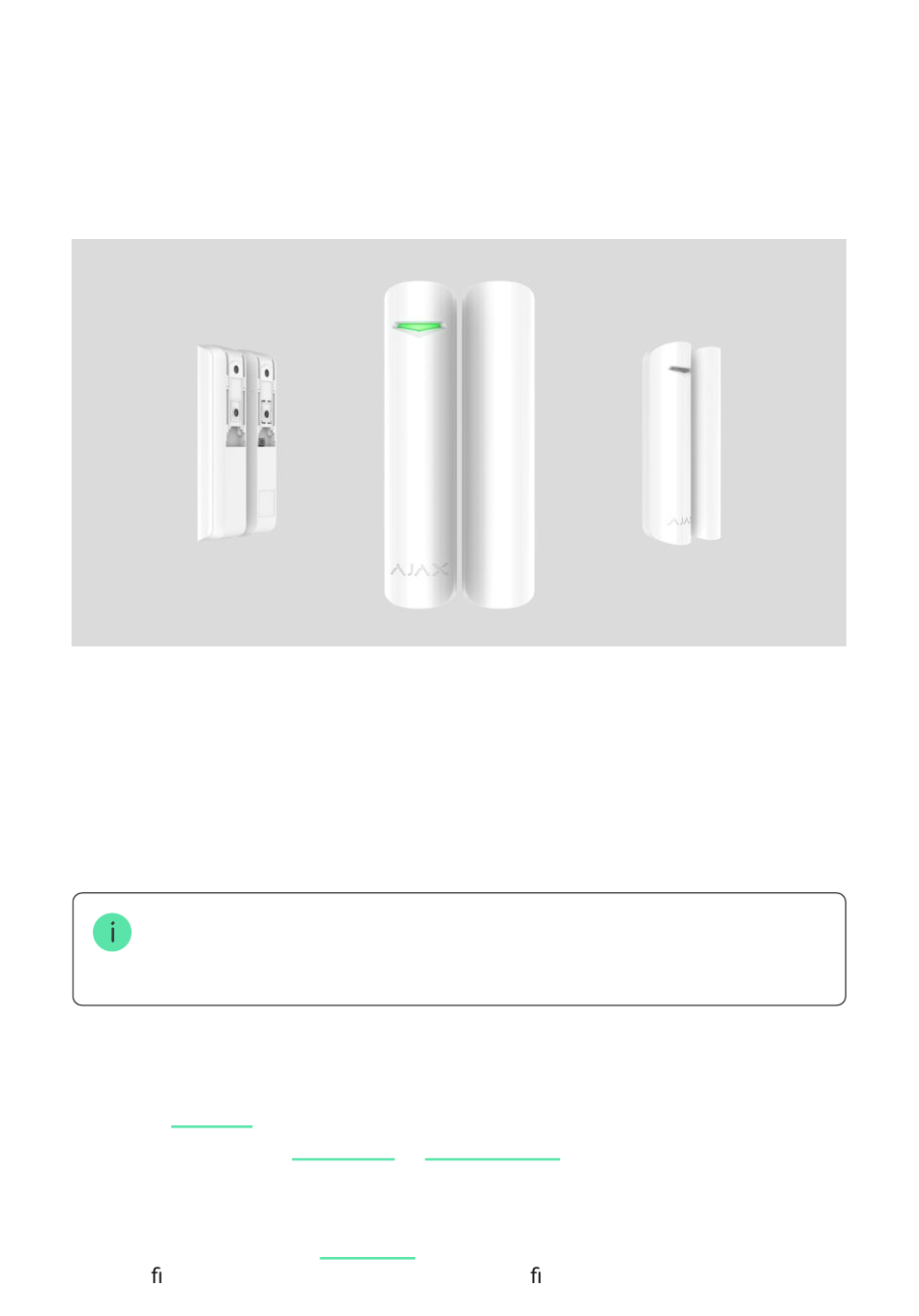

DoorProtect User Manual
DoorProtect is a wireless door and window opening detector designed for
indoor use. It can operate up to 7 years from a pre-installed battery and capable
to detect more than one million openings. DoorProtect has a socket for
connecting an external detector.
The functional element of DoorProtect is a sealed contact reed relay. It consists of
ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect
of a constant magnet.
DoorProtect operates within the Ajax security system, connecting via the
protected
Jeweller
line of sight. Using the
DoorProtect can be used as part of third party security systems.
The detector is set up via
app noti es user of all events through push noti cations, SMS and calls (if
activated).
Updated June 30, 2020
radio protocol. Communication range is up to 1,200 m in the
uartBridge
or
ocBridge Plus
Ajax apps
for iOS, Android, macOS and Windows. The
integration modules,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect and is the answer not in the manual?

Questions and answers

Summary of Contents for Qvis DoorProtect

  • Page 1 DoorProtect has a socket for connecting an external detector. The functional element of DoorProtect is a sealed contact reed relay. It consists of ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect of a constant magnet.

  • Page 2: Functional Elements

    The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy opening detector DoorProtect Functional Elements 1. DoorProtect 2. Big magnet 3. Small magnet 4. LED indicator 5. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the detector.
  • Page 3 DoorProtect consists of two parts: the detector with a sealed contact reed relay, and the constant magnet. Attach the detector to the door frame, while the magnet can be attached to the moving wing or sliding part of the door. If the sealed contact reed relay is within the coverage area of the magnetic eld, it closes the circuit, which means thatthe detector is closed.
  • Page 4 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room. 3. Select Add — the countdown will begin. 4. Switch on the device. For detection and pairing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object).
  • Page 5 36 seconds. Connecting to Third-Party Systems To connect the detector to a third-party security central unit using the uartBridge ocBridge Plus integration modules, follow the recommendations in the user manual of the respective device. States 1. Devices 2. DoorProtect...
  • Page 6 Routed Through Rex radio signal range extender Primary Detector The primary detector status The status of the external detector connected Secondary Detector to DoorProtect If active, the detector is always in the armed Always Active mode Firmware The detector rmware version...
  • Page 7 Setting Up 1. Devices 2. DoorProtect 3. Settings Setting Value First eld The detector name, can be edited...
  • Page 8 Delay turned on when using night mode If active, the detector will switch to the armed Arm in Night Mode mode when using the night mode If active, DoorProtect primarily reacts to Primary Detector opening/closing If active, the detector registers external detector External Сontact Enabled...

  • Page 9: Functionality Testing

    Attenuation Test Installing the Detector Selecting the location Location of DoorProtect is determined by its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted oors, large objects located within the room.
  • Page 10 The distance between the magnet and detector should not exceed 1 cm. When positioning the parts of DoorProtect in the same plane, use the big magnet. Its actuation threshold — 2 cm. Attach the magnet to the moving part of the door (window) to the right of the detector.
  • Page 11 Double-sided adhesive tape may be only used for temporary attachment. The tape will run dry in the course of time, which may result in falling of DoorProtect and actuation of the security system. Furthermore, the device may fail from a hit.
  • Page 12 4. closer than 1 m to the hub. Connecting a Third-Party Wired Detector A wired detector with the NC contact type can be connected to DoorProtect using the outside-mounted terminal clamp. We recommend to install a wired detector at a distance not exceeding 1 meter –...

  • Page 13: Tech Specs

    If the door opens 10 times a day and the ping interval is 60 seconds, then DoorProtect will operate up to 7 years from the pre-installed battery. Setting the ping interval of 12 seconds, you will reduce the battery life to 2 years.

  • Page 14: Complete Set

    Security Grade 2, Environmental Class II in Certi cation conformity with the requirements of EN 50131- 1, EN 50131-2-6, EN 50131-5-3 Complete Set 1. DoorProtect 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) 4. Big magnet 5. Small magnet 6. Outside-mounted terminal clamp...

  • Page 15: Warranty

    7. Installation kit 8. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
