Summary of Contents for Znewtech Digital Column Bathroom Scale
- Page 1 Digital Column Bathroom Scale User Manual Z N E W T E C H...

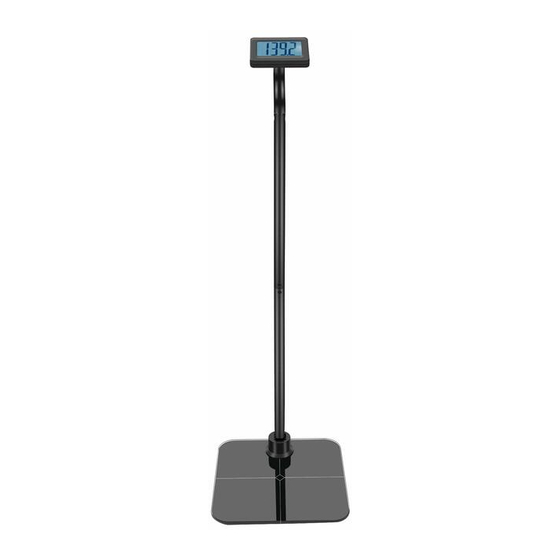

- Page 2 Getting to know your Znewtech Scale LCD Display Screws Stand Pole Wire Connectors Pole Connector Stand Pole Stand Base Scale Platform...
-
Page 3: Parts Listing
Step-by-Step Assembly Instructions Parts Listing: Scale Base (1 Unit) Stand poles (2 Units) Display (1 Unit) Screws (6 Units) Pole Connector (1 Unit) Required Tool: Philips screwdriver (not included) Assembly will take 10-20 minutes... - Page 4 Lay down all the parts on the floor as shown below Two screw holes ends Single screw hole ends Both single screw holes need to face down...
- Page 5 Connect a stand pole with the stand base Run the wire from stand base through a stand pole Align the two screw holes on the stand pole with the two slots on the stand base, and push the stand pole into the stand base firmly.
- Page 6 Connect a stand pole with the scale display Run the wire from scale display through a stand pole The single screw hole faces down Align the two screw holes on the stand pole with the two slots on the display, and push the stand pole into the display firmly.
- Page 7 Insert the pole connector and connect two wires Align the slot on the pole connector Connect the two wires with the screw hole on the stand together pole , and push the pole connector into the stand pole firmly...
- Page 8 Connect two stand poles together Push the stand pole into the pole connector firmly...
-
Page 9: Install Batteries
Install batteries Install 4 AAA batteries into the battery compartment on the bottom of scale platform... -
Page 10: Finish Assembly
Hold up the scale to 3) Reinstall batteries stand-up position and Screw fasten all 6 screws Screw Need Help? support@znewtech.com Screw Screw Use the scale on a hard, level and even surface (no carpeting). Inconsistent and soft surfaces will cause inaccurate measurements. -
Page 11: Setting Units
Setting Units 1. Press the Unit Set Switch located on the back of the scale LCD Display to select the unit (kg/lb/st) that you want to set. The stone (st) is a unit of measure equal to 14 pounds (lb) avoirdupois, or 6.3503 kilograms (kg). -
Page 12: Measuring Your Weight
Measuring Your Weight 1. Place the scale on the hard and flat surface. 2. Step on the scale platform, the scale stand pole can be tilted forward up to 15°. Remain still and the scale will count up to your weight. The display will flash twice when the weight is locked. -
Page 13: Maintenance
12" x 12" (31 cm x 31 cm) Scale Height: 40 " (100 cm) Low Battery and Overload Indication Warranty Support One-Year Limited Warranty Please visit our website www.znewtech.com for more information about the product. Contact us for questions or returns: support@znewtech.com Contact us at support@znewtech.com.
