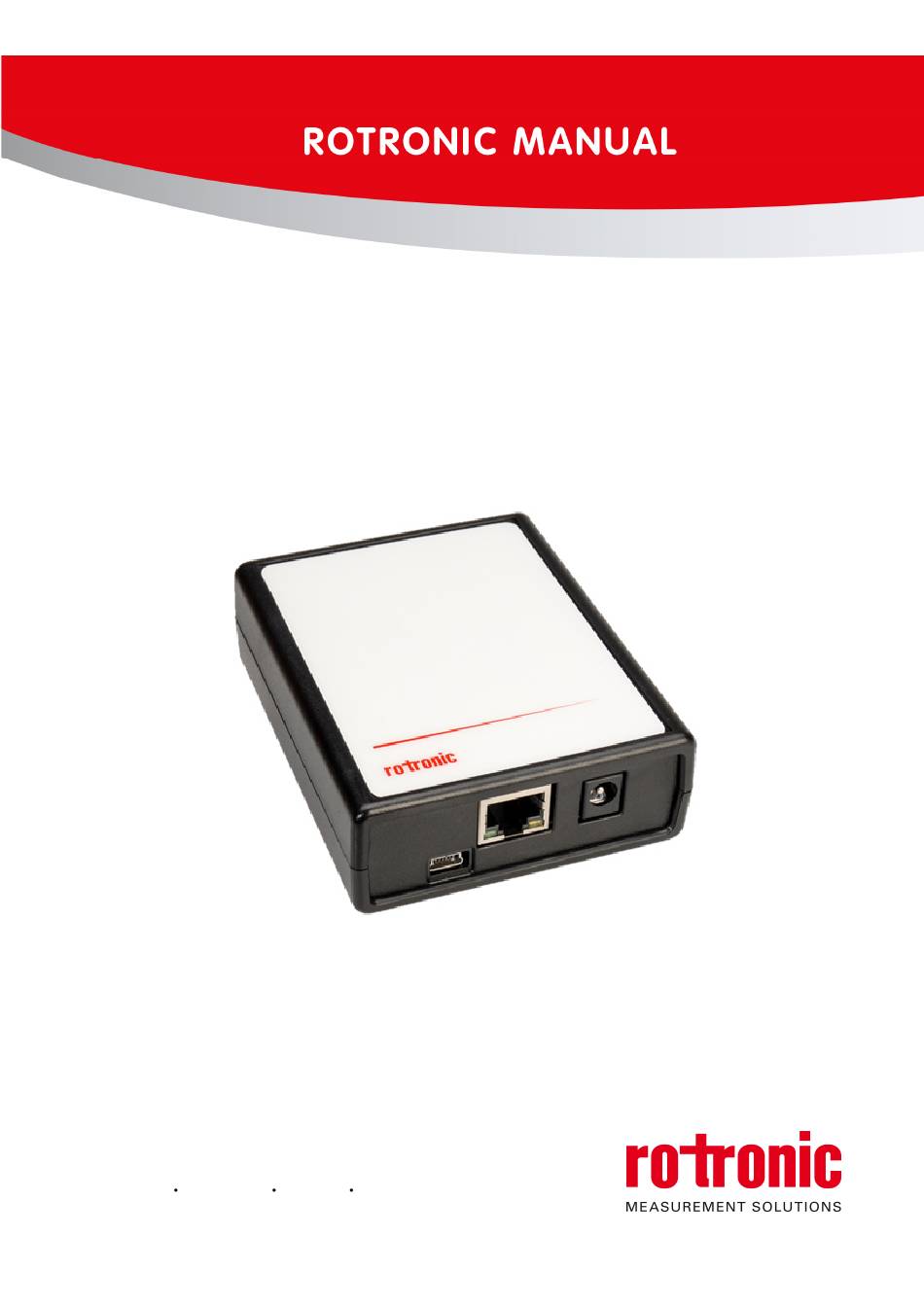

RMS-CONVERTER
© 2017 ROTRONIC AG Bassersdorf Switzerland

Advertisement

Table of Contents
loading

Summary of Contents for Rotronic RMS-CONVERTER

  • Page 1 RMS-CONVERTER © 2017 ROTRONIC AG Bassersdorf Switzerland...

  • Page 2: Table Of Contents

    Configuration via RMS CONFIG software ..................12 Pairing of the RMS-CONVERTER ..................... 13 Settings of the RMS-CONVERTER ....................15 Integration of the RMS-CONVERTER into RMS ................16 Firmware update ..........................18 Firmware update via RMS ........................18 Firmware update with RMS CONFIG ....................19 Integration of Rotronic conventional products into RMS ..............
  • Page 3 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Additional Documents ........................125 Document Version ..........................126 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 3 of 126...

  • Page 4: Overview

    RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Scope: This manual is valid for the RMS-Converter Firmware Version V1.3. The small digit represents small changes, bug fixes etc. that do not influence main functions of the device. Overview 1.1 RMS System Overview The Rotronic Monitoring System RMS is a network of various devices and RMS server software. The software represents the core piece of the whole RMS.

  • Page 5: Device Overview

    Gateway The gateway is the connecting element between Ethernet and wireless network and forwards the data flow from the loggers to the data centre. Except for the Mini Logger © 2018 ROTRONIC AG Bassersdorf Switzerland Page 5 of 126...

  • Page 6: Rms-Converter

    2.5 MS SQL database 2.5.1 Data logging The values of every measurement are saved in the memory with the time stamp. The RMS-CONVERTER logs data within the onboard MS SQL database. In case of a communication interruption between the RMS server software and the RMS-CONVERTER, the data will be stored for a maximum of 7 days.

  • Page 7: Rtc (Real Time Clock)

    2.6 RTC (Real Time Clock) The RMS-CONVERTER can only log with the correct time stamp synchronized to UTC. In case of a power interruption on the RMS-CONVERTER, during the restart, it will first synchronize its time with the RMS server UTC.

  • Page 8: Measurement Interval

    RMS. Note: If an interval change is required, the RMS-CONVERTER and all devices added via the RMS- CONVERTER should be deleted and added again. When the RMS-CONVERTER is deleted from RMS, all of the measurement and device data are also deleted.
  • Page 9 IP configuration whenever possible. ► RMS Web Server settings The RMS-CONVERTER has the server address and software path of the RMS server software stored in it in order to build up communication with the RMS server software.

  • Page 10: Installation And Configuration

    If the RMS-CONVERTER is configured with a fixed IP address, the device can be accessed by typing the IP address into the web browser (example: http://192.168.0.1). © 2018 ROTRONIC AG Bassersdorf Switzerland...
  • Page 11 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Figure 3: Login to the RMS-CONVERTER via web browser. There is a default user and password specified for the RMS-Converter: Default user: rotronic  Default password: rmsconv  Recommendation: change the password for security reasons. Note: should the password be forgotten, simply unplug the device and replug it in: the default login is vaild for 10 minutes.

  • Page 12: Configuration Via Rms Config Software

    RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 3.3 Configuration via RMS CONFIG software The RMS-CONVERTER can also be configured with the RMS CONFIG software, a configuration software tool that can be downloaded from www.rotronic.com. Step 1 Search for network devices: Step 2 Select the RMS-CONVERTER via the Add button...

  • Page 13: Pairing Of The Rms-Converter

    3.4 Pairing of the RMS-CONVERTER The RMS-CONVERTER will be paired either with an on premise server or with the Rotronic cloud server, this is to be selecting in the pairing page. In the case of an on premise server, the IP address of the server is required.
  • Page 14 Instruction Manual E-M-RMS-Converter-V1_4.docx Figure 5: Select Modus before connecting the RMS-CONVERTER to the Rotronic cloud server. Figure 6: Select Modus before connecting RMS-CONVERTER to an on premise server. Once paired, the paired box will be ticked. From this moment on, no changes are possible on the RMS- CONVERTER as it is integrated into RMS.

  • Page 15: Settings Of The Rms-Converter

    E-IM-RMS-WEB IMPORTANT: For a successful integration of the RMS-CONVERTER into RMS, the network port 80 must be opened. The RMS-CONVERTER must be able to send data to the RMS server (on premise or cloud): In case of an active DHCP: A DHCP server must supply an IP address automatically.

  • Page 16: Integration Of The Rms-Converter Into Rms

    Instruction Manual E-M-RMS-Converter-V1_4.docx Integration of the RMS-CONVERTER into RMS The RMS-CONVERTER is integrated into RMS with the following 6 steps. Login into the RMS Software > Tools > Setup > Devices > New > LAN device. Step 1 Type the serial number of the RMS Converter and click <OK>.
  • Page 17 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx A token will be given to the RMS-CONVERTER. Click <Pair> and change back to the browser tab Devices – RMS Setup. Step 4 Configure the device further (device name, interval, group) Step 5 The configuration / integration of the RMS Converter is finished.

  • Page 18: Firmware Update

    E-M-RMS-Converter-V1_4.docx Firmware update The RMS-CONVERTER firmware update can be done either via RMS or with the RMS CONFIG software. The actual version of the firmware can be found at www.rotronic.com. IMPORTANT: In order to carry out a firmware update the RMS-CONVERTER must be disabled within RMS.

  • Page 19: Firmware Update With Rms Config

    Step 1: Add the RMS-CONVERTER to RMS CONFIG: Device>Search>Network devices.  Step 2: Choose the device and select <Add>.  Step 3: The login window of RMS CONFIG appears, default User: rotronic; default password:  rmsconv. Figure 14: Firmware update in RMS Config.
  • Page 20 Figure 15: Firmware update in RMS Config. Step 5: A dialog window open, select the .bin firmware and open.  Step 6: Firmware update complete.  Figure 16: Successful firmware update. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 20 of 126...

  • Page 21: Integration Of Rotronic Conventional Products Into Rms

    6.1.2 RMS and HW4 IMPORTANT: Rotronic recommends NOT to run HW4 and RMS in parallel (where devices are connected to both HW4 and RMS). Running both systems at the same time will result in timeouts, data gaps and other errors due to communication failure. As soon as HW4 is launched on a PC, it will automatically start the integrated search function for all devices that are on the network.
  • Page 22 The RMS-CONVERTER enables digital devices to be integrated into RMS, these digital devices may be stand alone, but also part of another network or system with another design. As such limitations exist in terms of device features and functions for communication stability and overall performance.

  • Page 23: Integration Of The Hf5 Transmitter Into Rms

    Instruction Manual E-M-RMS-Converter-V1_4.docx 6.1.5 Compatible devices within an RS485 network The RMS software and RMS-CONVERTER hardware are not compatible with RS485 networks. 6.2 Integration of the HF5 transmitter into RMS 6.2.1 Device description The HF5 is a transmitter with a HC2 probe input.
  • Page 24 Double click on http://SN12345678). the device: a web browser opens. Step 2 Log in for further network configuration: (default username: rotronic / default password: wlan). Step 3 Check or change the network settings: © 2018 ROTRONIC AG Bassersdorf Switzerland...
  • Page 25 Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Rotronic recommends using a fix IP address for the RMS-CONVERTER as well as for the digital devices. The reason being the support of the log function within the RMS-CONVERTER in case of any interruption to the RMS server.
  • Page 26 If the port is blocked then the device will renew/unblock the port by itself after the chosen timeout. This way a permanent timeout of the device will be avoided. The loss of data will be reduced significantly. For an RMS-CONVERTER interval of 60 seconds, a timeout of 10 to 30 seconds would be meaningful.
  • Page 27 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx © 2018 ROTRONIC AG Bassersdorf Switzerland Page 27 of 126...
  • Page 28 Instruction Manual E-M-RMS-Converter-V1_4.docx 6.2.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 28 of 126...
  • Page 29 IMPORTANT: If the field stays empty, RMS searches automatically. If the automatic search function is disabled, an IP address or a host name has to be typed into the field. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 29 of 126...
  • Page 30 IP address (there is no need to delete the device before adding it). The desired check marks can be set. And afterwards, the added or updated measurement points will appear. The device is added. Step 4 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 30 of 126...
  • Page 31 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Fix value humidity: disabled  Fix value temperature: disabled  Fix value if no probe is connected: disabled ...
  • Page 32 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 6.2.4 Functionality within RMS © 2018 ROTRONIC AG Bassersdorf Switzerland Page 32 of 126...
  • Page 33 E-M-RMS-Converter-V1_4.docx Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 34 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 34 of 126...
  • Page 35 Use the button <Acquire + Adjust> for one point adjustment.  Click <Delete user adjustment> to delete the last customer adjustment.  Step 3 Humidity 2 points acquired Humidity 2 points adjusted © 2018 ROTRONIC AG Bassersdorf Switzerland Page 35 of 126...
  • Page 36 RMS. Step 7 IMPORTANT: In case of an active fix value of one measurement value of a HC2, RMS will show “simulator connected” for both measurement values of the probe. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 36 of 126...

  • Page 37: Integration Of The Hf8 Transmitter Into Rms

    (e. g. the device: a web browser opens- http://192.178.1.1) or http://hostname (e. g. http://SN12345678). Step 2 Log in for further network configuration: (default username: rotronic / default password: wlan) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 37 of 126...
  • Page 38 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Step 3 Check or change the network settings: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 38 of 126...
  • Page 39 Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Rotronic recommends using a fix IP address for the RMS-CONVERTER as well as for the digital devices. The reason being the support of the log function within the RMS-CONVERTER in case of any interruption to the RMS server.
  • Page 40 E-M-RMS-Converter-V1_4.docx This way a permanent timeout of the device will be avoided. The loss of data will be reduced significantly. For an RMS-CONVERTER interval of 60 seconds, a timeout of 10 to 30 seconds would be meaningful. © 2018 ROTRONIC AG Bassersdorf Switzerland...
  • Page 41 Instruction Manual E-M-RMS-Converter-V1_4.docx 6.3.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 41 of 126...
  • Page 42 IMPORTANT: If the field stays empty, RMS searches automatically. If the automatic search function is disabled, an IP address or a host name has to be typed into the field. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 42 of 126...
  • Page 43 IP address (there is no need to delete the device before adding it). The desired check marks can be set. And afterwards, the added or updated measurement points will appear. The device is added. Step 4 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 43 of 126...
  • Page 44 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Fix value humidity: disabled  Fix value temperature: disabled  Fix value if no probe is connected: disabled ...
  • Page 45 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 6.3.4 Functionality within RMS © 2018 ROTRONIC AG Bassersdorf Switzerland Page 45 of 126...
  • Page 46 Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Step 1 Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 47 IMPORTANT: The output range, the sources and the measurement ranges of the analog outputs 1 and 2, can be scaled and stored within the device clicking <Apply>. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 47 of 126...
  • Page 48 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 48 of 126...
  • Page 49 Use the button <Acquire + Adjust> for one point adjustment.  Click <Delete user adjustment> to delete the last customer adjustment.  Step 3 Humidity 2 points acquired Humidity 2 points adjusted © 2018 ROTRONIC AG Bassersdorf Switzerland Page 49 of 126...
  • Page 50 5’000min ≈ 83h ≈ 3.5d  2 Hygroclip connected or 20’000min ≈ 333h ≈ 14d  1 Analog input used This time can be increased by using a higher log interval. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 50 of 126...
  • Page 51 RMS. Step 7 IMPORTANT: In case of an active fix value of one measurement value of a HC2, RMS will show “simulator connected” for both measurement values of the probe. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 51 of 126...

  • Page 52: Integration Of The Pf4 Transmitter Into Rms

    (e. g. the device: a web browser opens- http://192.178.1.1) or http://hostname (e. g. http://SN12345678)- Step 2 Log in for further network configuration: (default username: rotronic / default password: wlan) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 52 of 126...
  • Page 53 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Step 3 Check or change the network settings: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 53 of 126...
  • Page 54 Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Rotronic recommends using a fix IP address for the RMS-CONVERTER as well as for the digital devices. The reason being the support of the log function within the RMS-CONVERTER in case of any interruption to the RMS server.
  • Page 55 If the port is blocked then the device will renew/unblock the port by itself after the chosen timeout. This way a permanent timeout of the device will be avoided. The loss of data will be reduced significantly. For an RMS-CONVERTER interval of 60 seconds, a timeout of 10 to 30 seconds would be meaningful.
  • Page 56 Instruction Manual E-M-RMS-Converter-V1_4.docx 6.4.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 56 of 126...
  • Page 57 IMPORTANT: If the field stays empty, RMS searches automatically. If the automatic search function is disabled, an IP address or a host name has to be typed into the field. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 57 of 126...
  • Page 58 IP address (there is no need to delete the device before adding it). The desired check marks can be set. And afterwards, the added or updated measurement points will appear. The device is added. Step 4 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 58 of 126...
  • Page 59 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Fix value humidity: disabled  Fix value temperature: disabled  Fix value differential pressure: disabled ...
  • Page 60 Functionality within RMS Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 61 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 61 of 126...
  • Page 62 Type 0 as the reference value and click <Acquire + Adjust> (or <Acquire> and then <Adjust>) Note: A new 0-Point compensation overwrites the previous 0-Point compensation, but does not overwrites the current One point (≠0Pa) adjustment (see below). © 2018 ROTRONIC AG Bassersdorf Switzerland Page 62 of 126...
  • Page 63 Note: The real date and reference value cannot be shown due to missing compatibility of these systems. One point (≠0Pa) adjustment The PF4 can be adjusted at an applied pressure (≠0Pa) by the customer. Rotronic recommends to apply a pressure around the end of the measurement range. One point (≠0Pa) adjustment at the RMS: Type xxPa as the reference value and click <Acquire + Adjust>...

  • Page 64: Integration Of The Pf4/5 Transmitter Into Rms

    To add the PF4/5 into the RMS, it is necessary to setup the individual network configuration of the device as: DHCP active or fixed IP address  Host name  The PF4/5 default settings are: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 64 of 126...
  • Page 65  have a device internal webservice. 6.5.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland...
  • Page 66 IMPORTANT: If not all checkmarks for measurement points are set and it is wished to expand it later than please add the same device via the RMS-CONVERTER (with the same identification/IP address) again and set the new wished checkmarks. The added or updated measurement points will appear afterwards.
  • Page 67 Instruction Manual E-M-RMS-Converter-V1_4.docx The device is added. Step 4 IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Fix value humidity: disabled  Fix value temperature: disabled ...
  • Page 68 Functionality within RMS Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 69 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 69 of 126...
  • Page 70 0-point compensation. 0-Point compensation To compensate long term drift, a 0-Point compensation is recommended. Type in 0 as the reference value and click <Acquire + Adjust> (or <Acquire> and than <Adjust>) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 70 of 126...
  • Page 71 PF4/5. After the interruption, RMS requests the data from the RMS Converter. In case of a communication interruption between the RMS Converter and the PF4/5, the PF4/5 would not log the data. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 71 of 126...
  • Page 72 RMS. Step 7 IMPORTANT: In case of an active fix value of one measurement value of a HC2, RMS will show “simulator connected” for both measurement values of the probe. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 72 of 126...

  • Page 73: Integration Of The Crp5 Clean Room Panel Into Rms

    Prompt window -> ping hostname  Typing the host name into the address bar of the web browser does not work. The CRP5 does not  have a device internal webservice. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 73 of 126...
  • Page 74 Instruction Manual E-M-RMS-Converter-V1_4.docx 6.6.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 Select the device type in the drop down menu.
  • Page 75 IP address (there is no need to delete the device before adding it). The desired check marks can be set. And afterwards, the added or updated measurement points will appear. The device is added. Step 4 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 75 of 126...
  • Page 76 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Fix value humidity: disabled  Fix value temperature: disabled  Fix value differential pressure: disabled ...
  • Page 77 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 6.6.4 Functionality within RMS © 2018 ROTRONIC AG Bassersdorf Switzerland Page 77 of 126...
  • Page 78 Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Step 1 Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 79 IMPORTANT: The output range, the sources and the measurement ranges of the analog outputs 1 and 2, can be scaled and stored within the device clicking <Apply>. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 79 of 126...
  • Page 80 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 80 of 126...
  • Page 81 Note: Any differential pressure adjustment overwrites the previous customer adjustment. 0-Point compensation To compensate long term drift, a 0-Point compensation is recommended. Type in 0 as the reference value and click <Acquire + Adjust> (or <Acquire> and than <Adjust>) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 81 of 126...
  • Page 82 Note: The real date and reference value cannot be shown due to missing compatibility of these systems. One point (≠0Pa) adjustment The CRP5 can be adjusted at an applied pressure (≠0Pa) by the customer. Rotronic recommends to apply a pressure around the end of the measurement range. One point (≠0Pa) adjustment at the RMS: Type xxPa as the reference value and click <Acquire + Adjust>...
  • Page 83 Step 6 Fix values on the HC2: fixed measurement values programmed within the HC2 are not displayed as Step 7 simulators within RMS. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 83 of 126...

  • Page 84: Integration Of The Hl-Nt Data Logger Into Rms

    (e. g. the device: a web browser opens- http://192.178.1.1) or http://hostname (e. g. http://SN12345678). Step 2 Log in for further network configuration: (default username: rotronic / default password: wlan) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 84 of 126...
  • Page 85 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Step 3 Check or change the network settings: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 85 of 126...
  • Page 86 Instruction Manual E-M-RMS-Converter-V1_4.docx IMPORTANT: Rotronic recommends using a fix IP address for the RMS-CONVERTER as well as for the digital devices. The reason being the support of the log function within the RMS-CONVERTER in case of any interruption to the RMS server.
  • Page 87 If the port is blocked then the device will renew/unblock the port by itself after the chosen timeout. This way a permanent timeout of the device will be avoided. The loss of data will be reduced significantly. For an RMS-CONVERTER interval of 60 seconds, a timeout of 10 to 30 seconds would be meaningful.
  • Page 88 Instruction Manual E-M-RMS-Converter-V1_4.docx 6.7.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 88 of 126...
  • Page 89 IMPORTANT: If the field stays empty, RMS searches automatically. If the automatic search function is disabled, an IP address or a host name has to be typed into the field. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 89 of 126...
  • Page 90 The RMS would display measurement points without function. These notes are related to the limited compatibility of RMS and the HL-NT technology. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 90 of 126...
  • Page 91 The device is added. Step 4 IMPORTANT: Overwritten settings. By adding the device to RMS via the RMS-CONVERTER, the following configuration will be overwritten on the device: Alarm settings: will not be overwritten, but ignored by RMS. Meaning that local alarms ...
  • Page 92 6.7.4 Functionality within RMS Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send Step 1 any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 93 Measurement point settings: log into the RMS software. Select Tools > Setup > Measuring point. Select the measuring point. Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 93 of 126...
  • Page 94 Step 3 Note: For humidity multiple points can be acquired and adjusted. For temperature only 1 or 2 points. For Temperature only (HL-NT/HL-DS-PT4  Pt100 on input 4 and 5) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 94 of 126...
  • Page 95 Only a one point adjustment is possible. “User adjustment Date” will always display as “---“. “Reference” will always display “000”. The real date and reference cannot be shown due to missing compatibility of these systems. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 95 of 126...
  • Page 96 IMPORTANT: The HL-NT can log for a certain number of days. However, only the log values of the past 7 days can be added into RMS via the RMS-CONVERTER, all other data will be deleted! Sensor error: In case of one sensor error out of the two, RMS displays a sensor error for both measurement values.

  • Page 97: Integration Of Third Party Products Into Rms

    The RMS-CONVERTER enables digital devices to be integrated into RMS, these digital devices may be stand alone, but also part of another network or system with another design. As such limitations exist in terms of device features and functions for communication stability and overall performance.

  • Page 98: Integration Of The Rms-8Adc/4Rtd Transmitters Into Rms

    Note: RMS-8ADC/4RTD has no DHCP function and no host name. It can be addressed only by the fix IP address. Note: The Digi Device Discovery Tool does not work for the RMS-8ADC/4RTD. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 98 of 126...
  • Page 99 Open the transparent front cover of the RMS-8ADC/4RTD and press  the tiny button for approximately 10 seconds until the LED changes the light. Open a web browser and type in http://192.168.1.100 (the default IP  address is 192.168.1.100) © 2018 ROTRONIC AG Bassersdorf Switzerland Page 99 of 126...
  • Page 100 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Default log in: Username: Fact_user Password: Ract_pwd Step 2 Set the language: Network settings and system configuration: © 2018 ROTRONIC AG Bassersdorf Switzerland Page 100 of 126...
  • Page 101 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx © 2018 ROTRONIC AG Bassersdorf Switzerland Page 101 of 126...
  • Page 102 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx © 2018 ROTRONIC AG Bassersdorf Switzerland Page 102 of 126...
  • Page 103 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 7.2.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS- CONVERTER and click on <Add/Search> devices: Step 1 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 103 of 126...
  • Page 104 Note: Please take care that the correct device type is chosen. Because a current input type of the device can be added as a voltage input type (the opposite as well). © 2018 ROTRONIC AG Bassersdorf Switzerland Page 104 of 126...
  • Page 105 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx The device appears: configure accordingly. Step 3 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 105 of 126...
  • Page 106 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx © 2018 ROTRONIC AG Bassersdorf Switzerland Page 106 of 126...
  • Page 107 Note: if settings are changed with another software further to the initial installation into RMS, then RMS will not note the change. However, such a change would cause RMS to not work correctly. The device is added. Step 4 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 107 of 126...
  • Page 108 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 7.2.4 Functionality within RMS © 2018 ROTRONIC AG Bassersdorf Switzerland Page 108 of 126...
  • Page 109 E-M-RMS-Converter-V1_4.docx Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 110 Status: the measuring point can be disabled/enabled. Settings: Any settings can be changed and confirmed by clicking on <Save>. Step 2 Step 3 Adjustment: an adjustment of the RMS-8ADC/4RTD is not possible. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 110 of 126...

  • Page 111: Integration Of The Hl-Rc Data Logger Into Rms

    Ethernet or RS485 is necessary. The following devices can be integrated: HL-LAN-INTERFACE, HL-RC-B and HL-RC-T. Important: Please consult the HL-RC user manual as well as the HW4 manual for the HL-RC devices for further details. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 111 of 126...
  • Page 112 Note: The Digi Device Discovery Tool does not work for the HL-LAN-INTERFACE. Note: Rotronic recommends to use fix IP addresses for the RMS Converter as well as for the devices. The reason is the logging function of the RMS Converter in case of any interruption to the RMS.
  • Page 113 Instruction Manual E-M-RMS-Converter-V1_4.docx 7.3.3 Integration into RMS via the RMS-CONVERTER Log into the RMS software. Select Tools > Setup > Devices. Select the RMS-CONVERTER and click on <Add/Search> devices: Step 1 Select the device type in the drop down menu.
  • Page 114 IMPORTANT: If not all checkmarks for measurement points are set and it is wished to expand it later than please add the same device via the RMS-CONVERTER (with the same identification/IP address) again and set the new wished checkmarks. The added or updated measurement points will appear afterwards.
  • Page 115 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx 7.3.4 Functionality within RMS © 2018 ROTRONIC AG Bassersdorf Switzerland Page 115 of 126...
  • Page 116 E-M-RMS-Converter-V1_4.docx Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 117 Step 5 Sensor error within the HC2 will not be transmitted to RMS Measurement alarm: Alarms linked to the measurement limits and programmed within the HC2 will not be transmitted to RMS. Step 6 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 117 of 126...

  • Page 118: Integration Of The Lighthouse Apex R5 Data Logger Into Rms

    The Lighthouse Apex R5 is a particle counter that measures particle concentration with two channels and two measurement ranges. Important: Please consult the Apex R5 user manual for further details. © 2018 ROTRONIC AG Bassersdorf Switzerland Page 118 of 126...
  • Page 119 DHCP would only work permanently if the IP address would never be changed by the DHCP server. Rotronic recommends strongly to use the fix IP address for the device as well as for the RMS Converter.
  • Page 120 Select the device type in the drop down menu. It is possible to type the IP address or host name into the field IP address. IMPORTANT: If the field stays empty, RMS will not search automatically. Step 2 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 120 of 126...
  • Page 121 IMPORTANT: If not all checkmarks for measurement points are set and it is wished to expand it later than please add the same device via the RMS-CONVERTER (with the same identification/IP address) again and set the new wished checkmarks. The added or updated measurement points will appear afterwards.
  • Page 122 Functionality within RMS Device settings: log into the RMS software. Select Tools > Setup > Devices. Select the device. Status: the device can be disabled/enabled. When disabled, the RMS-CONVERTER will not send any requests. Settings: Any settings can be changed and confirmed by clicking on <Save>.
  • Page 123 Lighthouse Apex R5 would not log the data. Sensor error: If the particle concentration of the air is out of range of the device, RMS displays "Sensor error". Step 5 © 2018 ROTRONIC AG Bassersdorf Switzerland Page 123 of 126...

  • Page 124: Technical Specifications

    FDA / GAMP- directives FDA CFR21 Part 11 / GAMP5 Operating conditions Storage- and transport 0...50 °C / 0...90 %rF, not condensing Operation 0...50 °C / 0...90 %rF, not condensing © 2018 ROTRONIC AG Bassersdorf Switzerland Page 124 of 126...
  • Page 125 RMS-Converter Instruction Manual E-M-RMS-Converter-V1_4.docx Additional Documents Document Name Contents E-IM-RMS-WEB Instruction Manual: System Installation E-SM-RMS-WEB Instruction Manual: System Startup E-OM-RMS-WEB Instruction Manual: System Operation © 2018 ROTRONIC AG Bassersdorf Switzerland Page 125 of 126...
  • Page 126 V1_1 February2018 Revision V1_2 April 2018 1.6 Input / Outputs V1_3 October 2018 Complete review and update of the manual. V1_4 June 2018 RS485 network compatibility update (mainly Chapter 6.1.5). © 2018 ROTRONIC AG Bassersdorf Switzerland Page 126 of 126...
