M-16-05
LIFT CORPORATION Sht. 1 of 10 DSG#
Rev. A Date: 01/16/17
INSTRUCTION, BMR AUXILIARY CONTROL
GRAVITY DOWN CONTROL KIT, P/N 297080-11
POWER DOWN CONTROL KIT, P/N 297080-12

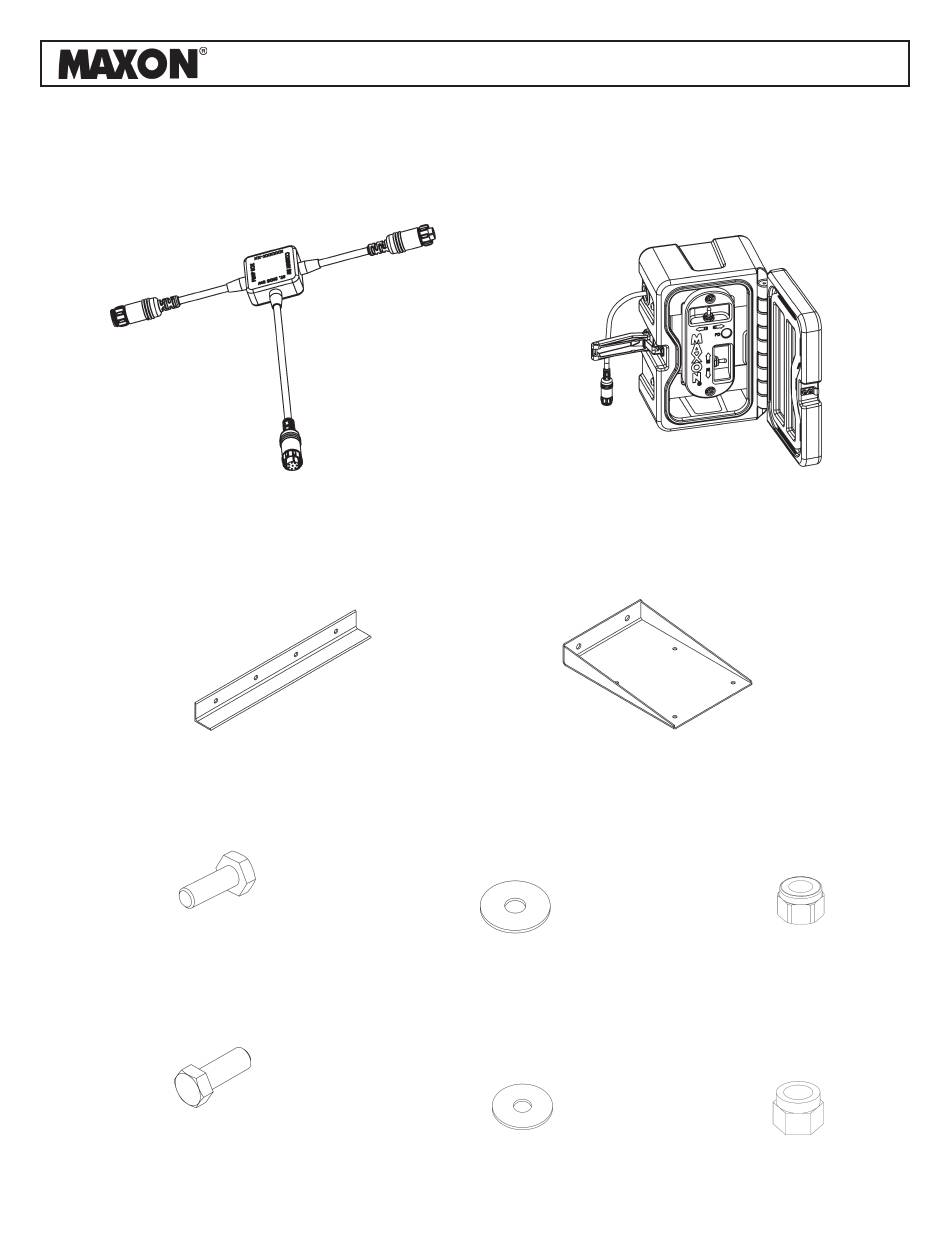

ELECTRICAL CONTROL TEE
PLASTIC ENCLOSURE WITH
P/N 296898-01
GRAVITY DOWN CONTROL (-11 KIT) OR
QTY. 1
POWER DOWN CONTROL (-12 KIT)
QTY. 1
ANGLE, 2" X 2" X 1/8" X 20" LG
ANGLE PLATE
P/N 263299
P/N 263264-01
QTY. 1
QTY. 1
CAP SCREW
WASHER, 1/4"
LOCK NUT, 1/4"-20
1/4"-20 X 1" LG, GRADE 8
P/N 903438-01
P/N 901000
P/N 900004-3
QTY. 8
QTY. 8
QTY. 4
HEX CAP SCREW
FLAT WASHER, 3/8"
3/8"-16 X 1" LG, GRADE 8
LOCK NUT, 3/8"-16
P/N 902001-2
P/N 900014-4
P/N 901002
QTY. 4
QTY. 2
QTY. 2
