WZ 1100 Ultrasonic Distance Meter Manual
Please read the manual carefully and familiarize yourself with the functions of the unit before
using it. Retain these instructions for future reference and pass them on together with the
devic e when you pass on the device to other users.
Scope of delivery:
1 x Ultrasonic Distance Meter
1 x Instruction manual
Product Overview

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WZ 1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Technoline WZ 1100

  • Page 1 WZ 1100 Ultrasonic Distance Meter Manual Please read the manual carefully and familiarize yourself with the functions of the unit before using it. Retain these instructions for future reference and pass them on together with the devic e when you pass on the device to other users.

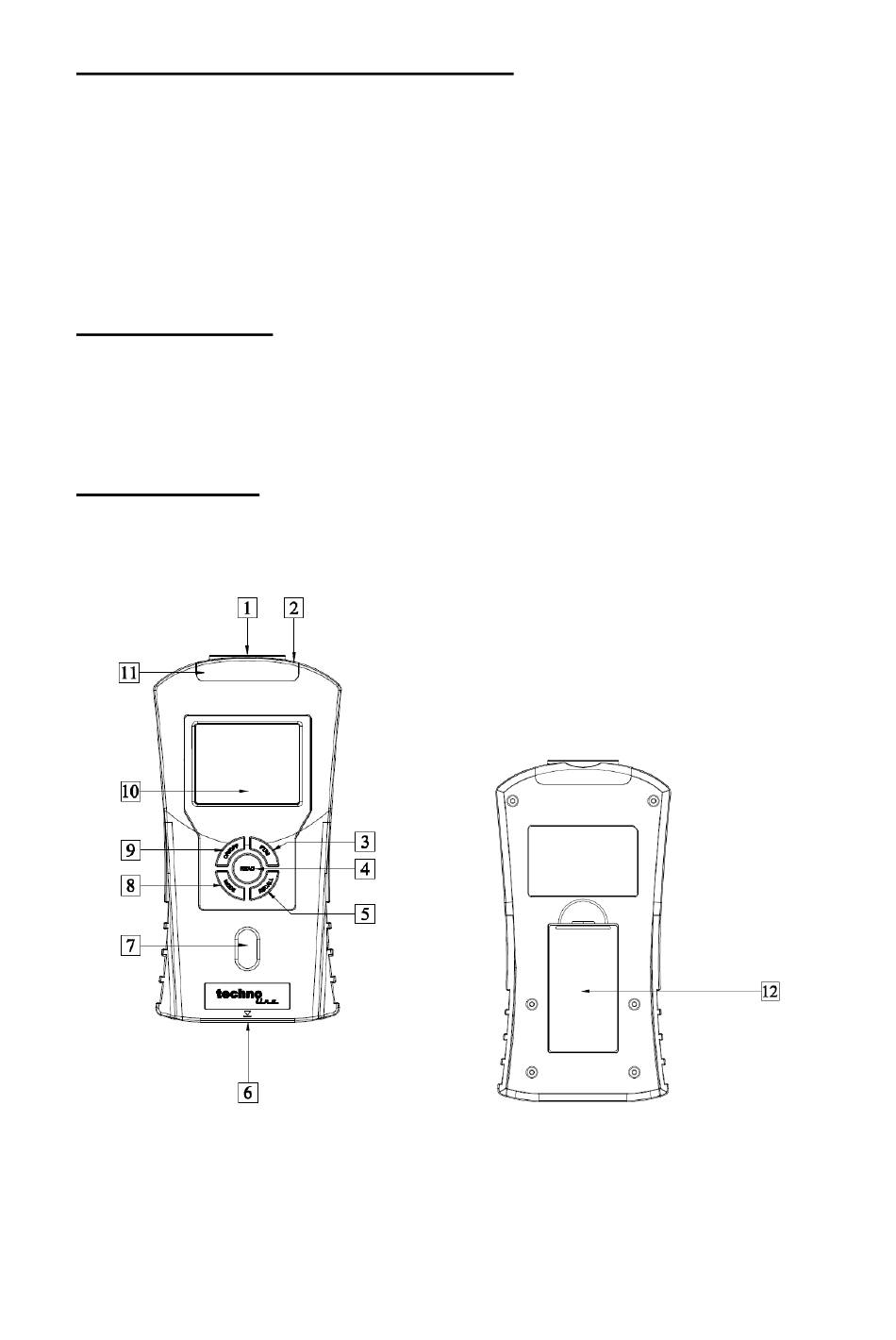

  • Page 2 1. Ultrasonic transmitter/receiver 7. Level indicat or 2. Temperature sensor 8. MODE button 3. FT/M button 9. ON / OFF button 4. READ button 10. Display 5. RECALL button 11. Laser diode 6. Referenc e area 12. Battery compartment cover Fig.A: Fig.

  • Page 3: Technical Data

    Technical Data Operating voltage: max. 9 V Battery type: 6LR61 (9 V block) Measuring range: 0.6 m – 16 m Measuring accuracy: +/- 1% Capacity display: up to 9999.99 Laser wave length: 635–660 nm, 1 mW Laser class: 2 Ultrasonic frequency: 40kHz Thermomet er measuring range: -10°C –...

  • Page 4: Before Using

     Use extreme caution when using the laser beam.  DO NOT point the laser towards yours elf, other people's eyes or animals.  DO NOT look directly into the laser beam. This can result in permanent eye damage if the eye's natural reflex to close does not take place.
  • Page 5  To switch the device off manually, hold the ON/OFF button pressed down for 3 seconds, until the display goes out and a double tone signal sounds.  Press the MODE button (8) repeatedly, until the display shows the symbol for length “...

  • Page 6: Measuring Surface Area

    length of 16 m.  The target area must have a smoot h surface, so that the ultrasound can be well reflected.  Transparent surfaces, such as glass, generally reflect the ultrasound.  The battery must not be empty. An empty battery is shown in the display (10) by the battery symbol ...

  • Page 7: Measuring Volume

     Press the ON/OFF button (9) to switch the device on.  Press the MODE button (8) repeatedly until the symbol for surface area measurement" “, as well as the designation 0.00 m (or 0‘00“), appear in the display (10) . The “...

  • Page 8: Displaying The Last Measured Values

     Align the device and press the READ button. If the measurement is successful, the width “ also will appear at the top of the display. The symbol for height measurement " flashes. The device displays in this way, that it is ready for the measurement of the height. ...
  • Page 9 shown in the top line of the display. Temperature display  Hold the FT/M button (3) pressed down for approx. 3 seconds. The current room temperature, in the official °C temperature unit, is shown in the display (10) .  In order to switch over to the °F temperature unit, press the FT/M button briefly.
  • Page 10  Avoid contact with any corrosive materials.  Do not dispose this unit in a fire as it may explode.  Do not open the inner back case or tamper with any components of this unit. Batteries safety warnings Don’t use rechargeable batteries. ...
