Binsfeld RT406-2C Instruction Manual

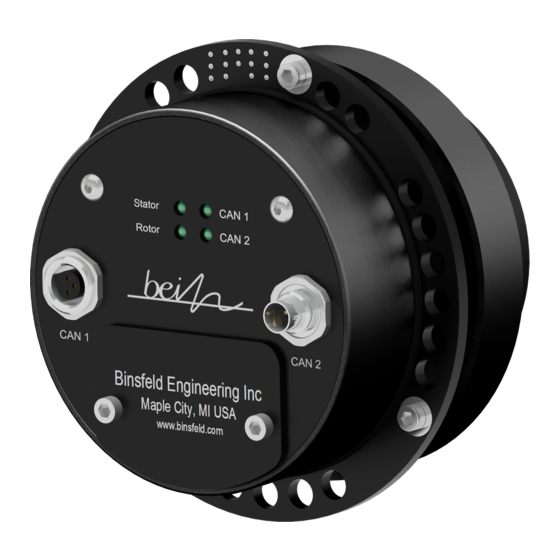

RT406-2C Rotary Temperature Transmitter (852-400)
The RT406-2C is a multi-channel temperature measurement system designed to
monitor and control temperature on heated godet roll shells. The system
features Dual CAN bus digital communication and is a drop-in replacement for
the 6-channel Neumag Multichannel Godet Controller used on Neumag S5 and
NPT machines.

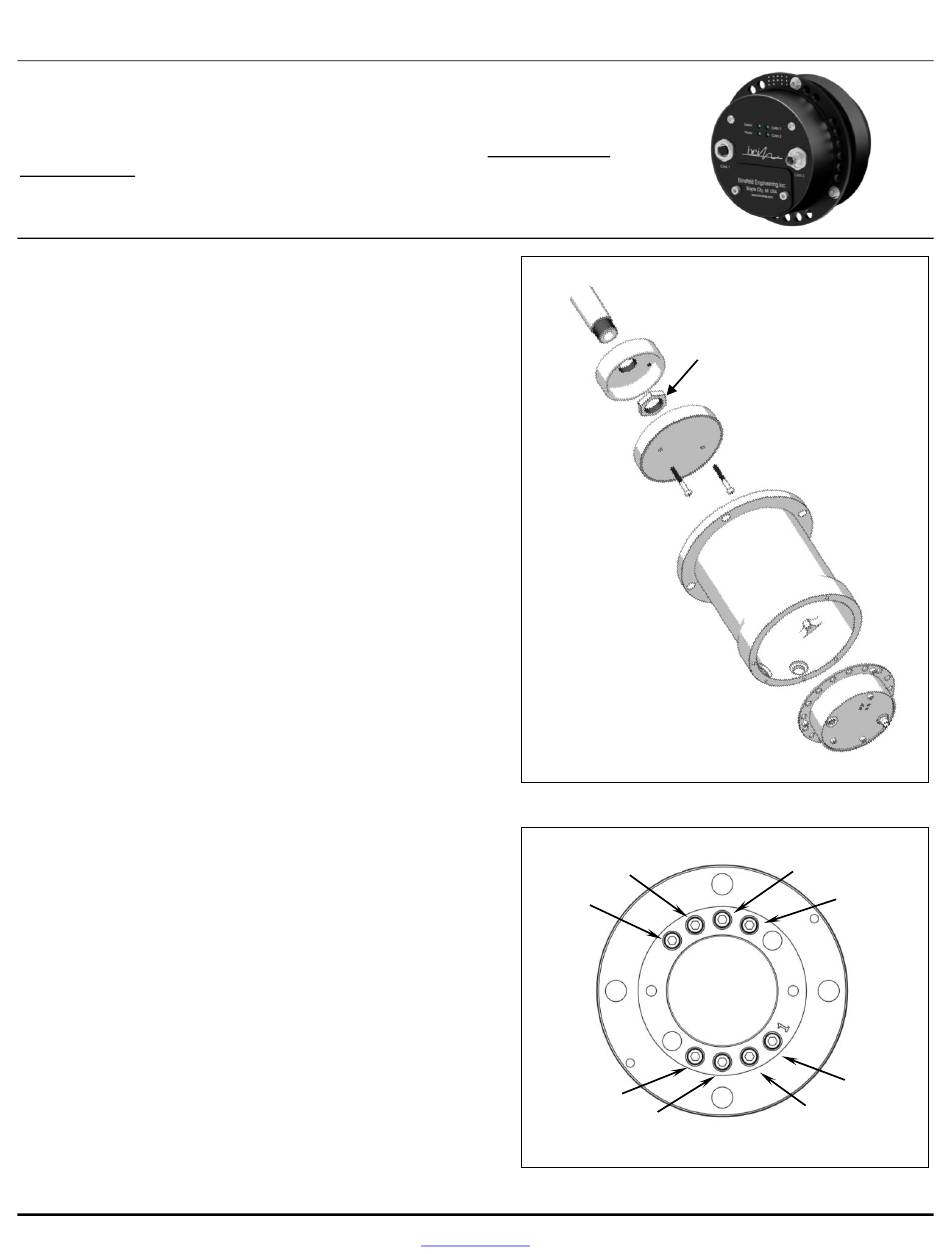

Installation

(Refer to diagram)
1. Disconnect cables and remove existing transmitter
system from motor, including stator, rotor, and rotor
base.
2. Remove cover, circuit board assembly, and connectors
from original Stator Housing.
3. Set DIP switches 1 thru 5 on the RT406 stator to match
the switch settings on the original stator circuit board.
4. Set DIP-switch 6 to the OFF position.
5. Install Binsfeld RT406 Stator Module in housing and
secure with three screws.
6. Remove RT406 Rotor Module from metal Rotor Base by
removing 2 screws.
7. Screw RT406 Rotor Base on motor shaft and secure
with original clamping nut.
8. Insert RTD leads in terminals on Rotor Module per
diagram below and secure firmly with setscrews.
9. Reinstall Rotor Module on Rotor Base (2 screws) with
RTD lead wires contained in base. (Binsfeld
recommends using removable Loctite 222MS or
equivalent to secure Rotor screws.)
10. Mount Stator Housing to motor. (Do not reinstall Stator
Housing cover.)
11. Connect CAN bus interface cables to Stator Module.
12. Strain relief cables with tie wraps.
13. Discard original cover, stator circuit board, rotor module,
and base.
