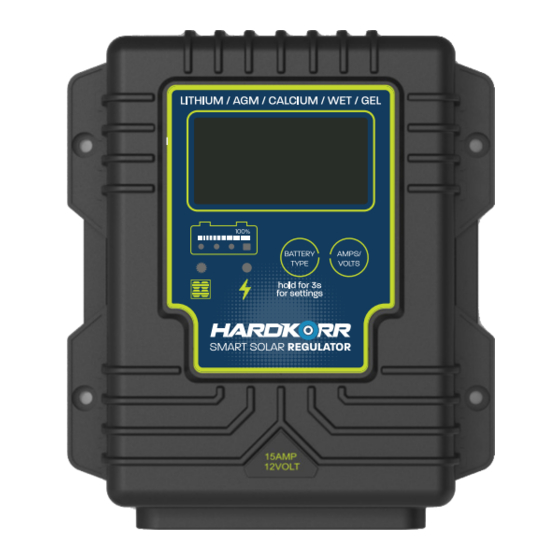

Summary of Contents for HARD KORR KOR12-10

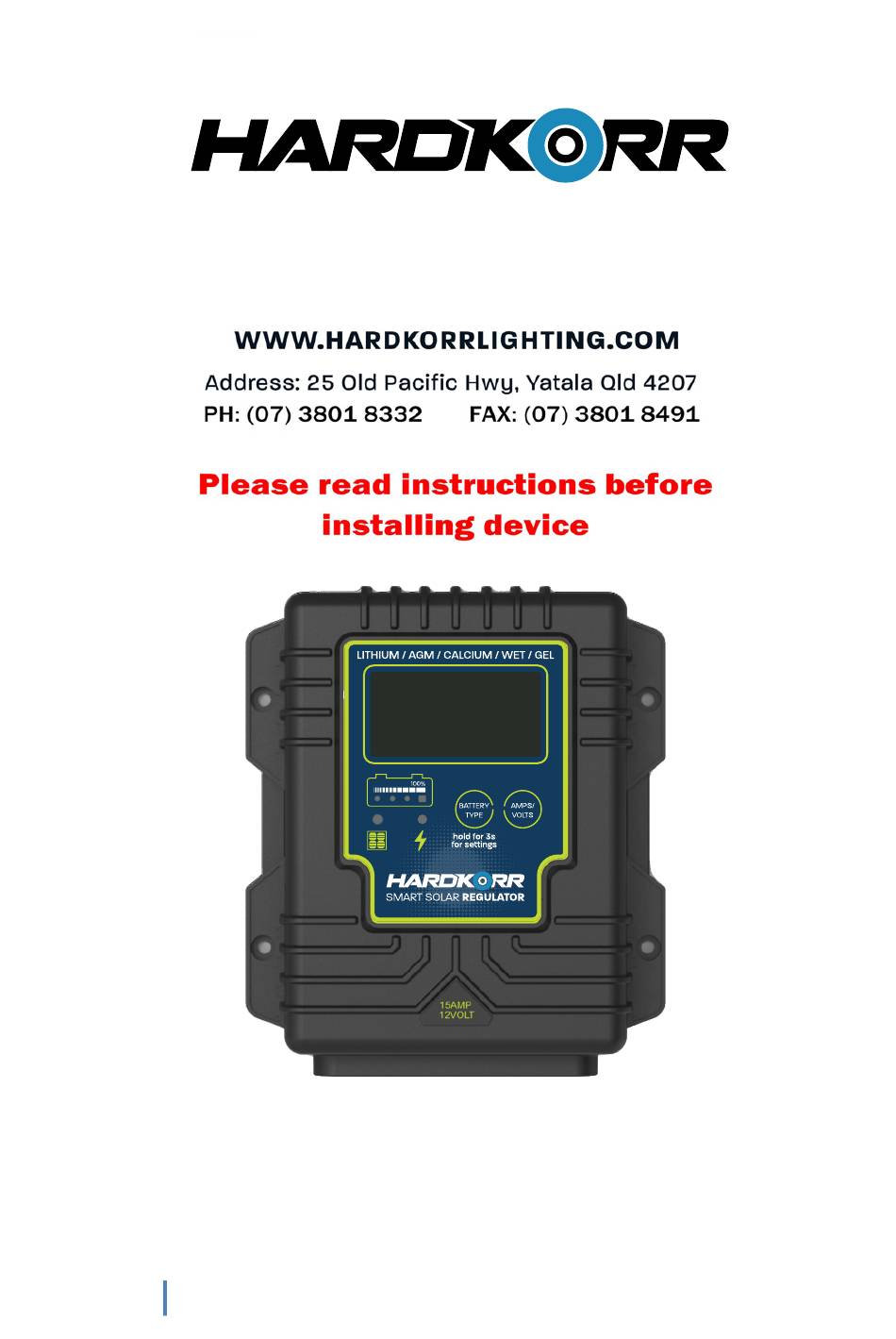

- Page 1 Solar Controller / Battery Charger User’s Manual...
- Page 2 We want you to be completely satisfied with your purchase so this HARD KORR solar controller is backed by our own 2 year warranty. If you require technical support regarding this product, please call (07) 3801 8332 or email info@korrlighting.com.au...
-
Page 3: Features And Advantages
● Make sure you connect the red to the positive on the battery and the black to the negative on battery ● Please double check before you connect, connecting to wrong terminals may burn out the controller ● Confirm that the power wires are tightened to the correct torque to avoid excessive heating from a loose connection. -
Page 4: Wiring Connections
WIRING CONNECTIONS The Solar Controller has 4 terminals which are clearly marked ‘Solar’ and ‘Battery’. There is a (12V) and earth (GND) terminal for each circuit. Refer to the wiring diagram as shown below, please cover the solar panel before connecting cables. - Page 5 When the connections are completed, the Solar Controller will start working automatically. OPERATION - LCD DISPLAY Please check your battery manufacturer’s specifications to select correct battery type. The unit provides 7 battery types for selections: Lithium-ion, LiFePO4, LTO, Gel, AGM, WET (conventional lead acid), and Calcium battery.
- Page 6 Press BATTERY TYPE button and hold for 3 seconds to go into your battery type selection mode, the battery type you select will be shown on the LCD meter, the default setting is AGM Battery; the controller will automatically memorize your battery type setting.
-
Page 7: Charging Stages
The VOLT / AMP button can be changed at any time during charging process. The LCD also can be treated as an independent voltage meter or thermometer. A voltage less than 11.5V Volts indicates that the battery is discharged and needs re-charging. -
Page 8: Led Indication
Float Charge or Re-Bulk charge - Battery is fully charged and maintained at a safe level. A fully charged Lead acid battery (GEL, AGM, WET and Calcium battery) has a voltage of more than 13.8 Volts; if the lead acid battery voltage drops to 12.8V at float mode, it will return to Bulk charge;... -
Page 9: Specifications
SPECIFICATIONS Electrical Parameters Rated solar panel amps 10/15/20 Max. Normal input Solar cell array voltage 15-22 Max. solar cell array voltage (output has no load) Max. The controller lowest operating voltage at solar or battery side Standby current consumption at night Maximum voltage drop-Solar panel to battery 0.25 Max. - Page 10 Operating temperature -25 ~ 50℃ / -13~122 ℉ Storage temperature -40 ~ 85℃ / -40~185 ℉ Operating Humidity range 100% no condensation Q. Can I connect this solar controller to an existing Anderson plug on my camper / caravan? A. Solar panel must connect directly to the battery - if you wish to connect your solar panel via Anderson plugs on camper trailer or caravan, you must bypass this controller.
