SM Pro Audio
Operating Manual - SM IN5
Version 1.0 Nov 2002
www.SMProAudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM IN5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SM Pro Audio SM IN5

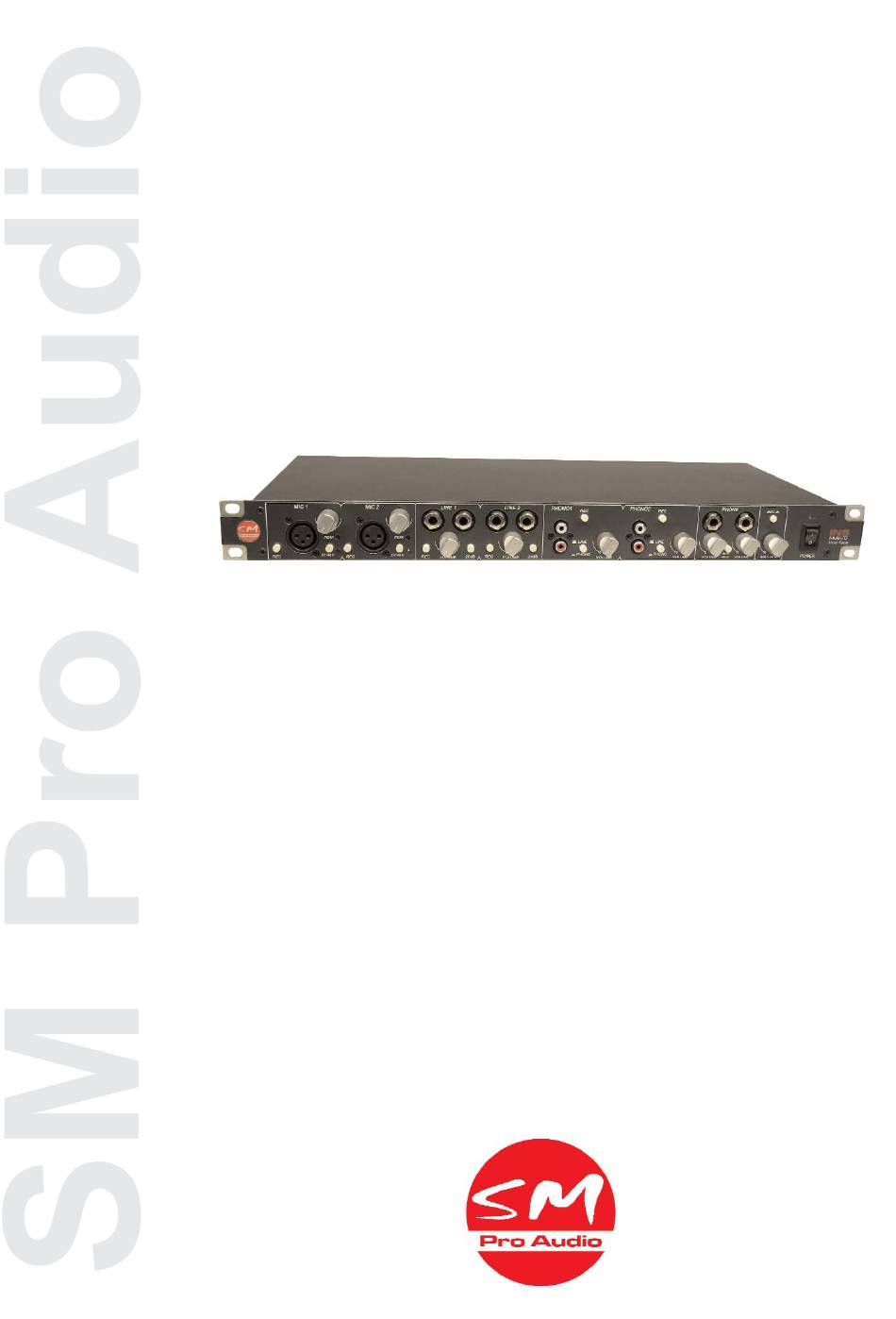

  • Page 1 SM Pro Audio Operating Manual - SM IN5 Version 1.0 Nov 2002 www.SMProAudio.com...
  • Page 2 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture.
  • Page 3 Thank you very much for expressing your confidence in SM ProAudio products by purchasing this unit. The SM IN5 has been designed to be used as a standard tool for home/pro studios. With much experience in the audio industry over a long period of time, and along with valuable suggestions from our customers, our engineers have developed a product we know you will be satisfied with.
  • Page 4: Table Of Contents

    6.2 The SM IN5 as a recording interface unit 6.3 The SM IN5 as a standard mixer 6.4 The SM IN5 as a converter for digital recorders (with optional USBMOD digital module) 7. FUTURE POSSIBLE OPTIONS 7.1 Information about the USBMOD S/PDIF Option board 8.
  • Page 5: Introduction

    1. INTRODUCTION Functionality - Versatility - Mix - Record - Monitor - Convert - Inject and Digitize!!! The new IN5 from SM Pro Audio covers a huge range of applications for use in the home/project studio. It is suitable for mixing various analog audio signals to a high quality recording output channel in either high quality low noise analog or pristine 24-bit 96 kHz S/PDIF Digital format (optional USB- MOD S/PDIF module).
  • Page 6: Installation

    3.1 Rack Mounting The SM ProAudio SM IN5 fits into one standard 19" rack unit of space (1 3/4"). Be sure that there is enough air space around the unit for cooling. As to avoid overheating, please do not place the SM IN5 on high temperature devices such as power amplifiers.
  • Page 7: L&R Stereo Unbalanced & Balanced Audio Outputs

    4.3 L & R Stereo Unbalanced & Balanced Audio Outputs The IN5 provides two types of analog output connections for you to connect to your monitoring device, unbalanced & balanced. These are to connect to your active monitor speakers, amplifier, or additional mixer device for you to listen to the output from the IN5.
  • Page 8: Front Panel Connections & Control Knobs/Switches

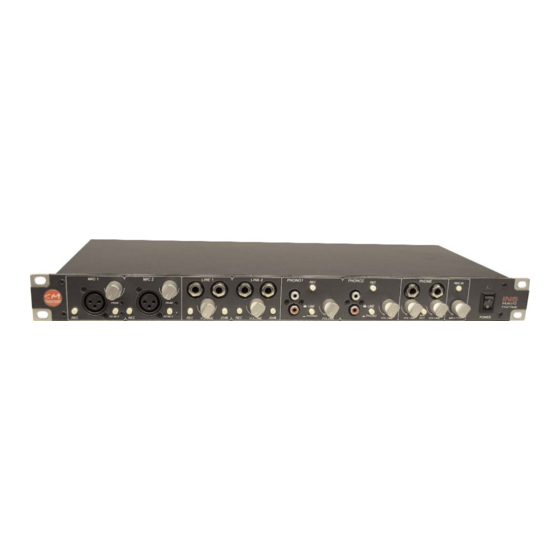

    5. FRONT PANEL CONNECTIONS & CONTROL KNOBS/SWITCHES SM IN5 front panel The SM IN5 has a multitude of audio connections and controls on the front panel. Please read the following information to understand these connections. 5.1 XLR Mic Input controls (2 x) Independent (2 x) rotary gain controls, switchable Phantom power, peak lights, and a record/monitor enable switch.
  • Page 9: Phono Input Controls ~ Independent (2 X) Rotary Volume Controls, Line/Phono Switch, And A

    5.3 Phono Input controls Independent (2 x) rotary volume controls, line/phono switch, and a record/monitor enable switch This is where you can connect up to two stereo phono/line level devices, control their input gain, and choose either to monitor the signal directly to your main outputs for monitoring, or to send the source to the REC outputs and subsequently to your recording device.
  • Page 10: Application Guide

    In the case of the turn-tables, a seperate phono pre-amp is also required to record your analog vinyl records to your PC for CD transfer. The SM IN5 has been designed to cator for many of these needs.
  • Page 11: The Sm In5 As A Standard Mixer

    Information about the USBMOD S/PDIF Option board The USBMOD is a 24-bit 96kHz digital option board for the SM IN5. It enables the IN5 to act as a high quality analog to digital and digital to analog converter unit. This is an extremely valuable tool for many applications in today’s studio.
  • Page 12: Specifications

    8. SPECIFICATIONS AUDIO INPUTS Connectors 1/4" jack TRS Balanced, XLR Balanced RCA Unbalaced Impedance 47k Ohms / 600Ohm Min Sensitivity -20dB Peak input level +16dB HEADPHONE OUTPUTS Connectors 1/4" jack Type Stereo, 1V RMS @ 32 Ohm STEREO LINE MIXER OUTPUTS Connectors 1/4”...
  • Page 13: Warranty

    SM ProAudio will then issue a return authorization number. 2. The product must be returned in its original shipping carton, together with the return authorization number, to the following address: SM Pro Audio Service Department W25, 26-28 Roberna St...
  • Page 14 4 WARRANTY REGULATIONS 1. Warranty services will be furnished only if the product is accompanied by an original retail dealer's invoice. Any product deemed eligible for repair or replacement by SM ProAudio under the terms of this warranty will be repaired or replaced within 30 days of receipt of the product at SM ProAudio.
  • Page 15 SM ProAudio. ALL RIGHTS RESERVED © 2002 SM ProAudio SM Pro Audio Service Department W25, 26-28 Roberna St Moorabbin...
