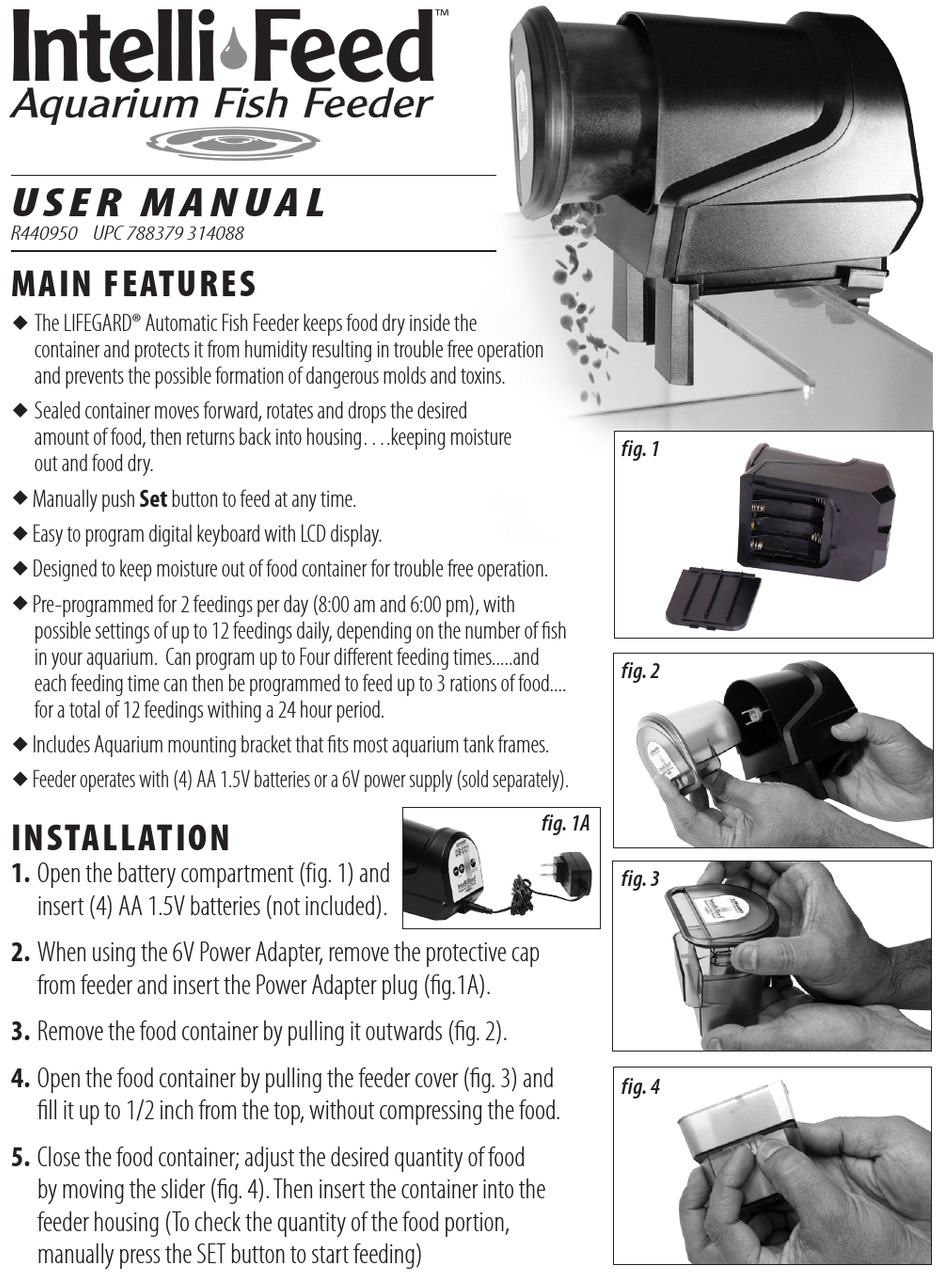

Lifegard Intelli Feed R440950 User Manual

U S E R M A N U A L
R440950 UPC 788379 314088

MAIN FEATURES

The LIFEGARD® Automatic Fish Feeder keeps food dry inside the
u
container and protects it from humidity resulting in trouble free operation
and prevents the possible formation of dangerous molds and toxins.
Sealed container moves forward, rotates and drops the desired
u
amount of food, then returns back into housing....keeping moisture
out and food dry.
Manually push Set button to feed at any time.
u
Easy to program digital keyboard with LCD display.
u
Designed to keep moisture out of food container for trouble free operation.
u
Pre-programmed for 2 feedings per day (8:00 am and 6:00 pm), with
u
possible settings of up to 12 feedings daily, depending on the number of fish
in your aquarium. Can program up to Four different feeding times.....and
each feeding time can then be programmed to feed up to 3 rations of food....
for a total of 12 feedings withing a 24 hour period.
Includes Aquarium mounting bracket that fits most aquarium tank frames.
u
Feeder operates with (4) AA 1.5V batteries or a 6V power supply (sold separately).
u

INSTALLATION

1. Open the battery compartment (fig. 1) and
insert (4) AA 1.5V batteries (not included).
2. When using the 6V Power Adapter, remove the protective cap
from feeder and insert the Power Adapter plug (fig.1A).
3. Remove the food container by pulling it outwards (fig. 2).
4. Open the food container by pulling the feeder cover (fig. 3) and
fill it up to 1/2 inch from the top, without compressing the food.
5. Close the food container; adjust the desired quantity of food
by moving the slider (fig. 4). Then insert the container into the
feeder housing (To check the quantity of the food portion,
manually press the SET button to start feeding)
fig. 1
fig. 2
fig. 1A
fig. 3
fig. 4
