Servo Amplifier - PCB Auxiliary (AUX) Load - Replacement - AD0263
Servo Amplifier - PCB Auxiliary (AUX) Load - Replacement
Introduction
AD0263
Applies to machines built from: January, 1996
Do this procedure to install the AUX load [3]
when you install a Smart Servo Amplifier [2]. The
replacement amplifier must have the same amp
rating as the servo amplifier [1] that you remove.
You must install the AUX load [3] on the
replacement Smart Servo Amplifier [2] if you have
these two conditions:
the machine has only one servo amplifier [1], the
replacement Smart Servo Amplifier must have
the AUX load [3].
Document Applies to these Parts
Page 1 of 2 pages
1. Servo Amplifier
2. Smart Servo Amplifier
3. Smart Servo Amplifier with AUX Load
• The machine has only two servo
amplifiers [1].
• You must replace only one of the servo
amplifiers [1] with a Smart Servo
Amplifier [2].
Note: In other words, if after the installation
• 93-32-4995 PCB, AUXILIARY LOAD
SMART AMP
LAST UPDATED: 11/28/2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haas AD0263
Summary of Contents for Haas AD0263

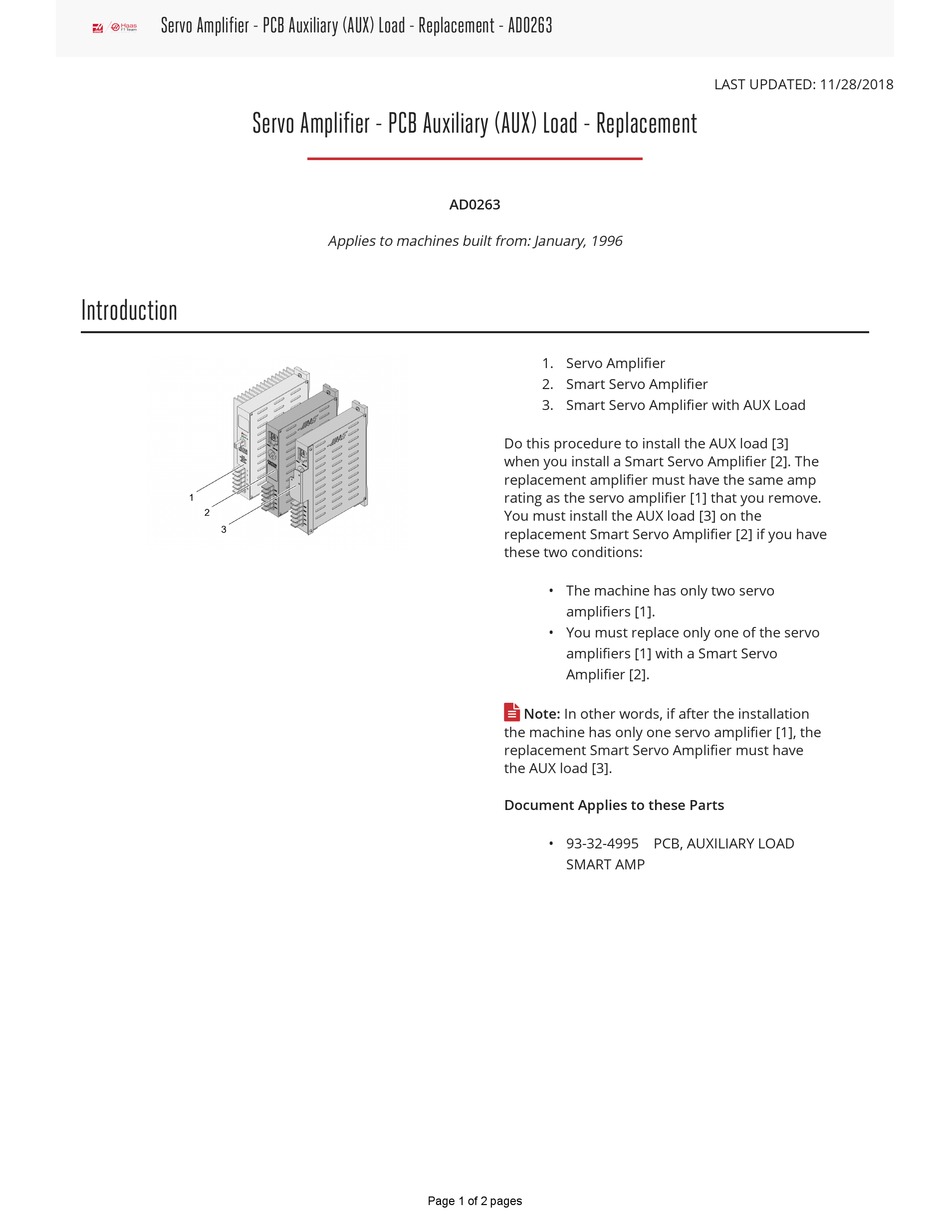

- Page 1 Servo Amplifier - PCB Auxiliary (AUX) Load - Replacement - AD0263 LAST UPDATED: 11/28/2018 Servo Amplifier - PCB Auxiliary (AUX) Load - Replacement AD0263 Applies to machines built from: January, 1996 Introduction 1. Servo Amplifier 2. Smart Servo Amplifier 3. Smart Servo Amplifier with AUX Load Do this procedure to install the AUX load [3] when you install a Smart Servo Amplifier [2].
