- Page 1 USER’S GUIDE SIRHC402 -1 DIMMER WITH TIMER FOR INFRARED RADIATOR For further information or to consult this guide online, please visit our website at www.stelpro.com INSSIRHC402-1_0720...
- Page 2 DESCRIPTION WARNING The SIRHC402 dimmer with timer can be used Before installing and operating this product, the to control an infrared radiator (SIRH). It lets you owner and/or installer must read, understand and warm the temperature in an outdoor area in cold follow these instructions and keep them handy weather.
-
Page 3: Wire Installation
2-WIRE INSTALLATION INSTALLATION Selection of dimmer location The dimmer must be mounted on a connection box on a wall at around 1.5 m (5 feet) above the floor level, on a section of the wall exempt from pipes or air ducts. Dimmer mounting and connection Cut off power supply on lead wires at the electrical panel in order to avoid... - Page 4 6. Replace the front part of the dimmer on the mounting base and tighten the screw at the bottom of the unit. 7. Turn on the power. 8. Set the dimmer to the desired setting (see the following section). INSSIRHC402-1_0720...

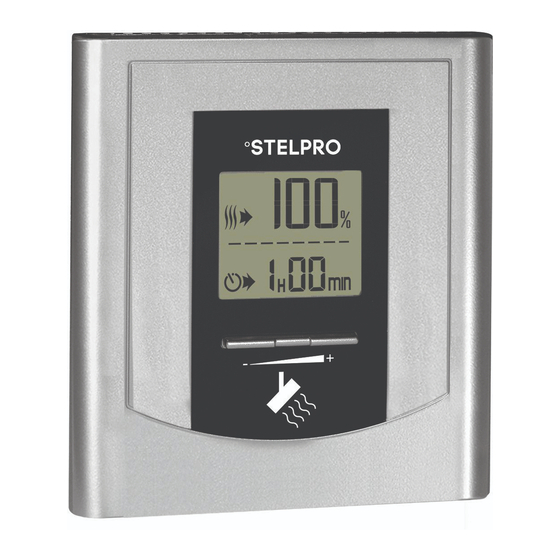

- Page 5 OPERATION Mode in use indicator Adjustment of Power mode power mode Adjustment of Timer mode timer mode INSSIRHC402-1_0720...
- Page 6 Principal features of the timer Power mode ( ) Frequency: 50/60Hz In Power mode, the power symbol will be displayed and the mode in use indicator arrow Operation ) will point to the three figures at the top of the Phase control at startup controls the inrush digital screen.
- Page 7 Power mode with active timer Timer mode ( When the timer is active, (time set to more than In Timer mode, the timer symbol will be displayed 0H00MIN), the three figures at the top of the digital and the mode in use indicator arrow (symbole) screen will indicate the power level of the lamp, will point to the three figures at the bottom of the and the three figures on the bottom will display...
- Page 8 ON-OFF The unit turns off (---) when the power is set at 0% or when the time on the timer has run out. The three figures at the top of the digital screen will display “---.” Saving the parameters The dimmer will not save any parameters. Therefore, in the event of a power failure, the dimmer will return to its default settings (Timer mode inactive —...
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM DEFECTIVE PART OR PART TO CHECK • Under normal operating conditions, the dimmer housing can reach nearly The dimmer is hot. 40° C at maximum load. This is normal and will not adversely affect the operation of the dimmer. Heating is always on even if the •... -
Page 10: Limited Warranty
260W @ 208 VAC transport, and installation. 150W @ 120 VAC E-mail: contact@stelpro.com Capacity range: Web site: www.stelpro.com 10 % to 100 % Capacity intervals: 10 % Timer display range: 0H0MIN to 9H45MIN...
