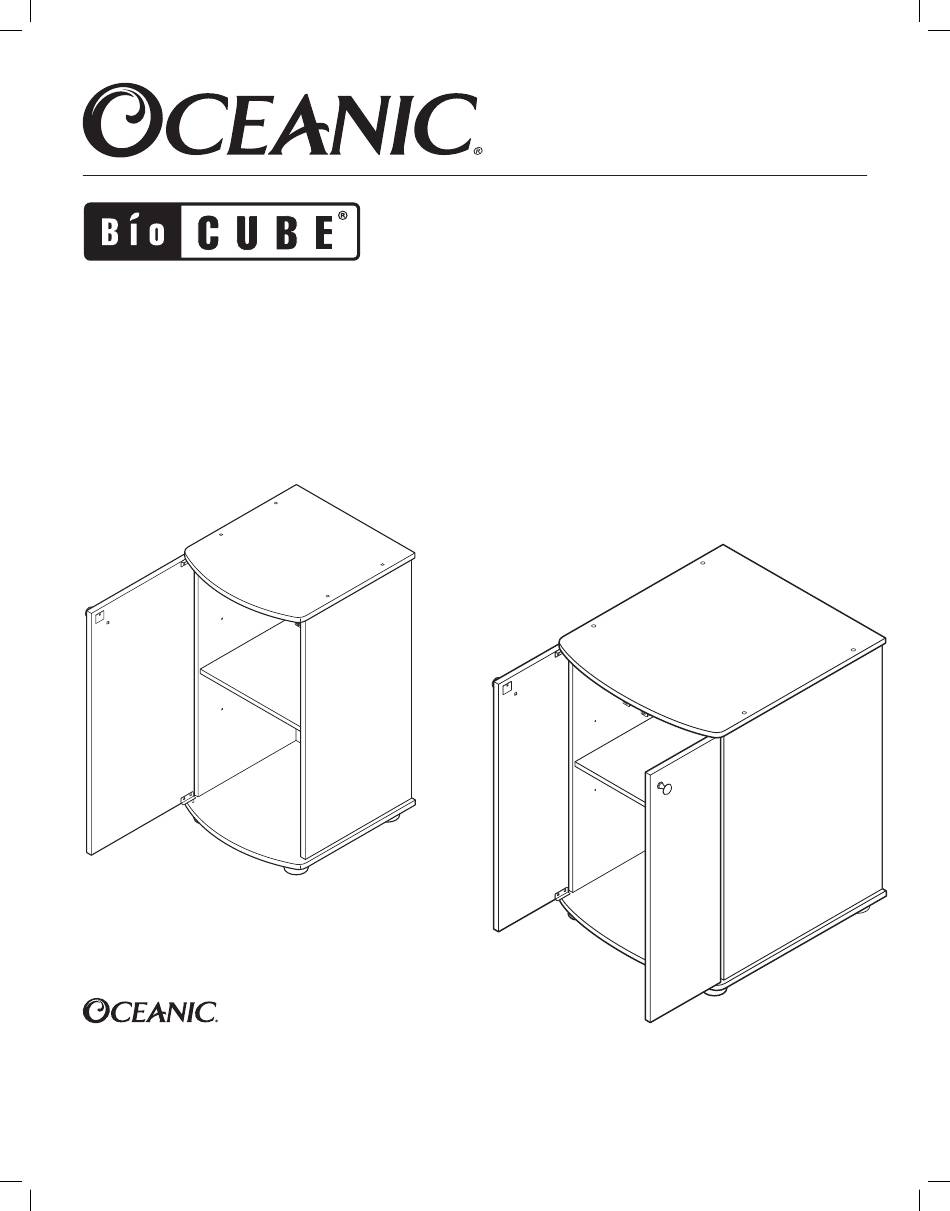

Aquarium Stand
Assembly Instructions
Size 14
15.25" Wide, 15.75" Long, 28" High
Item #36016
5401 West Oakwood Park Dr.
Franklin, WI 53132
For questions or inquiries about this product,
please visit us online at oceanicsystems.com
or call 888-255-4527.
Size 29
21.13" Wide, 20.375" Long, 28.875" High
Item #36017
Advertisement
Summary of Contents for Oceanic BioCUBE 36016
- Page 1 Aquarium Stand Assembly Instructions Size 14 15.25" Wide, 15.75" Long, 28" High Size 29 Item #36016 21.13" Wide, 20.375" Long, 28.875" High Item #36017 5401 West Oakwood Park Dr. Franklin, WI 53132 For questions or inquiries about this product, please visit us online at oceanicsystems.com or call 888-255-4527.
-
Page 2: Parts Diagram
Parts Diagram – Size 14 Parts List DESCRIPTION QTY. DESCRIPTION QTY. Top Panel Hinges (Top and Bottom) Shelf Short Wood Screws, 1/2" long Door Grommet Side Panels Door Catch Back Panel Hex Socket-Head Screws, 2" long Bottom Panel Metal Pegs Door Knob Wooden Pegs Medium Screw, 1"... - Page 3 Assembly Instructions – Size 14 Step 1 Step 3 1. Attach two hinges to inside of door panel by screwing 1. Attach side panels to bottom panel by aligning wooden two short wood screws (1/2 inch) through each hinge pegs with predrilled holes and sliding into place. into predrilled holes.
- Page 4 Assembly Instructions – Size 14 (continued) Step 5 Step 6 1. Insert grommet into hinge hole on top panel. 1. In a suitable location, place stand upright on a flat surface. Level the stand by placing a level tool on 2.
- Page 5 Parts Diagram – Size 29 Parts List DESCRIPTION QTY. DESCRIPTION QTY. Top Panel Hinges (Top and Bottom) Shelf Short Wood Screws, 1/2" long Doors (Left and Right) Grommet Side Panels Door Catch Back Panel Hex Socket-Head Screws, 2" long Bottom Panel Metal Pegs Door Knobs Wooden Pegs...
- Page 6 Assembly Instructions – Size 29 Step 1 Step 3 1. Attach two hinges to inside of each door panel 1. Attach side panels to bottom panel by aligning wooden by screwing two short wood screws (1/2 inch) pegs with predrilled holes and sliding into place. through each hinge into predrilled holes.
- Page 7 Step 5 Step 6 1. Insert two grommets into hinge holes on top panel. 1. In a suitable location, place stand upright on a flat surface. Level the stand by placing a level tool on the 2. Set top panel in position, placing it lightly over table top and take readings from front to back and side the wooden pegs.
- Page 8 5401 West Oakwood Park Dr. Franklin, WI 53132 For questions or inquiries about this product, please visit us online at oceanicsystems.com or call 888-255-4527.
