HAUSSLER Barbecue Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
Häussler barbecue
Original operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barbecue and is the answer not in the manual?

Questions and answers

Summary of Contents for HAUSSLER Barbecue

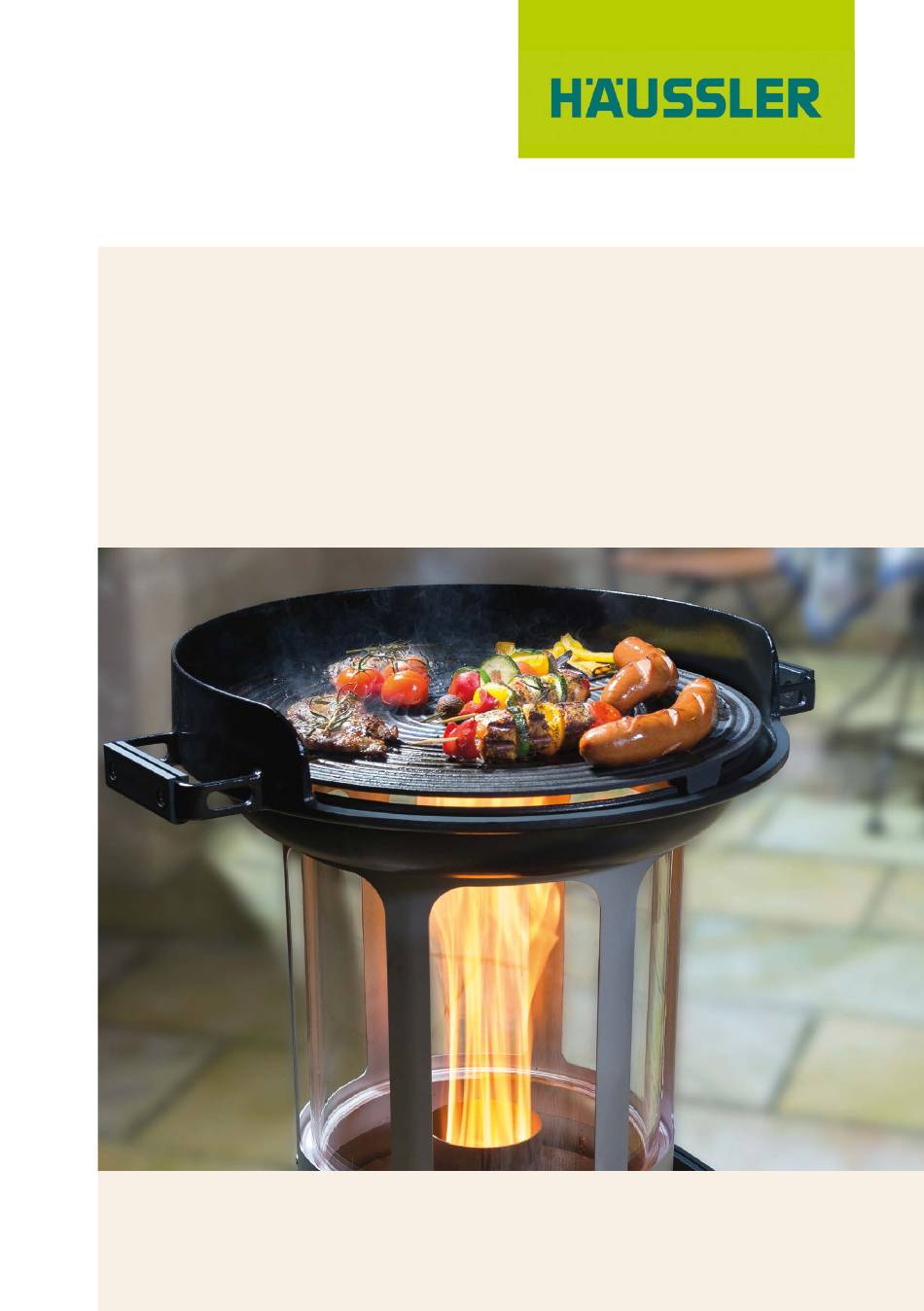

  • Page 1 Operating instructions Häussler barbecue Original operating instructions...

  • Page 2: Table Of Contents

    8 Good to know: Helpful hints around grilling .............19 9 Cleaning ......................20 10 Maintenance ....................21 11 Troubleshooting ....................22 What to do if the barbecue unexpectedly goes out ..........23 12 Disposal ......................25 13 Accessories ......................26 14 Warranty ......................32 15 For your notes ....................33...

  • Page 3: Welcome

    Häussler. You have decided to purchase the Häussler barbecue, which can be used as both a barbecue and a light pillar. With its contemporary look and the flame generated, the light adds an unforgettable, appealing atmosphere to any environment.

  • Page 4: For Your Safety

    The Häussler barbecue meets the prescribed, product-specific safety regulations. The Häussler barbecue is only intended to be used as a barbecue and a landscape light. The use of any fuel other than wood pellets is prohibited. Any other use shall be considered improper use.
  • Page 5  When handling the barbecue, wear barbecue mitts.  Use proper barbecue tools with long, heat-resistant handles.  Let the barbecue attachment cool down completely before cleaning it. ⚠ Risk of burns from high flames  Do not wear loose-fitting clothes.
  • Page 6 For your safety  Place the hot cover and barbecue attachment on a heat-resistant surface only.  Keep flammable materials away from the barbecue surface. ⚠ Risk of crushing from falling parts  Ensure that the barbecue attachment is properly seated on the light pillar.

  • Page 7: Product Guide

    Well-engineered elements from premium materials turn barbecuing into a passion. The Häussler barbecue consists of a basic body, a short glass insert (can also be used as a landscape light), and the barbecue attachment: a grill support, two outer rings, two-sided griddle insert, and barbecue cover.
  • Page 8 Product guide Name Value Pillar diameter 323 mm Height 1,050 mm Base diameter 600 mm Weight 39 kg Filling capacity Max. 9 kg Tab. 2: Dimensions Firing values Value Rated thermal input 5.2 kW/kg Carbon content 3.49% Exhaust mass flow rate 31.3 g/s Dust 2.80 mg...

  • Page 9: Scope Of Delivery

    Scope of delivery 4 Scope of delivery Designation Designation Base Round insert Griddle insert Fluted insert Flame splitter Glass insert Grate Upper section Burner cover Tab. 4: Scope of delivery Depending on the selected item, the scope of delivery may vary. Also observe the operating instructions supplied with the accessory.

  • Page 10: Cleaning The Device For The First Time

     Clean all parts, see Chapter 9 „Reinigen“ auf Seite 20. Assembling the device  Assemble the light pillar or the barbecue once without firing it up. This will help you become practised in handling the light pillar or barbecue when it is cold.
  • Page 11 You can also barbecue without the flame splitter. See p. 18  Place the two fluted inserts 9 in the barbecue attachment 6 and centre the round insert 8 in the inserts 9 . Your Häussler barbecue is now set up and ready...

  • Page 12: Fuel To Be Used

    Fuel to be used 5 Fuel to be used ⚠ WARNING Risk of fatality from explosion Darting flame  Never use easily and highly flammable liquids such as denatured alcohol, etc.  Never use an accelerant on pellets that have been fired up and are warm. ⚠...
  • Page 13 Fuel to be used Burning aids Only use burning aids that are certified for barbecues and wood shaving bundles so- aked in wax, which are toxin-free, have a neutral odour and taste, and burn without leaving residue behind. Helpful hint: Optimal flame ignition With Häussler pellet starter, you can optimally ignite the flame.

  • Page 14: Filling And Firing Up

    Do not leave infants, children, or animals unattended in the vicinity of the barbecue.  Let the barbecue cool down completely before touching it.  When handling the barbecue, wear barbecue mitts.  Use proper barbecue tools with long, heat-resistant handles.

  • Page 15: Filling Capacity

    Filling and firing up Filling capacity Level Filling capacity Burning period approx. 3 kg approx. 1 hour approx. 6 kg approx. 2 hours approx. 9 kg approx. 3 hours The times are only approximate since the burning period may vary with the slider setting and weather conditions.
  • Page 16 Filling and firing up Setting the burning period Regulating the air supply  By shifting the grate, you can set the    For the first 15 minutes, set the air sup-   burning period in accordance with the ply to maximum to optimally ignite the table on page 15.
  • Page 17    Only touch the short glass insert when   wearing barbecue mitts. Place the hot  If you’ve just used the barbecue or short   short glass insert on a heat-resistant light pillar, be careful with hot compo- surface only.

  • Page 18: Grilling With/Without Flame Splitter

    At the rear of the barbecue, the temperature is somewhat lower and opti- mal for grilling sausages, cheese, etc. At the front of the barbecue, there is a quiet zone. The temperature there is lower than in the rear areas and it is perfect for grilled vegetables or keeping cooked steaks warm.

  • Page 19: Good To Know: Helpful Hints Around Grilling

    Always make sure that the food fits on the barbecue and fit beneath the barbecue cover. Also be aware of the thermometer that protrudes from the barbecue cover.

  • Page 20: Cleaning

    Do not lift it to the side.  After each use of the light pillar or the Häussler barbecue, remove the ashes from the firing chamber.  Always let the firing chamber cool down before emptying the ashes.

  • Page 21: Maintenance

    For maintenance and care, we recommend using the transparent multi-purpose grease for the Häussler pellet barbecue. Ideal for greasing the aluminium upper part so it is easier to attach and does not catch – even at high temperatures. Protects and preserves the material.

  • Page 22: Troubleshooting

    Troubleshooting 11 Troubleshooting Problem Cause Resolution No flame visible Flame extinguished  Carefully remove the upper sec- after firing up tion, including the glass insert and burner cover, and fire up again.  Set regulator to maximum. Flame is too The burner head and ...

  • Page 23: What To Do If The Barbecue Unexpectedly Goes Out

    If a gust of wind unexpectedly blows out the barbecue’s flame, dense smoke may be produced.  In case of wind, move the barbecue to a place that is protected against the wind or use a wind deflector. Fire up the barbecue again as described in the following.
  • Page 24 Troubleshooting Lifting off the attachments Wood shaving bundle  Put on barbecue mitts.    Use a long barbecue tong to grasp a   wood shaving bundle.  Avoid heated components.    Ignite the bundle.    Lift off the barbecue attachment,  ...

  • Page 25: Disposal

    Disposal 12 Disposal  Keep the light pillar clean at all times and when disposing of residual materials.  Do not remove the ashes until they have completely cooled down.  Only use the intended containers made of metal or noncombustible materials to dispose of the residual waste or ashes.

  • Page 26: Accessories

    Tray dimensions L x H 50 x 39 cm Weight 1.3 kg Item number: 304003 Barbecue/light pillar cover Keeps stormy weather away from your Häussler barbecue. And effortlessly ensures a long service life. Barbecue cover: Item number: 304006 Light pillar cover: Item number: 304007 Apron Ideal protection against splashing grease and stains.
  • Page 27 Accessories Glass insert tall The tall glass insert creates an attractive atmosphere. Material Glass Glass insert outer dimensions W x H 30 x 60 cm Weight 9.6 kg Item number: 304005 Grill grate With the grill grate, you can cook perfect steaks and other delica- cies.
  • Page 28 It catches dripping grease so it doesn’t burn and cause smoke. Item number: 055990 Transport dolly The transport dolly makes it easier to work with the barbecue or light pillar. It is ergonomic, simple to operate, and requires no maintenance. Item number: 304024...
  • Page 29 The edge strip prevents food from rolling or slipping off the plancha. Item number: 304027 Wind deflector You can protect your barbecue from windy weather with the wind deflector. It prevents gusts of wind from extinguishing the fire. Item number: 303524 Grill grate brush The Häussler grill grate brush was designed to clean the spaces...
  • Page 30 Accessories Barbecue mitts Stylish Häussler barbecue mitts are made of 100% cotton and provide reliable protection against heat and flying sparks. They are perfect for refilling charcoal, while grilling, or when changing tools while the barbecue is on. Item number: 304008 Häussler pellet starter...
  • Page 31 15 kg 302442 Häussler transparent multi-purpose grease Transparent multi-purpose grease for Häussler pellet barbecue. Ideal for greasing the aluminium upper part so it is easier to attach and does not catch – even at high temperatures. Protects and preserves the material. Contents 150 g.

  • Page 32: Warranty

    Warranty 14 Warranty You will receive a 12-month factory warranty on your device, beginning on the date of the invoice. Karl-Heinz Häussler GmbH produced your device in accordance with the technological state of the art. All devices that leave our factory are made from high-quality materials and were thoroughly inspected.

  • Page 33: For Your Notes

    For your notes 15 For your notes...
  • Page 34 Visit our baking centre… Under the name of Häussler, we have devoted our work to the pleasure of doing it yourself for more than 40 years. We are a family-run company with approx. 100 employees and our headquarters is in Heiligkreuztal/Upper Swabia. We produce our devices there, including our wood- burning ovens, for example.
  • Page 35 Our service for you  Information on other destinations and places to stay in the area  Cosy consulting rooms  Children’s play area  Guest toilets with changing tables  Seating  Loading service  On-site service for your devices on our premises ...
  • Page 36 Karl-Heinz Häussler GmbH Nussbaumweg 1 88499 Heiligkreuztal, Germany Telephone +49 73 71/93 77-0 Fax + 49 73 71/93 77-40 Email: info@backdorf.de Version: 25/10/2019...
