QUICK START GUIDE
This guide serves the following
Model Names:
SWT-G0803MGHP240
QUICK START GUIDE
SWT-G0803MG Series

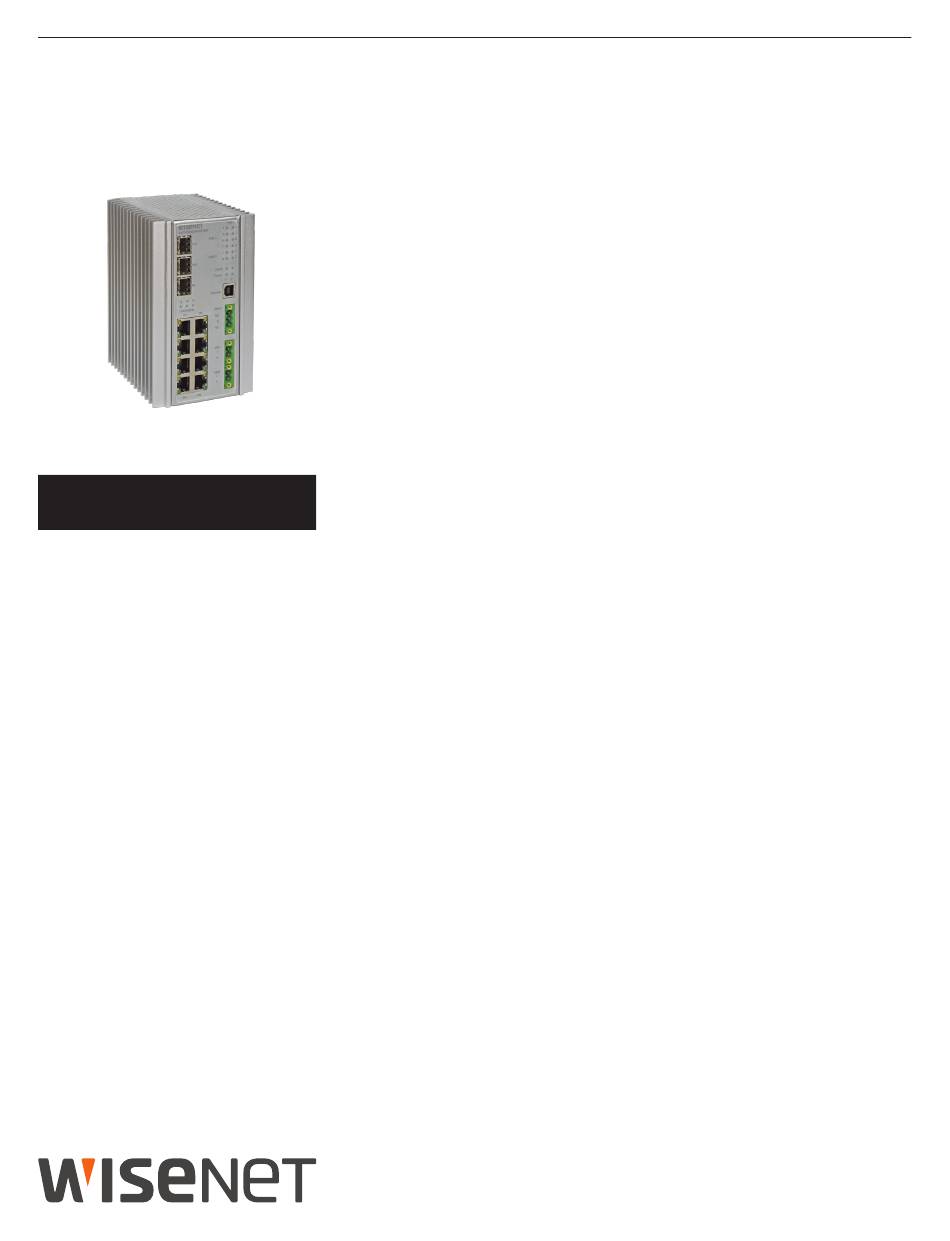

Environmentally Hardened Managed Ethernet Switch
3 SFP + 8 Electrical Ports with 60 Watt PoE
The SWT-G11MGHP is composed of the SWT-G0803MGPH240 Switch and PWR-
DR48480 Power Supply.
The switch has three 100/1000Base-FX SFP ports and eight 10/100/1000Base-TX
ports. The SFP ports support 2.5 Gbps SFPs for high-speed communication in
bandwidth-intensive applications. All SFP ports utilize SFP modules for fiber and
connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet
redundancy protocols (MSTP/RSTP/STP/ERPS (G.8032)) which protect your
applications from network interruptions or temporary malfunctions by redirecting
transmission within the network. The switch provides advanced IP-based
management that can limit the maximum bandwidth for each connected IP device,
allowing the user to adjust usage. The switch provides eight electrical ports supplying
Power over Ethernet (PoE). Four of the eight PoE ports can support up to 60 watts of
PoE power per port, while the other four ports support up to 30 watts of power per
port. All PoE ports are IEEE802.3af/IEEE802.3at compliant.
SWT-G0803MG SERIES
QSG_SWT-G0803MG 08/12/2019 PAGE 1
Advertisement
Table of Contents
Related Manuals for Wisenet SWT-G0803MG Series
Summary of Contents for Wisenet SWT-G0803MG Series
- Page 1 QUICK START GUIDE SWT-G0803MG SERIES QUICK START GUIDE SWT-G0803MG Series Environmentally Hardened Managed Ethernet Switch 3 SFP + 8 Electrical Ports with 60 Watt PoE The SWT-G11MGHP is composed of the SWT-G0803MGPH240 Switch and PWR- This guide serves the following DR48480 Power Supply.
-
Page 2: Table Of Contents
QUICK START GUIDE SWT-G0803MG SERIES Contents Regulatory Compliance Statement Warranty Disclaimer Safety Information Hardware Installation Installing the Switch on DIN-Rail Wall Mounting Installation Hardware Overview Power Supply Front Panel LEDs SWT-G0803MGHP240 60 W PoE Model Software Configuration Configuration by Web Browser... -
Page 3: Regulatory Compliance Statement
QUICK START GUIDE SWT-G0803MG SERIES Regulatory Compliance Statement Product(s) associated with this publication complies/comply with all applicable regulations. Please refer to the Technical Specifications section for more details. Warranty Hanwha Techwin warrants that all products are free from defects in material and workmanship for a specified warranty period of 3 years from the invoice date. -
Page 4: Safety Information
QUICK START GUIDE SWT-G0803MG SERIES Safety Information » Only service personnel can service the equipment. Please contact Technical Support. » The equipment should be installed in locations with controlled access, or other means of security, and controlled by persons of authority. When operating at temperatures above 51º C, the equipment surfaces will be hot to the touch. -
Page 5: Hardware Installation
QUICK START GUIDE SWT-G0803MG SERIES Hardware Installation Installing the Switch on DIN-Rail Each switch has a Din-Rail kit on the rear panel. The DIN-Rail kit affixes the switch to the DIN-Rail. QSG_SWT-G0803MG 08/12/2019 PAGE 5... - Page 6 QUICK START GUIDE SWT-G0803MG SERIES It is easy to install the switch on the Din-Rail: Mount Series on DIN-Rail Step 1: Tilt the switch and mount the metal spring to DIN-Rail. Step 2: Push the switch toward the DIN-Rail until you hear the spring snap into place...
-
Page 7: Wall Mounting Installation
QUICK START GUIDE SWT-G0803MG SERIES Wall Mounting Installation Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall:... -
Page 8: Hardware Overview
QUICK START GUIDE SWT-G0803MG SERIES Hardware Overview SWT-G0803MGHP240 Call-out Description 3 × 100/1000/2500Base-FX SFP Ports Link/Activity LED Indicators for SFP Ports 8 × 10/100/1000Base-TX RJ45 Ports PoE LED Indicators Alarm and Power LED Indicators USB Console Port Fault Relay 3-Pin Terminal Block Connector... -
Page 9: Power Supply
QUICK START GUIDE SWT-G0803MG SERIES Power Supply For SWT-G0803MGHP240 Model, Power Supply must be 44 to 57 VDC @ 255W max. IMPORTANT SAFEGUARDS: A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore,... -
Page 10: Software Configuration
QUICK START GUIDE SWT-G0803MG SERIES Software Configuration Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser About Web-based Management An embedded HTML web site resides in the flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer. -
Page 11: Setting An Initial Password
Setting an Initial Password Wisenet switches require a password to be set upon initial login using the CLI. Before you can sign in to the web GUI, a password must be set using the CLI. The CLI can be accessed using the USB port and terminal software or with an ethernet cable and telnet. -
Page 12: Using Switch Cli
QUICK START GUIDE SWT-F0803MG SERIES Using Switch CLI About CLI Management Besides Web-based management, the switch also supports CLI management. You can use console or telnet to manage switch by CLI. CLI Management by Serial Console (115200, 8, none, 1, none) Before configuring the serial console, use a USB Male-A to USB Male-B cable to connect the Switches’... - Page 13 QUICK START GUIDE SWT-F0803MG SERIES Step 2. Input a name for new connection Step 3. Select to use COM port number QSG_SWT-G0803MG 08/12/2019 PAGE 13...
- Page 14 QUICK START GUIDE SWT-F0803MG SERIES Step 4. The COM port properties setting, 115200 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. Step 5. The Console login screen will appear. Use the keyboard to enter the Username and Password (use the same password as the Web Browser), then press “Enter”.
- Page 15 QUICK START GUIDE SWT-F0803MG SERIES CLI Management by Telnet You can use “telnet” or similar virtual terminal software to configure the switch via a network connection. Note that you may need to install the Telnet client in certain versions of Windows (Settings >...
-
Page 16: Factory Default Procedure
SWT-F0803MG SERIES Factory Default Procedure Wisenet switches have a procedure to return the unit to factory default configuration, deleting the running & startup configuration. This is useful in cases where the configured password cannot be remembered and the "reload defaults" command can not be used.
