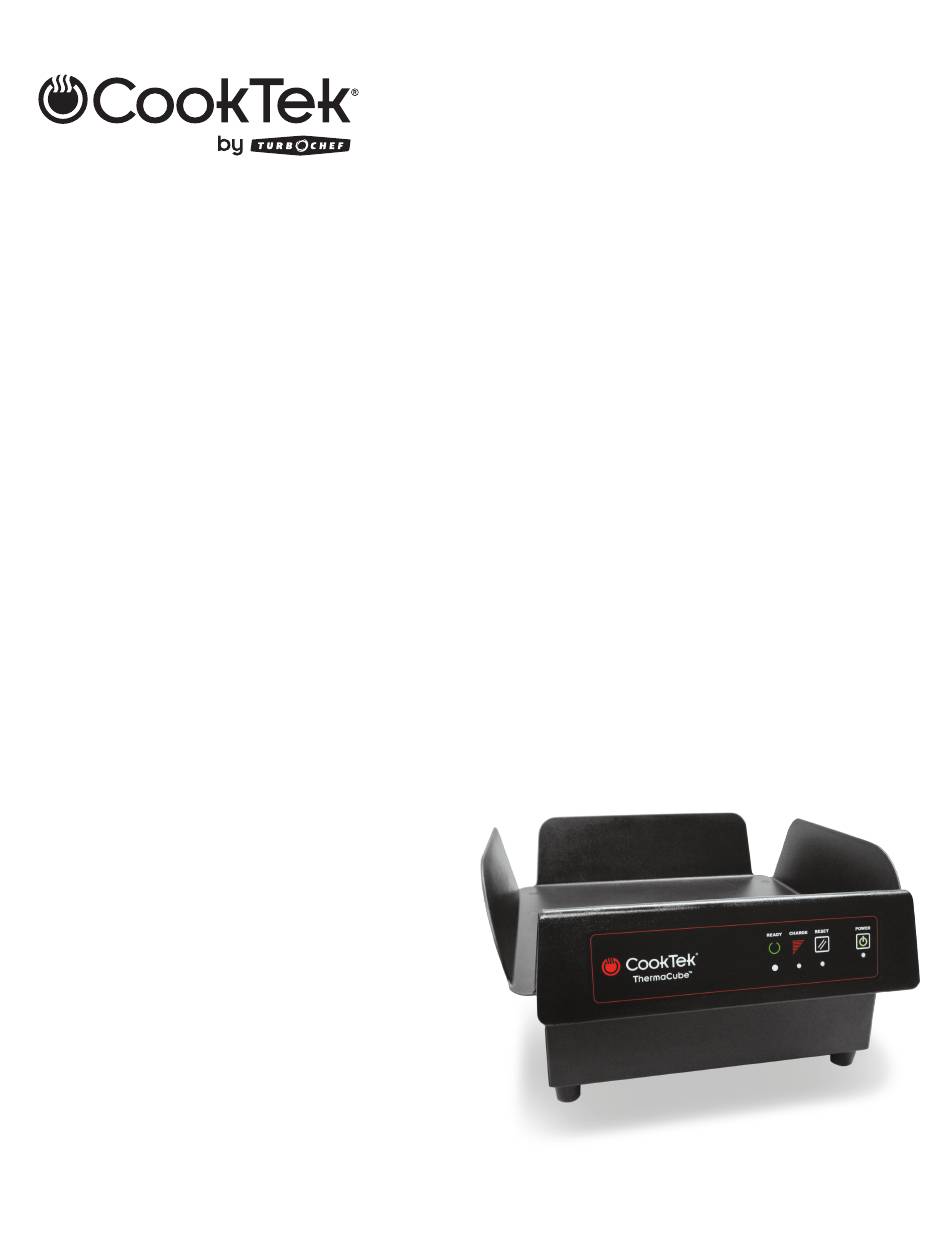

Owner's Manual
fo r th e c o o k t ek t h er m a c ube ™ f o o d d e l i ve r y s y st e m
mo de ls tcs 10 0 & t c s 200
p a r t n u mbe r s : 60 910 1, 60 9 2 xx
CAUTION: Read the instructions before using the equipment.
©2016 TurboChef Technologies, Inc.
*
*Delivery bags and natural convection trays sold separately.
Advertisement
Table of Contents
Summary of Contents for TurboChef CookTek THERMACUBE TCS100
- Page 1 10 0 & t c s 200 p a r t n u mbe r s : 60 910 1, 60 9 2 xx CAUTION: Read the instructions before using the equipment. ©2016 TurboChef Technologies, Inc. *Delivery bags and natural convection trays sold separately.
- Page 2 For further information, call 800.90 TURBO +1 214.379.6000...
- Page 3 Original Instructions The information contained in this manual is important for the proper installation, use, maintenance, and repair of this equipment. Follow these procedures and instructions to help ensure satisfactory results and years of trouble-free service. Errors – descriptive, typographic, or pictorial – are subject to correction. Specifications are subject to change without notice.
-
Page 4: Table Of Contents
Table of Contents Safety Instructions Important Safety Instructions General Safety Information Grounding Instructions Power Cord Replacement Specifications and Installation Theory of Operation ThermaCube Charger ThermaCube Natural Convection Tray ThermaCube Delivery Bags Certifications Electrical Specifications Installation Unpacking Instructions Installing the ThermaCube Charger Assembling the Delivery Bag Maintenance Controls... - Page 5 IMPOrTanT SafeTy InSTruCTIOnS WARNING: When operating this appliance, strictly adhere to the following safety precautions to reduce the risk of burns, electric shock, fire, injury, damage to appliance or property near appliance. GeneraL SafeTy InfOrMaTIOn • Read all instructions before using this appliance. •...
-
Page 6: Safety Instructions
SafeTy InSTruCTIOnS • Users wearing a pacemaker should consult their doctor or the pacemaker manufacturer prior to operating CookTek induction equipment. The electromagnetic field may interfere with the proper function of the pacemaker. • The ThermaCube chargers and natural convection trays are intended for use with CookTek-designed and approved delivery bags only. -
Page 7: Theory Of Operation
13.63” (346 mm) 16.93” 14” (356 mm) (430 mm) 8.25” (209 mm) 3.5” (89 mm) 1” (25 mm) 13.88” (353 mm) 16.75” (425 mm) figure 1: ThermaCube Charger dimensions (Top and Side Views) Theory of Operation ThermaCube Charger exterior dimensions The ThermaCube Food Delivery System uses precise induction technology to warm food Height: 8.25”... -
Page 8: Thermacube Natural Convection Tray
SPeCIfICaTIOnS and InSTaLLaTIOn figure 2: ThermaCube natural Convection Tray dimensions ThermaCube natural Convection Tray ThermaCube natural Convection Tray dimensions (all models) The ThermaCube natural convection tray is removable and designed to optimize food Height: 1.85” (47 mm) temperatures inside the delivery bag. The natural Width: 13.50”... -
Page 9: Thermacube Delivery Bags
12.75” (324 mm) 10.25” (260 mm) 13.38” (340 mm) 13.38” (340 mm) 15.13” (384 mm) 13.38” (340 mm) front Side front Side figure 3: ThermaCube Large delivery Bag figure 4: ThermaCube Small delivery Bag ThermaCube delivery Bags ThermaCube Small delivery Bag Exterior Available in two sizes, the ThermaCube delivery Height (closed top): 10.25”... -
Page 10: Certifications
SPeCIfICaTIOnS and InSTaLLaTIOn Certifications Installing the ThermaCube Charger Follow these guidelines to ensure product reliability: • ThermaCube charger can be installed on top of or recessed into a flat, level countertop or shelving unit. All installations require a The CookTek ThermaCube Food Delivery System minimum clearance of 2”... -
Page 11: Maintenance
Maintenance Follow the steps below when cleaning your ThermaCube charger, natural convection tray, and delivery bag. Failure to adhere to these procedures may damage components, resulting in a non-warranty service call. Step 1: Turn the Charger Off and allow to Cool •... -
Page 12: Controls
COnTrOLS figure 5: ThermaCube Charger Controls ThermaCube Charger Controls 1. ready Led This green LED will illuminate to indicate that the delivery bag is fully charged and ready for use. 2. Charge Led This red LED will illuminate to indicate that the delivery bag is charging. 3. -
Page 13: Operating The Thermacube Delivery System
Operating the ThermaCube food delivery System 1. Make sure that your ThermaCube charger is plugged in to a dedicated circuit. See page 4 for electrical specifications. 2. Press the Power button to turn the unit on. An LED will illuminate to indicate that the charger is on and ready for use (see page 6). -
Page 14: Troubleshooting
TrOuBLeSHOOTInG Troubleshooting The following is a list of error codes, along with the possible problem(s) that the appliance may experience. Please attempt the recommended action before calling CookTek Tech Support (800.90TURBO, +1 214.379.6000) or your Authorized Distributor. error Codes Error codes will be indicated by a number of beeps and the flashing Reset LED. Count the number of beeps in a row –... - Page 15 Issue Possible Cause(s) resolution No power • Unit unplugged. • Plug unit in. (lights or fan noise). • No power to receptacle. • Check wall switches/circuit breaker. Red Charge LED • No natural convection tray in • Place the natural convection tray in does not turn on delivery bag.
-
Page 16: Warranty
WarranTy THIS WarranTy rePLaCeS and SuPerCedeS any and aLL PreVIOuS WarranTIeS Offered By COOKTeK and/Or any WarranTIeS PrOVIded In THe aCCOMPanyInG PrOduCT ManuaL Two (2) Year North America Limited Warranty for “Portable” CookTek Products CookTek Product Models Covered under this Limited Warranty “Portable”... - Page 17 Modifications and Repair: Equipment that has been modified or altered by persons other than CookTek or its service agents, or Equipment that has had non-approved devices or connection items attached thereto, is excluded from coverage under this warranty. Repair of the Equipment by anyone other than CookTek or its authorized service agents will void all warranties on the Equipment.
- Page 18 WarranTy Customer Indemnity You agree to indemnify, defend and hold CookTek harmless from all third party claims, demands, judgments, fees and costs directly or indirectly arising out of or related to your use of the Equipment. You further agree to indemnify and hold CookTek harmless from any incidental, consequential or special damages suffered by you, including lost revenue or profits, loss of use, or substitute use, during periods of Equipment failure or loss of use.
- Page 19 This page intentionally left blank.
