Summary of Contents for welldana Comfortana

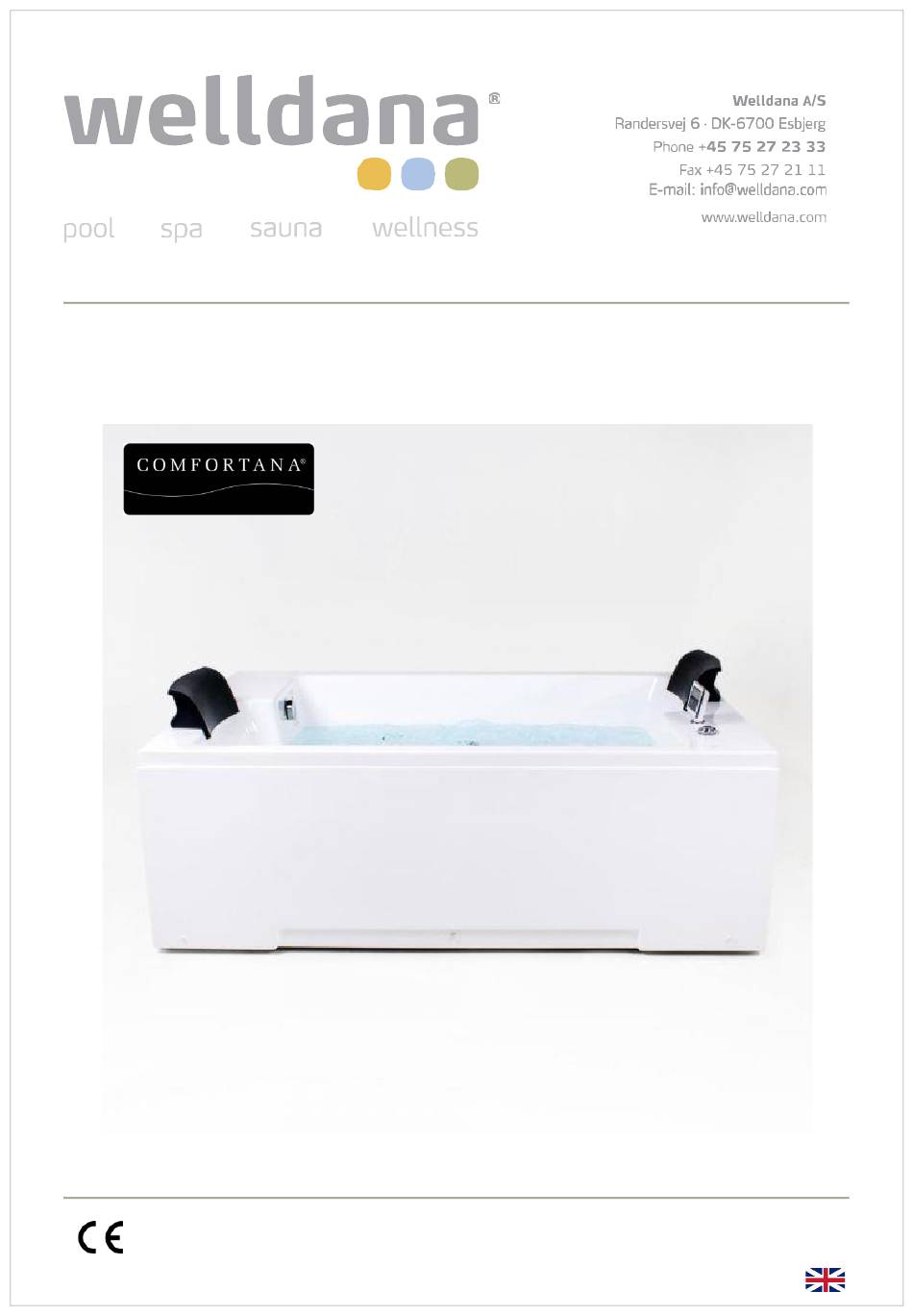

- Page 1 User Manual Foto: Model 61-092005. Subject to function and product changes. Copyright. Welldana A/S 06 – 2020. Issue 1 Language: English...
-
Page 2: Preparation Before Installation
Preparation Before Installation Before installation, please get ready for the water supply, power supply and the drainage pipe in the installation position according to the water and electrical installation diagrams. The water pressure shall be 0.2 - 0.6Mpa; and the water supply shall apply to G1/2" hose screw connection for cool and warm water. The diameter of the drainage pipe shall be 1 1/2"... - Page 3 Cold pipe and hot pipe connection Cold and hot pipes are high press reticulated pipe, please connect connectors according to the signs on the end of the pipe. (Note: Must install a valve on the cold and hot pipe, respectively.) Power Connection Connect the power wire to an all-pole Stainless steel support...
- Page 4 Manual for AA-07HFC Computer Control Panel 6. Computer Control Panel: luxurious enjoyment of bathing; The multi-function can be controlled through its advanced system, with LCD screen displaying the working condition , function and operation of the massage bathtub, allowing you to fully enjoy the hydro massage and entertainment functions. 7.
- Page 5 Water level detector Each model of computerized controlled massage bathtub with metal water level sensor. The pump starts work only after the water in the tub reach the water le vel probe (Please water level line in the diagram) A bubble bath safety protection function bubble bath function opens.
- Page 6 Function Description for Computer Control Panel...
-
Page 7: Safety Precautions
Safety precautions. On the steel frame for the hot tub there is a bolt with extra ground conductor yellow / green wire for extra ground protection / potential equalization. This must be connected to ground. The electrical installation to which the hot tub is connected must be grounded and connected to HFI / HPFI. Wiring to the hot tub must be performed by an authorized electrical installer and in accordance with applicable norms and regulations. - Page 8 Repairing Tips...
- Page 9 Connection Blueprint for AA-07HFC Computer Control Massage Bathtub...
- Page 10 6 kw electric heater with pressure switch & relay box.
- Page 11 Measure sketches. Bathtub 61-091001. Bathtub 61-091003.
- Page 12 Bathtub 61-091002. Bathtub 61-091004.
- Page 13 Bathtub 61-091005. Dealer.
