OWNER'S MANUAL
Graco
PD285987B
9/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1E47ZBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco 1E47ZBA

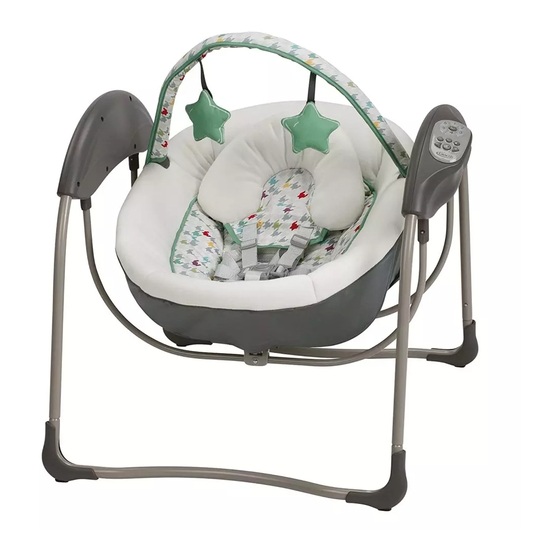

Summary of Contents for Graco 1E47ZBA

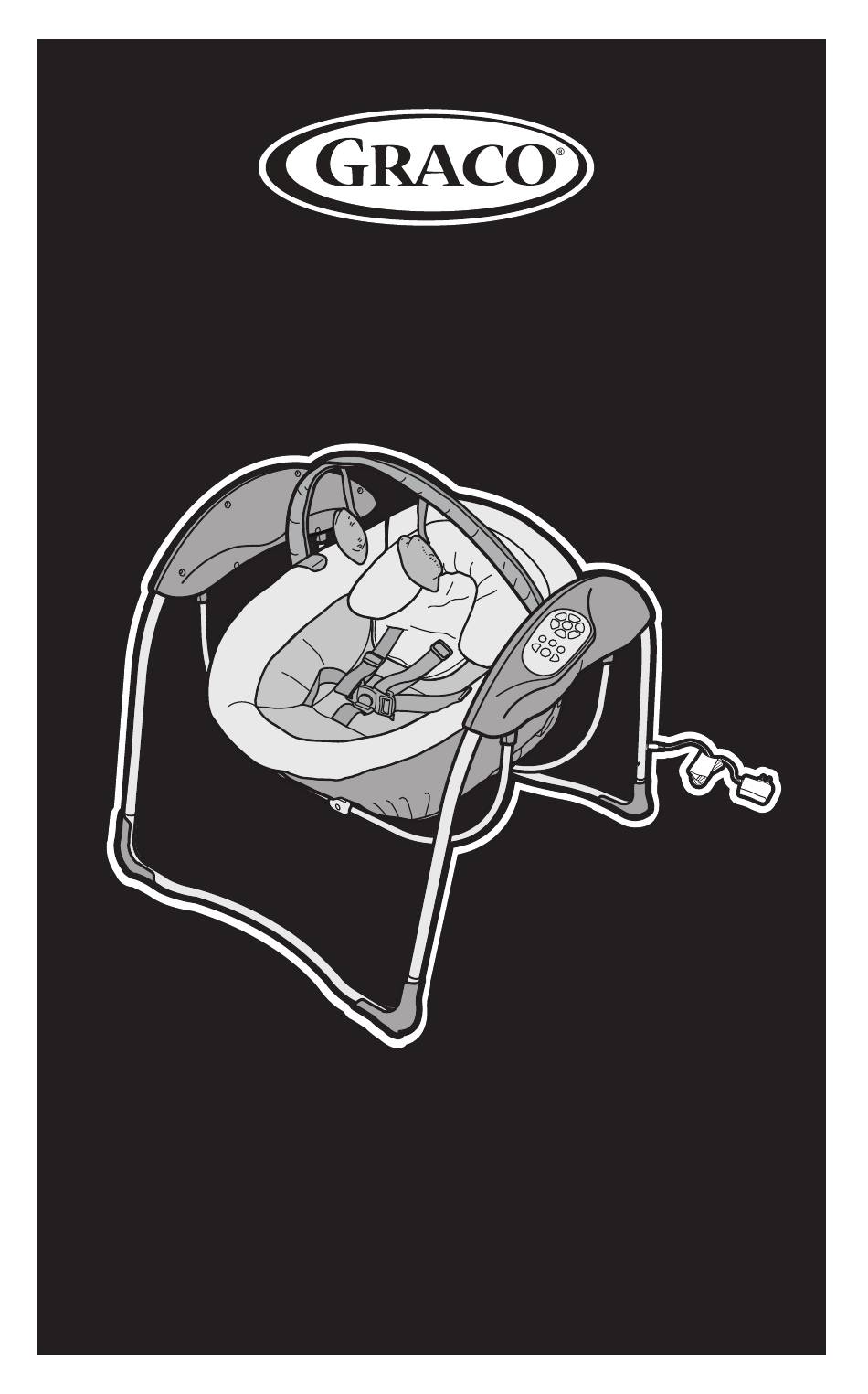

  • Page 1 OWNER'S MANUAL Graco PD285987B 9/14...
  • Page 2 Failure to follow these warnings and the assembly instructions could result in serious injury or death. • PLEASE SAVE OWNER’S • Keep swing seat fully MANUAL FOR FUTURE USE. reclined until child is at least 4 months old AND can hold •...
  • Page 3 • DISCONTINUE USING YOUR SWING should it become damaged or broken. • DO NOT place product near water and moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.

  • Page 4: Parts List

    Parts list This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service. No tools required. ALL MODELS Front tube Rear tube...

  • Page 5: Frame Assembly

    Frame Assembly Battery Insert one of the swing feet tubes into the battery housing leg tube until the button clicks into place as shown. Feet SNAP! Insert the other side of the swing feet into the other housing leg until the button clicks into place as shown.
  • Page 6 SNAP! Insert the other feet into the rear leg tubes until the button clicks into place as shown. SNAP! Frame is assembled.
  • Page 7 Attaching Swing Arms Head end of seat Bracket Turn seat over. Insert the tube with the single bracket with the buttons facing toward the head end of seat as shown. Head end of seat Button Push tube into mounts until it snaps into place. SNAP! SNAP!
  • Page 8 Button Bracket Insert the tube with the double brackets with the buttons facing toward the head end of seat as shown. Head end of seat SNAP! Push tube into mounts until it snaps into place. SNAP!
  • Page 9 Rotate brace and attach it to the front tube. It will snap into place. SNAP!
  • Page 10 Single Bracket SNAP! Fasten 2 straps to the tube with the single bracket as shown. MAKE SURE straps go in-between the tubes and not over the tubes as shown Wrap seat pad through the tubes as shown.
  • Page 11 Pull the other side of seat pad up through the tubes as shown. SNAP! Pull the other side of the seat pad up and fasten 3 sets of snaps as shown. SNAP! Fasten center snap as shown.
  • Page 12 Fasten snaps on other side of seat as shown. SNAP! SNAP! Fasten the other side of the seat pad over the center snap as shown. Seat is assembled.
  • Page 13 Attaching Swing Seat to Frame Insert the tube with the single SNAP! bracket into the front hangar mounts until they snap into place. SNAP! Bracket Insert the tube with the double SNAP! brackets into the rear hangar mounts until they snap into place. Brackets CHECK tubes are securely in place by pulling down on them.
  • Page 14 Attaching Toy Bar Fasten toy bar onto edge of seat until it is securely in place. Attach toys as shown.
  • Page 15 To Secure Infant WARNING Falling Hazard: Always use the seat belt. Use slide adjuster at shoulder and waist for tighter adjustment. To change shoulder harness slots, see page 20.
  • Page 16 To change harness strap position, unfasten snaps on bottom of seat to reach the harness straps. Pull harness straps out of slots in seat pad. Re-insert straps into desired set of slots.When changing harness strap slots, MAKE SURE harness straps are going through same slots in seat pad.
  • Page 17 Installing Batteries (not included) With baby out of swing, open the battery compartment lid by inserting a key into the slot. Insert four D (LR20 -1.5V) batteries. Replace battery lid. CHECK that the batteries are put in correctly. Your swing will not run if the batteries are put in backwards.
  • Page 18 For Safe Battery Use Keep the batteries out of children’s reach. Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries.
  • Page 19 WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 20 To Use Wall Plug WARNING Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off. DO NOT place product near water and moisture. Do not use the product near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.
  • Page 21 Starting Swing (6 Speed) Speeds Power ON/OFF Nature sounds Music Timer Music/Nature Off Volume control WARNING avoid serious injury from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your infant. TO TURN SWING ON: Press On /Off button or press any speed from 1 to 6.
  • Page 22 SPEED - Press On /Off button or press any speed from 1 to 6. When pressing On/Off button, it automatically starts with the last speed setting that was selected before the swing was turned off. ON/OFF POWER - Press to turn ON and turn OFF. Press button to stop swing motion.

  • Page 23: Head Support

    Features on Certain Modeles This model may not include some features. Head support Only use this head support on this swing. Never use this head support on any other product.

  • Page 24: Problem Solving

    Problem Solving SWING WON’T OPERATE: 1. No batteries in swing. 2. Batteries dead. 3. Speed setting too low. 4. Batteries in backwards — check “+” and “-”. 5. Corrosion on battery terminals. Rotate batteries in place against terminals, or clean with sandpaper or steel wool if corrosion is severe.

  • Page 25: Care And Maintenance

    • FROM TIME TO TIME CHECK YOUR SWING for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts. • REMOVABLE CLOTH SEAT COVER, refer to your care tag on your seat pad for washing instructions.
