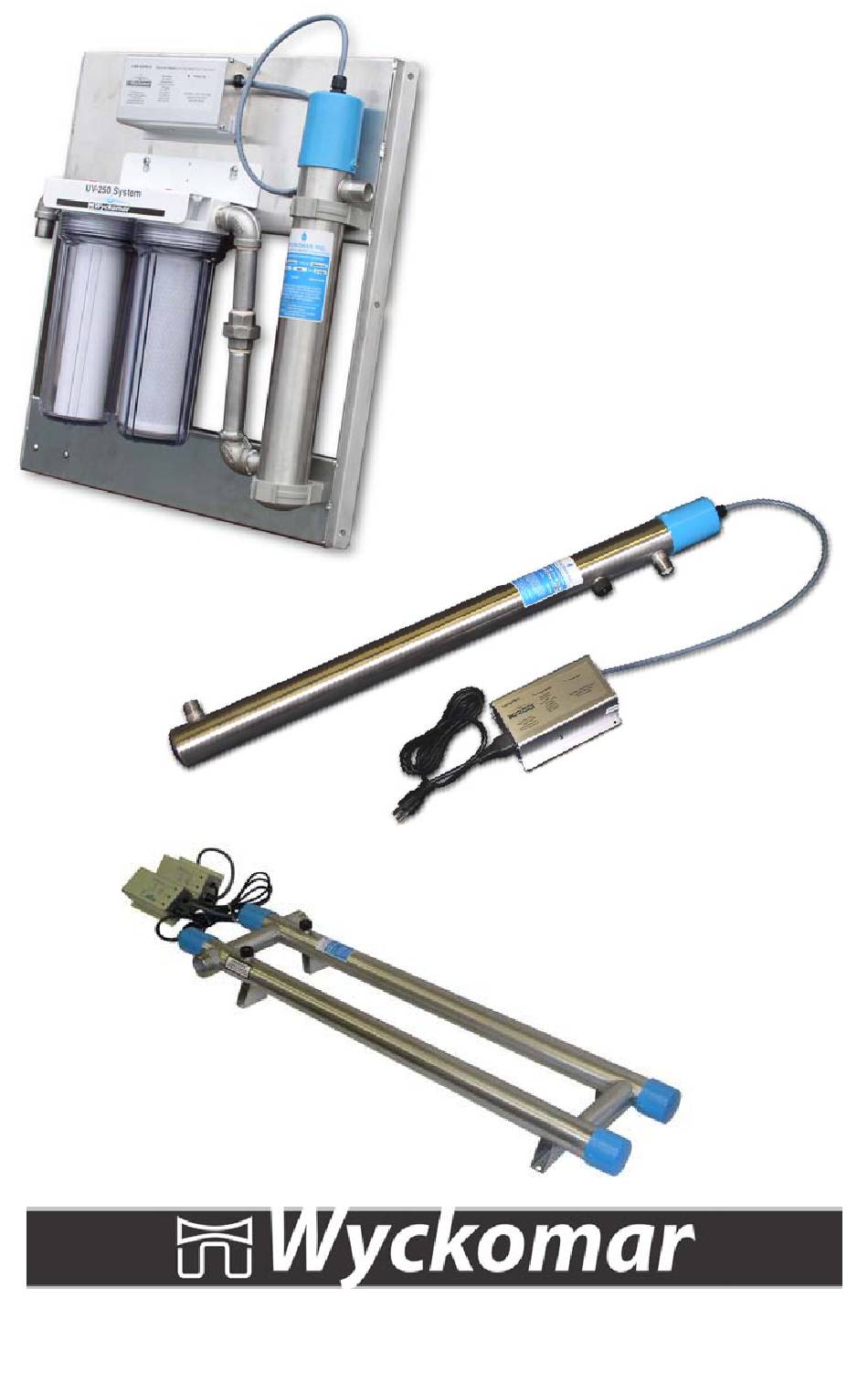

- Page 1 Installation and Maintenance Manual Models: UV-1, UV-250, UV-700, UV-1200, UV-1500, UV-3000 and UV-5000 UV Purification Systems...
- Page 2 CAUTION - WARNING The ballast and all electrical connections MUST be mounted and installed ABOVE the water lines to prevent the possibility of electrical shock in case of a water leak. See “Preparing to install your system” on Page 4 Please read this entire User Manual before attempting to install your UV system.
- Page 3 27, 28 Section 6 - Contact and Warranty Copyright Copyright by Wyckomar Inc. 2011. No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of Wyckomar Inc. Notice Although Wyckomar has attempted to ensure the accuracy of the content of this manual, it is possible that this document may contain technical inaccuracies, typographical, or other errors.
- Page 4 (such as trace minerals). Factors Affecting UV Purification The Wyckomar UV Purifier is guaranteed to eliminate microbiological contamination only if the physical qualities of the influent water supply are as follows: Turbidity (Suspended Solids): Turbidity must be <...
- Page 5 UV Purification Systems Introduction How Your Wyckomar UV Water Purifier Works Untreated water enters the lower portion of the purification chamber and flows through the unit in an upward circular path. The spiraling movement assures the maximum irradiation of the fluid and prevents larger particles from blocking the treatment of microorganisms.
- Page 6 UV Purification Systems Setting Up Preparing to Install Your System Safety Precautions Please READ and FOLLOW all safety precautions. SAVE these instructions. Never expose your eyes directly to UV light. This UV system is designed for indoor use only. Do not use this UV system where it may be exposed to the elements.
- Page 7 UV unit. This is to make sure that there are no particles left in the water that are big enough to provide shade for microorgan- isms. Standard Wyckomar filter sets include a 5 micron sediment filter, as well as a carbon filter to remove additional contaminants.
- Page 8 UV Purification Systems Setting Up Typical Installation (Preparing to Install)

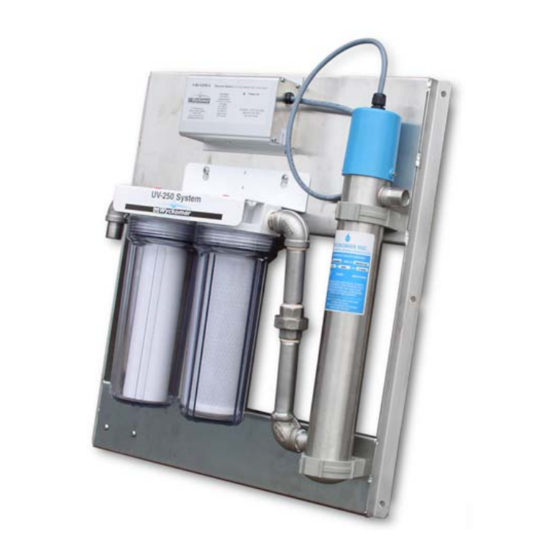

- Page 9 UV Purification Systems Setting Up Typical Installation (Preparing to Install) Installing pre- lter set Installing UV unit Completed installation with pre- lter set and UV. Inlet/outlet valves are recommended.
- Page 10 UV Purification Systems Setting Up Preparing to Install Your System Wyckomar purifiers are designed to be installed either at the main water supply line or at point of use. In some installations, particularly where plumbing is old, the water may become re-contaminated in the pipes between the purifier and the faucet.
- Page 11 UV Purification Systems Setting Up Installation Note the direction of water flow in the supply line to which the unit is being connected. Refer to the appropriate exploded diagram for your unit and check to see that you have all the necessary fittings. Parts List: 4 screws 1 quartz dome or sleeve, 1 or 2 O-rings 1 alcohol wipe 1 Allen key wrench...
- Page 12 UV Purification Systems Maintenance Disinfecting Your Water System After installing the UV unit, your water system must be disinfected beyond the UV unit itself. The following steps must be taken to accomplish this important task. Turn off the water supply to the UV unit and make sure that the by-pass valve is closed if equipped.
- Page 13 UV Purification Systems Maintenance Maintenance Procedures Ultraviolet Lamp Replacement The UV lamp located in the purification chamber will operate effectively for approximately 1 year under normal conditions. The lamp will still light after that period, but maximum UV light penetration may fall below the prescribed safety level.
- Page 14 UV Purification Systems Maintenance Maintenance Procedures Cleaning and Replacing the Quartz Dome/Sleeve Important: If water turbidity is a problem, it is advisable to clean the quartz dome/sleeve when replacing the lamp. Turn off the water supply and unplug the purifier from the electrical outlet.
- Page 15 UV Purification Systems Maintenance Troubleshooting Guide If problem persists, call Wyckomar Inc. for technical assistance. 1.800.419.5162 or 519.822.1886...
- Page 16 RL-12/254T5 UV Lamp 11-3 Quartz Dome Seal 2-211 Item Part No. Description 11-6 Quartz Disc Seal/Lamp O-ring 2-113 RQD-269 Quartz Dome Sleeve 22X25X269 UV-1 Chamber 8-29-1 Lamp Extension Spring 8-4-1 Plastic Cap Lamp Connector 8-50 End Washer 8-52 End Bushing...
- Page 17 UV Purification Systems Technical Info UV-250 Exploded Diagram & Parts List Item Part No. Description 4-BE-425W-U Ballast 10-5 Set Screw 8-51 Quartz Compression Nut RL-12/436T5 UV Lamp 11-3 Quartz Dome Seal 2-211 Item Part No. Description 11-6 Quartz Disc Seal/Lamp O-ring 2-113 RQD-438 Quartz Dome Sleeve 22X25X438 UV-250 Chamber...
- Page 18 UV Purification Systems Technical Info UV-700 Exploded Diagram & Parts List Item Part No. Description 4-BE-425W-U Ballast 10-5 Set Screw 8-51 Quartz Compression Nut RQD-895 Quartz Domed Sleeve 22x25x895 11-3 Quartz Sleeve Seal 2-211 RL-40/867T5 UV Lamp 11-6 Glass Disc Seal/Lamp O-ring 2-113 8-10 Viewport Outer Bushing Item Part No.
- Page 19 UV Purification Systems Technical Info UV-1200 Exploded Diagram & Parts List Item Part No. Description BE-800WL-1/2 Ballast 10-5 Set Screw 8-51 Quartz Compression Nut RQD-895 Quartz Domed Sleeve 22x25x895 11-3 Quartz Sleeve Seal 2-211 RL-84/893T5 UV Lamp 11-6 Glass Disc Seal/ Lamp O-ring 2-113 8-10 Viewport Outer Bushing...
- Page 20 UV Purification Systems Technical Info UV-1500 Exploded Diagram & Parts List Item Part No. Description BE-800WL-1/2 Ballast 10-5 Set Screw 8-53 Quartz Compression Nut 8-4-1 Large Blue Cap Lamp Connector RL-110/1197T5 UV Lamp RQS-1181 Quartz Open Sleeve 22x25x1181 11-6 Glass Disc Seal/ Lamp O-ring 2-113 11-3 Quartz Sleeve Seal 2-211...
- Page 21 UV Purification Systems Technical Info UV-3000 Exploded Diagram & Parts List Item Part No. Description 4-BE-800WL30-1/2 Ballast 10-5 Set Screw 8-40 Black End Cap 8-301 Quartz Compression Nut 11-10 Lamp O-ring 19x6 RL-100/1197T6 UV Lamp RQS-1190 Quartz Open Sleeve 32x36x1190 11-324 Quartz Sleeve Seal 2-324 8-30...
- Page 22 UV Purification Systems Technical Info UV-5000 Exploded Diagram, Parts List Item Part No. Description 4-BE-800WL-1/2 Ballast 10-5 Set Screw 8-53 Quartz Compression Nut RL-110/1197T5 UV Lamp 11-6 Quartz Disc Seal/ Lamp O-ring 2-113 11-3 Quartz Sleeve Seal 2-211 in newer UV-5000 Systems, the view port assemblies are located on top of the chamber Item...
- Page 23 UV Purification Systems Accessories Filter Sets Filter Sets are available in standard 10” and 20” configurations. We HIGHLY recommend a 5 micron sediment and a carbon filter be installed ahead of the UV unit in order to ensure proper UV operation. Commercial grade filter systems for higher flow rates are also available.
- Page 24 UV Purification Systems Accessories Changing Filter Cartridges Turn off the water supply to filter. Depress pressure release button (if present) to relieve pressure in filter housing. Unscrew housing with spanner wrench. Note: When opening filter housing, it is common for the O-ring/gasket to lift out of the housing and stick to cap.
- Page 25 UV Purification Systems Accessories Filter Maintenance and Troubleshooting Important: Do not use filter with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the unit. An activated carbon cartridge (Taste/Odour) may contain a small amount of carbon fines (very fine black powder).
- Page 26 UV Purification Systems Accessories Filter Cartridges Sediment and carbon filter cartridges are available from Wyckomar. Other types of filter cartridges for the removal of various contminants are also available (Arsenic, Fluoride, etc). Dissolved solids such as iron and manganese have an effect on the clarity of the water and therefore on the efficacy of the UV disinfection process.
- Page 27 UV Purification Systems Accessories UV-Monitor The Wyckomar UV Monitor measures true UV intensity at 254 nm, which is the effective germicidal wavelength for UV treatment of drink- ing water. It continuously monitors lamp output inside the reaction chamber through a sensor in the viewport, regardless of whether or not water is flowing through the system.
- Page 28 UV output of the lamp. No power is required. Hour Meter The electronic ballast of any Wyckomar UV system can be equipped with an optional resettable hour meter, displaying the total run time of the lamp. This is conve-...
- Page 29 Wyckomar Inc. warrants to the first purchaser of the UV unit that the UV reactor chamber will be free from faulty material and/or workmanship for a period of 5 years from date of purchase.
- Page 30 UV Purification Systems Warranty Registration Card Please fill out your Wyckomar Product Registration Card and return it to the manufacturer. Alternatively, you may email the information to sales@wyckomaruv.com or fill the form out online at www.wyckomaruv.com/Warranty.html Last Name First Name...
- Page 31 Wyckomar means chemical-free Wyckomar Inc. has been manufacturing Chemical-Free Ultra Violet Water Purification and Filtration Systems since 1978 Currently, we sell our products in more than 25 countries around the globe. Our products are very environmental-friendly by reducing or eliminating the need for chemical-based water disinfection systems.
- Page 32 111 Malcolm Road Guelph, Ontario Canada N1K 1A8 Ph. ++1-519-822-1886 Fx. ++1-519-763-6580 www.wyckomaruv.com sales@wyckomaruv.com...
