Do you have a question about the TVPRP868N09 and is the answer not in the manual?
Questions and answers
W Davies
March 7, 2025
How to adjust motor torque control
1 comments:
Mr. Anderson
March 7, 2025
To adjust the motor torque control for the TELECO AUTOMATION TVPRP868N09:
1. Ensure the control unit has been powered on for no more than 30 seconds. 2. Press and hold the internal P3 button on a memorized transmitter for 5 seconds until the buzzer emits one beep. 3. Release the button, then press it again four times within 5 seconds. 4. The buzzer will emit: - One beep if the function is deactivated. - Two beeps if the function is activated.
This procedure enables or disables motor torque control, which monitors the motor's current level and stops or reverses movement if excessive effort is detected.
This answer is automatically generated
David Price
February 15, 2025
Hi, my roller door will open perfectly with the control buttons but will not close from any position. The unit beeps 5 times. We have changed the batteries in the safety sensor on the bottom of the door also. Can anyone advise?
1 comments:
Mr. Anderson
February 15, 2025
If the TELECO AUTOMATION TVPRP868N09 roller door beeps 5 times and will not close, it indicates that the bottom slat transmitter (TCSP) has low batteries. The batteries should be replaced as soon as possible using only compatible Lithium 3.6V batteries, ensuring the correct polarity.
This answer is automatically generated
Alan reynolds
June 6, 2025
I can get my door to stop when going up but cannot get it to stop when going down
Can I have some advice on this issue please
Alan
March 28, 2025
Hi how do I reset the holiday settings on my TVPRP868NO9
Subscribe to Our Youtube Channel
Summary of Contents for TELECO AUTOMATION TVPRP868N09
Page 1
Control system for garage doors Installer’s instruction manual Product: TVPRP868N09 Doc: T611.02 Date: 23/03/2016...
Page 2
INDEX 1. PRODUCT DESCRIPTION --------------------------------------------------------------- p. 3 2. INSTALLATION ----------------------------------------------------------------------- p. 4 2.1 Mounting the product p. 5 2.2 Mounting the wireless safety system p. 6 2.3 Control unit diagram p. 7 2.4 Electrical connections p. 7 2.5 Wired safety device connections p.

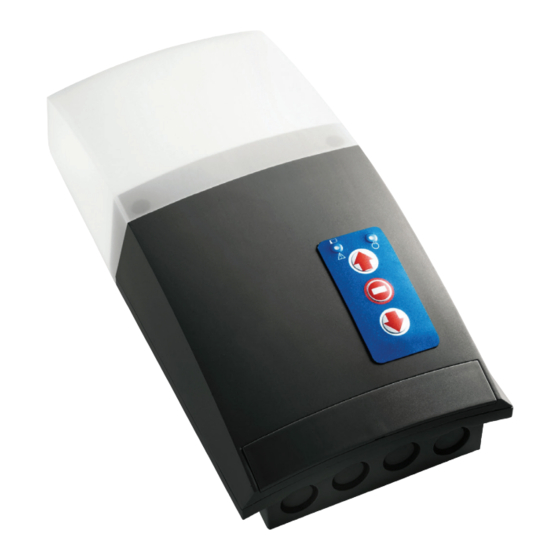

1. PRODUCT DESCRIPTION Teleco TVPRP868N09 Control unit with integrated radio receiver for the remote control of tubular motors up to 400W, with built-in limit switch, for rolling shutters and rolling doors. FEATURES Plastic case with easy fixing, front cover with up/stop/down buttons and integrated courtesy light...
2.1 MOUNTING THE PRODUCT OPENING THE COVER BOX DIMENSIONS 80 mm 290 mm MOUNTING SIDE 85 mm 145 mm 95 mm...
Page 6
2.2 MOUNTING THE WIRELESS SAFETY SYSTEM The system is composed by a radio card (MASTER), plugged in the control unit, and a wireless transmitter (SLAVE) mounted on the door, usually close to the bottom slat, connected to the safety device. Such device can be both type: 8,2KOhm resistive barrier safety edge or infrared low-consumption barrier.
3. PRELIMINARY CHECK AND INITIAL START-UP • Step 1: motor limit switch setting A proper connection box should be used to set the limit switch before wiring the motor in the control unit. • Step 2: motor connection and powering the board up Once the limit switches are set connect the motor to control unit and start the system up.
Page 10
3.1 Deactivation of wireless safety system • Step 1: switch the unit off This function is possible ONLY within 30 seconds from the power on of the control unit. • Step 2: switch the unit on and move DIP1 to OFF within 30 seconds By default DIP1 is ON (system activated).
Page 11
4. Transmitter memorization (using P1 button, see location at page 7) OPEN - STOP - CLOSE 4.1 Single channel memorization Memorization of a single button of any transmitter, with function OPEN - STOP - CLOSE keep it pressed Press P1 once and keep it pressed. button to memorize The buzzer emits a continuous sound.
Page 12
4.4 Alarm function: shock sensor memorization The wireless shock sensor (optional) detects any attempt of breaking or entering and send a signal to the control unit that will activate the speaker (optional) for 1 minute. L6 turns ON. It is possible TVSSH868A01 to set the sensor sensitivity by means of the dip DIP1 DIP2 Sensitivity...
Page 13
5. Transmitters deletion (using P1 button, see location at page 7) 5.1 Deleting a single transmitter keep it pressed Press P1 four times and keep it pressed. button to delete The buzzer emits an intermittent sound. Press the button of the transmitter to delete. Once the deletion is successfully completed, the buzzer emits a continuous sound.
Page 14
6.1 Auto close time setting This procedure configures the time lapse between complete opening and the automatic closure (if enabled). The default time is 5 seconds. It is possible to set the time from 5 seconds to 90 seconds. Note: The procedure can be executed only within 30 seconds from power on. The control unit will add by default 5 seconds to the time measured in the procedure.
Page 15
7.1 Motor torque control This procedure activates or deactivates the motor torque control. The control unit will costantly check the level of current required by the motor during the movement in order to detect any anomaly in the normal operation of the door.
Hereby Teleco automation s.r.l. declares that the products comply with the essential requirements and other relevant provisions, established by the Directive 1999/5/EC. The declaration of conformity can be consulted on the web site: www.telecoautomation.com/ce In the view of a constant development of their products, the...
Page 17
9. TROUBLESHOOTING (What to do if...) Acoustic signals from the control unit Sequence Meaning Solution 1 costant beep Faulty control unit Replace the control unit (continuous or intermittent) 2 beeps Motor problem - Set the limit switches - The thermal protection could be activated. Wait while the motor cools down.
Led in the front cover ON: safety alarm activate (see the specific alarm). OFF: normal functioning. 1 flash - pause: keypad locked (holiday mode). Flashing slowly: low batteries in the bottom slat transmitter (TCSP) ON: The control unit is powered. Safety devices FTC Led ON: normal functioning.
(under the sunshade in a car for instance). Do not use your nails to press the key as they could damage the keys.Hereby Teleco automation s.r.l. declares that the products comply with the essential requirements and other relevant provisions, established by the Directive 1999/5/EC.
