AMIAD WATER SYSTEMS Ltd.
Serial number:
Order number:
Catalog number:
Filtration degree:
Tested by:
3" Spin Klin Ext.
3" Spin Klin Battery
External Source
Automatic back-flush
Installation and Operation
Instructions
910101-000929 / 09.2017
_______________
_______________
_______________
_______________
_______________
910101-000929/ September 2017
Page 1 of 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spin Klin and is the answer not in the manual?

Questions and answers

Summary of Contents for amiad Spin Klin

  • Page 1 AMIAD WATER SYSTEMS Ltd. 3” Spin Klin Battery External Source Automatic back-flush Serial number: _______________ Order number: _______________ Catalog number: _______________ Filtration degree: _______________ Tested by: _______________ Installation and Operation Instructions 910101-000929/ September 2017 3” Spin Klin Ext. 910101-000929 / 09.2017...
  • Page 2 This document does not replace any certified drawing, procedure or information provided by Amiad in reference to a specific customer, site or project. Amiad assumes that all users understand risks involved within this file and/or its attached materials. This document is given in good faith and is not intended to impose any obligation to Amiad.

  • Page 3: Table Of Contents

    5. DESCRIPTION AND FILTER OPERATION ....................12 6. TECHNICAL DATA ..........................13 7. INSTALLATION AND OPERATION......................14 8. SPIN KLIN SYSTEM MAINTENANCE ...................... 17 9. TROUBLESHOOTING ..........................21 10. FILTER PARTS SCHEDULE AND PARTS LIST ..................22 11. VALVES - PARTS SCHEDULE AND PARTS LIST ..................23 11.1 STANDARD VALVES PARTS LIST...

  • Page 4: Introduction

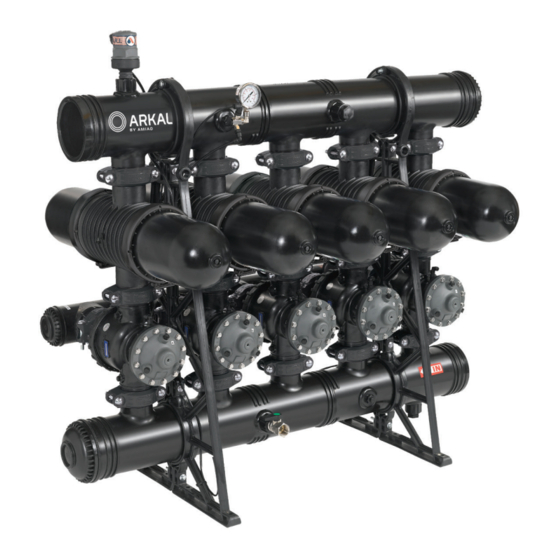

    For operation and maintenance of this filter, please follow the instructions in this manual. This 3” Spin Klin battery is an automatic self-cleaning filter battery designed for non-hazardous liquids only and for operation within the pressure framework specifications.
  • Page 5 ➢ Do not leave lifted equipment if there is no necessity. Avoid working below lifted equipment. ➢ Wear a safety helmet while using lifting equipment. ➢ Make sure that the flooring is sloped for drainage and to avoid accumulation of liquids. 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 5 of 28...

  • Page 6: Commissioning

    ➢ Inspect the filter’s safety stickers and replace any damaged or faded stickers. Special Note Before opening the filter lock, check that there is no pressure in the filter. 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 6 of 28...

  • Page 7: Standard System Dimensions

    26.0 5-unit battery 1,650 65.0 1613 63.5 26.0 6-unit battery 1,650 65.0 1613 63.5 26.0 7-unit battery 2,470 97.2 1613 63.5 29.2 8-unit battery 2,718 107.0 1613 63.5 29.2 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 7 of 28...

  • Page 8: Description & Operation

    4. DESCRIPTION & OPERATION Disc Filtration Technology Amiad Water Systems uses a specially designed disc filtration technology. Thin, color-coded polypropylene/ nylon discs are diagonally grooved on both sides to a specific micron size. A series of these discs are then stacked and compressed on a specially designed spine. When stacked, the groove on top runs opposite to the groove below, creating a filtration element with a statistically significant series of valleys and traps for solids.
  • Page 9 Spin Klin Technology Spin Klin Spine - The Core of the Spin Klin Filtration System ® ® The Spin Klin discs are stacked on the Spin Klin spine. The discs are color-coded according to micron size and are assembled to suit the water filtration requirements.
  • Page 10 [2] closes, port [1] opens, allowing flushing water to flow to port [C]. Inlet Valve Filtration Mode Inlet Valve Back-flush Mode Outlet Valve Back-flush Mode Outlet Valve Filtration Mode 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 10 of 28...
  • Page 11 Modes of Operation OUTLET BackFlush valve Filters in Filtration mode EX. SOURCE Filter in BackFlush mode 3" S.K. Filter DRAIN INLET 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 11 of 28...

  • Page 12: Description And Filter Operation

    During the filtration stage, water flows through the INLET manifold and is distributed through the first 3”x3” back-flush valves into the Spin Klin filters. The water then passes through the filters' elements to the outlet manifold through the second 3”x3” back- flush valves for consumer use.

  • Page 13: Technical Data

    Disc elements PP (Polypropylene) or PA (Polyamide) Backwash valves RPA (Reinforce Polyamide) or RPP (Reinforce Polypropylene) Manifolds PP (Polypropylene) Seals NBR or EPDM, (Viton optional) Control Tubing PE or PA 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 13 of 28...

  • Page 14: Installation And Operation

    • Typically, the Back-flush Cycle Time is used as a backup for the DP switch; any signal that triggers a back- flushing cycle resets the back-flush cycle timer (including Manual Start command). 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 14 of 28...
  • Page 15 Control Scheme - External Source for back flush 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 15 of 28...
  • Page 16 G. Perform an additional back-flushing cycle manually by rotating the operation handle (turn clockwise 90⁰) located on the solenoid valve. Make sure to rotate the handle back to automatic mode once the back- flushing starts. 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 16 of 28...

  • Page 17: Spin Klin System Maintenance

    Monthly Maintenance Check the inlet /outlet pressures: When the pressure differential is above 5m / 7 PSI, activate automatic back-flush of the Spin Klin system. In the event that the pressure differential remains high, check for possible failures. Check for leakages from the drain manifold: When there is a leakage of water to the drain during the filtration stage, check for possible failure of the back- flush valve seals.
  • Page 18 (Figure 8) Put on the tightening cylinder and tighten the butterfly-nut, then reassemble the filter cover and tighten the clamp (Figures 9, 10) Figure 9 Figure 10 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 18 of 28...
  • Page 19 The cleaning solution can be used for several sets of discs. As the cleaning activity of the solution deteriorates, it may be necessary to soak the discs for a longer time. 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 19 of 28...
  • Page 20 Rinse the discs well between the two cleaning processes. If the deposit hasn’t been completely removed, send a set of untreated discs to the laboratory for further examination. 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 20 of 28...

  • Page 21: Troubleshooting

    Repair the valve if needed No command transfer Command transfer Replace control panel Check the solenoid No command transfer Command transfer Replace the solenoid if needed Contact your local distributor 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 21 of 28...

  • Page 22: Filter Parts Schedule And Parts List

    3"SK SPINE ADAPTOR RPP GREY DW 710101-000082 PARKER O-RING 2-234 EPDM 70 SHORE YELLOW DOT 770102-000295 CONE MEMBRANE NATURAL 65 SHORE 2"SPIN KLIN 770104-000065 CONE MEMBRANE EPDM 70 SHORE 2.7SPIN KLIN DW 770104-000055 CONE MEMBRANE VITON 70 SHORE 2.7SPIN KLIN 770104-000003 CONE MEMBRANE NBR 70 SHORE 2.7SPIN KLIN...

  • Page 23: Valves - Parts Schedule And Parts List

    11. VALVES - PARTS SCHEDULE AND PARTS LIST 350 Series Plastic Back-flush Filter Valve - Double Chamber Straight/Angle & Reverse Flow Size: 3"x3" 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 23 of 28...

  • Page 24: Standard Valves Parts List

    FIXING NUT F/3" STRAIGHT FLOW PLASTIC BERMAD 730113-000394 SEALS + DIAPHRAGM KIT F/3" 350 BERMAD 730113-000767 DIAPHRAGM FOR 3X3 BERMAD VALVE 730113-000538 SEAL F/3*2BER 730113-000359 BOLTS-NUTS KIT F/3" 350 BERMAD 730113-000766 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 24 of 28...

  • Page 25: Aw Valves Parts List

    FIXING NUT F/3" STRAIGHT FLOW PLASTIC BERMAD 730113-000394 SEALS + DIAPHRAGM KIT F/3" 350 BERMAD 730113-000767 DIAPHRAGM FOR 3X3 BERMAD VALVE 730113-000538 SEAL F/3*2BER 730113-000359 BOLTS-NUTS KIT F/3" 350 BERMAD 730113-000766 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 25 of 28...
  • Page 26 FIXING NUT F/3" STRAIGHT FLOW PLASTIC BERMAD 730113-000394 SEALS + DIAPHRAGM KIT F/3" 350 BERMAD 730113-000767 DIAPHRAGM FOR 3X3 BERMAD VALVE 730113-000538 SEAL F/3*2BER 730113-000359 BOLTS-NUTS KIT F/3" 350 BERMAD 730113-000766 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 26 of 28...

  • Page 27: System Drawings

    12. SYSTEM DRAWINGS to be amended per each specific ordered 3” Spin Klin Ext. 910101-000929 / 09.2017 Page 27 of 28...

  • Page 28: Amiad Limited Warranty

    Amiad's obligation under this warranty shall be limited to, at its option, the repair or exchange, free of charge, of the Product or any part which may prove defective under normal use and service during the Warranty Period. The provision of a repaired or...
