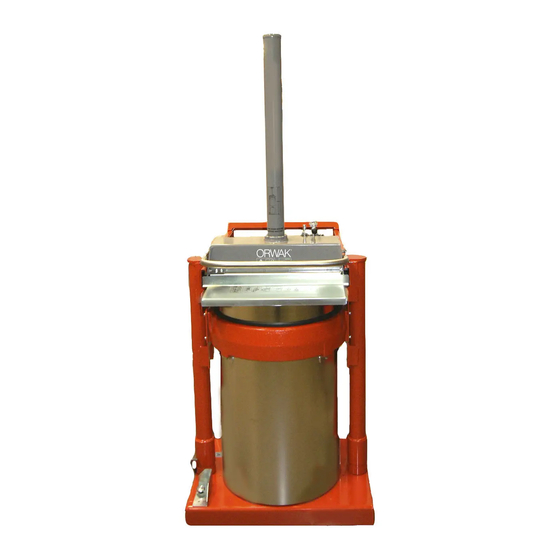

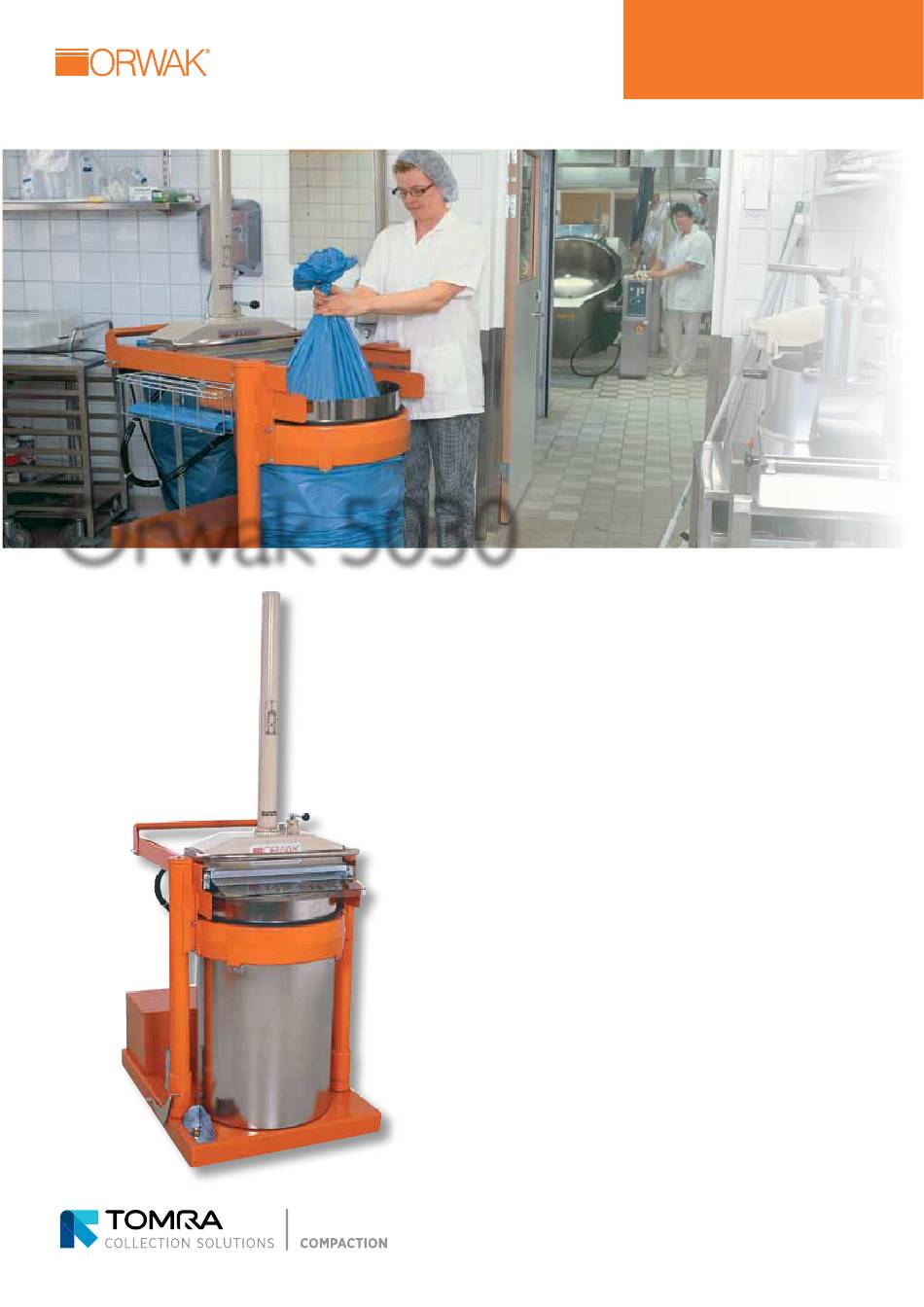

- Page 1 Edition 8, From serial no. 106000- Publ. no 4869699-00 OM 5030, 2012-02 Orwak 5030 OPERATING INSTRUCTIONS (IN THE ORIGINAL)
-
Page 2: Table Of Contents
English CONTENTS SAFETY Safety ........8 Please read the operating instructions BEFORE operating the machine. Operating instructions..9 Our warranty/product responsibility requires that: instructions are followed, and that no conversion or modification is carried Technical specifications ..10 • out. Dimensional sketch ..10 • original spare parts, and hydraulic oils and lubricants recommended by the Transport ......10 machine manufacturer are used. -
Page 3: Operating Instructions
English OPERATING INSTRUCTIONS WARNING! Only the operator Plastic bag installation is allowed in the (4872291-00) machine’s working area! Plastic bag installation Press down the button on the bottom plate for at least two seconds. Then press the foot pedal as shown in the picture. -
Page 4: Technical Specifications
English 5030 5030 TECHNICAL DIMENSIONS A=2660 A=2660 SPECIFICATIONS B=785 B=785 C=1005 C=1005 GENERAL DATA D=1940 D=1940 Total weight: 310 kg E=1100 E=1100 5030 Chamber: 239 kg A=2660 Press unit: 71 kg B=785 C=1005 Dimensions: D=1940 Height: 1940 mm E=1100 Width: 785 mm Depth: 1005 mm... -
Page 5: Installation
English INSTALLATION 5030 / 5031 (5030C: 2400 mm) (5030BMT: 2100 mm) Box 58 576 22 Sävsjö Sweden Type Serial No Product No Date Weight 91651... -
Page 6: Weekly Inspection And Maintenance
English WEEKLY INSPECTION AND MAINTENANCE NOTE! During inspection and maintenance, service work and the removal of trapped waste etc.: 1. Always place the valve lever in the neutral position and disconnect the plug. 2. Do not work inside the machine SAFETY CHECK - Check the limit switch and the plastic piston that is actuated by the switch in accordance with the instructions in the service instruction. - Page 7 English EC DECLARATION OF CONFORMITY AB ORWAK Box 58 S-576 22 Sävsjö, Sweden Tel: 46-382-15700 Telefax: 46-382-10607 declares under its sole responsibility that the product model (serial number specified on the first page) 4905030-00 - 4905030-99 4905030-S001 - 4905030-S999 to which this declaration relates is in conformity with the following standards or other normative documents following the provisions of Directive 2006/42/EEC (Machinery Directive) 2004/108/EEC (EMC Directive)
- Page 8 “Brickman” bri - Orwak is wholly owned by the Norwegian company quette presses for recyclable materials that make waste Tomra, a leading global player in providing integrated management more profitable. This is where Orwak’s solutions for recovering and recycling used packaging.
Need help?
Do you have a question about the Orwak 5030 Series and is the answer not in the manual?
Questions and answers
Orwak stopped in middle of process and we cannot start it.
A Tomra 5030 Series machine could stop in the middle of a process if any safety functions (such as switches or protections) are deactivated, damaged, or removed. It may also stop if operated by an untrained person or if used in unsuitable environmental conditions (e.g., areas with explosion risk or without proper shelter and lighting).
To restart the machine:
1. Ensure all safety functions are intact and operational.
2. Confirm the machine is in a suitable environment.
3. Make sure the operator is trained and authorized.
4. If parts are damaged or missing, replace them with original spare parts.
5. If the press plate was raised, lower it fully before moving or restarting the machine.
Only qualified personnel should perform installation or service work.
