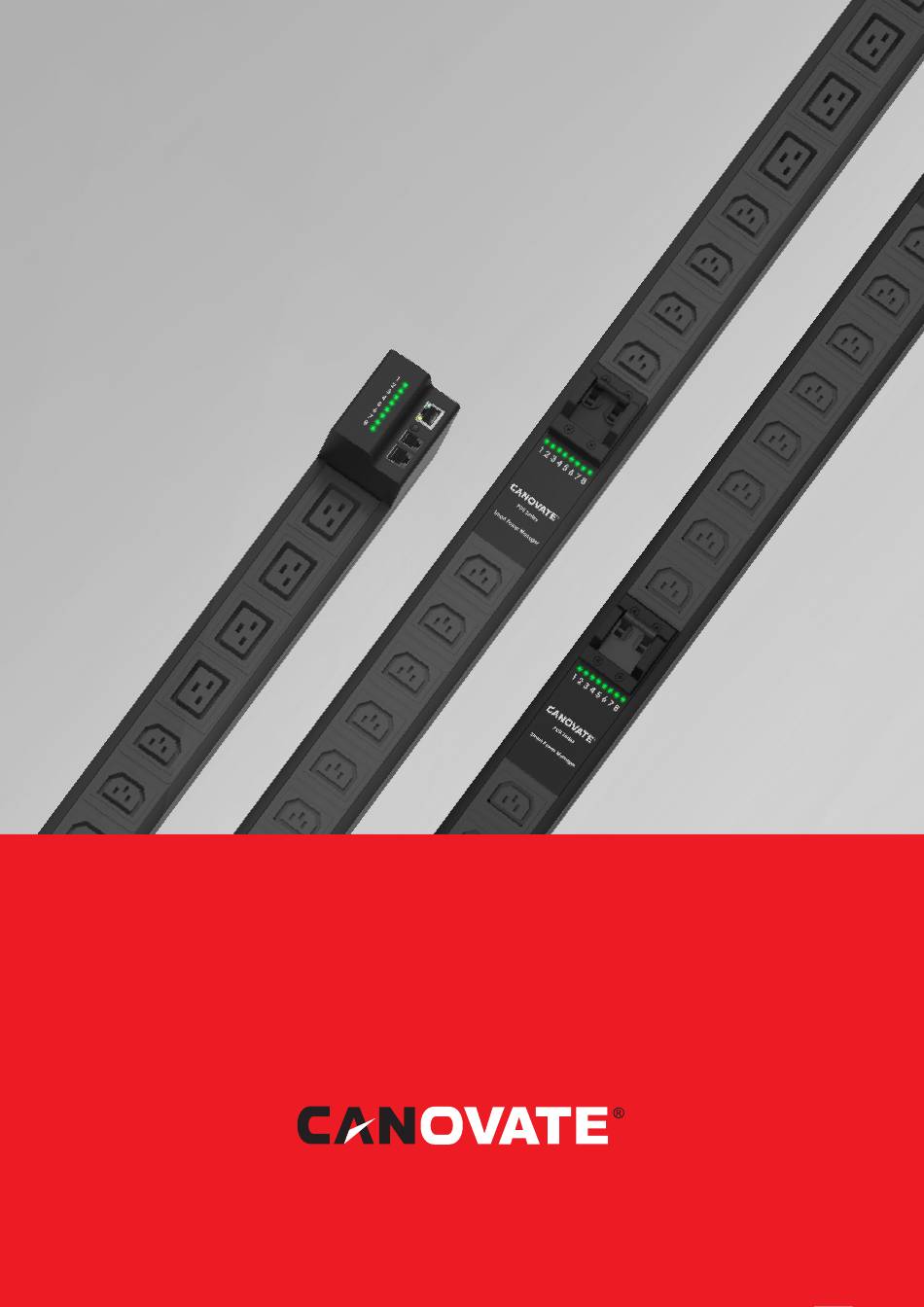

IP PDU SERIES
USER MANUAL
1
Canovate Elk.End.Tic.A.S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP PDU Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Canovate IP PDU Series

  • Page 1 IP PDU SERIES USER MANUAL Canovate Elk.End.Tic.A.S...
  • Page 2: Table Of Contents

    TABLE OF CONTESTS CANOVATE IP-PDU............................. WARRANTY AND SERVICE INSTRUCTIONS ....................Unboxing Control..........................03 - 04 Unboxing Control..........................International Electrical Symbols...................... Terms of Use............................IP PDU FEATURES............................CONNECTION TO COMPUTER........................CONNECTION TO SERVER.......................... IP-PDU WEB INTERFACE OUTLINE ......................IP-PDU WEB INTERFACE OUTLINE.......................
  • Page 3: Canovate Ip-Pdu

    CANOVATE “IP PDU” Canovate offers reliable, high quality data center power distribution units (PDUs) designed for maximum per- formance. Data centers of industries like Telecom, Hosting & Colocation, Finance, Insurance, Education, Power, Aeros- pace, Medical, E-government, Utilities like Oil, Gas, Water companies and also Industry 4.0 and Internet of things etc.
  • Page 4: International Electrical Symbols

    Before unplugging any other device connected to the device sockets, bring the corresponding outlet to the off position. • Never interfere with the internal circuit of the device. • Never clean the appliance with damp or wet material. Canovate Elk.End.Tic.A.S...
  • Page 5: Ip Pdu Features

    Suitable for 1.5U rack mounting CONNECTION TO COMPUTER DSL/Router/Hub/Switch Power ADSL DATA ETHERNET Power ADSL DATA ETHERNET Ethernet connection to Router / Hub / Switch / ADSL for IP PDU Ethernet connection of IP PDU to PC Cable Type: Automatically detects. Canovate Elk.End.Tic.A.S...
  • Page 6: Connection To Server

    CONNECTION TO SERVER POWER INPUT Canovate Elk.End.Tic.A.S...
  • Page 7: Ip-Pdu Web Interface Outline

    PRODUCT PICTURE AND DESCRIPTION Ethernet Entry Reset Button Combo Temperature and Humidity Sensor Dry Contact Input Led Indicators 1’to....8’ ON/OFF Circuit Breaker Socket Group Circuit Breaker Commando Power Cable 1 Phase Canovate Elk.End.Tic.A.S...
  • Page 8: Ip-Pdu Web Interface Outline

    IP- PDU WEB INTERFACE ENVIRONMENTAL MONITORING - SENSORS Shows measurement values for any attached sensors - TEMP & HUMIDITY GRAPHS Shows measurement values for any attached sensors POWER MONITORING - ENERGY METER FEEDS Voltage, current, power and energy measurements OUTLET CONTROL - INDIVIDUAL Turn on-off, operate in time schedule CONFIGURATION...
  • Page 9: Accessing Web Interface

    Your computer must be in the same network subnet. If not, change your computer’s IP address to 192.168.1.99, as shown in example below: By checking the PC’s netmask and gateway settings, Netmask : 255.255.255.0, Gateway : 192.168.1.1 Canovate Elk.End.Tic.A.S...
  • Page 10 IP adres: 192.168.1.99 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 If you log in successfully, you will see the following screen, you can start to check your IP PDU after seeing the screen. Canovate Elk.End.Tic.A.S...
  • Page 11: Environmental Monitoring

    In general, monitoring in broader scope is done by dedicated environmental monitoring units, with which our IP-PDU can integrate over SNMP protocol. 3- Power Monitoring Navigate to “Power Monitoring”, then “Energy Meter Feeds”. You can monitor voltage (Volt), current (Ampere), power (Kw) and energy measurements from this screen. Canovate Elk.End.Tic.A.S...
  • Page 12: Individual Outlet Control And Rename

    To operate something in interval, click on corresponding “Use Interval” column and specify run and • stop minutes. This option may be used to allow the connected equipment to cool and re-run it. To rename the outlets, navigate to “Configuration” - “Outlets”, rename and apply changes. Canovate Elk.End.Tic.A.S...
  • Page 13: System Information

    5- System Information Navigate to “Configuration”, then “System” to view the system information, firmware revision etc. 6- Changing Network Settings Navigate to “Configuration”, then “Network” Canovate Elk.End.Tic.A.S...
  • Page 14: Modifying Network Settings

    Regardless of the number of sensors, the first eight sockets can be associated in alarm situations. NOTE: In defining limits for sensors, the upper and lower limits change the alarm type. Low:40 High:20 Low > High Alarm Alarm Low:10 High:20 Low < High Alarm Canovate Elk.End.Tic.A.S...
  • Page 15: Http

    Enabling and disabling the web server and changing the port number is done from the HTTP heading. 9- Manage Users Navigate to “Configuration”, then “Users”. You can add users, delete them, change passwords, and restrict user access from this section. Canovate Elk.End.Tic.A.S...
  • Page 16: Time Server Configuration (Sntp)

    We recommend that public or local time server (SNTP) be enabled and used as main time server. For backup purposes, IP-PDU has built-in timer that may operate on its own. 11- SNMP Navigate to “Configuration”, then “SNMP” for SNMP settings. Canovate Elk.End.Tic.A.S...
  • Page 17: Email

    The SMTP server (email sender) configuration is checked by going to the Email heading from the Configura- tion menu. 13- Wake on LAN Navigate to “Configuration”, then “Wake on LAN”. You can access the settings used to remotely turn on computers through LAN. Canovate Elk.End.Tic.A.S...
  • Page 18: Password Change

    Verify New Password field and clicking Apply. 15- Logs Navigate to “Administration”, then “Logs”. You can see the last 50 logs. Canovate Elk.End.Tic.A.S...
  • Page 19: Restoring To Factroy Settings

    Resets the IP-PDU to factory defaults, it causes all sensor, log, and use data loss. IP address and password then become as factory settings. (Default IP address: 192.168.1.45 Default login: admin Default password:admin1) 17- Logout Click the Log Out heading to exit the IP PDU’s web interface. If you exit, the following screen will appear. Canovate Elk.End.Tic.A.S...
  • Page 20: Parameters

    Does the IP PDU have a daisy-chain connection? It can be used as master-slave. In this case expansion module is not available. • What type of cable should be used between the computer and IP PDU? Automatically regulates itself. Canovate Elk.End.Tic.A.S...
  • Page 21: Standarts

    CISPR 32 / C.E. 7 -Radiated Emission CISPR 32 / R.E. 8 - Voltage Dips,Short Interruptions and Voltage Variations Immunity Test 61000-4-11 9 - Power Frequency Magnetic Field 61000-4-8 10 - Voltage Variations and Flicker 61000-3-3 61000-3-2 11 - Harmonics Canovate Elk.End.Tic.A.S...
  • Page 22: Notes

    20- Notes: ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Canovate Elk.End.Tic.A.S...
  • Page 24 Ekşioglu Mah. Atabey Cad. No: 12 Çekmekoy, İSTANBUL, TR 34794 T: +90 (216) 484 22 22 F: +90 (216) 484 05 06 www.canovate.com 20190412-IPPDU / Rev.00 Canovate Elk.End.Tic.A.S...
