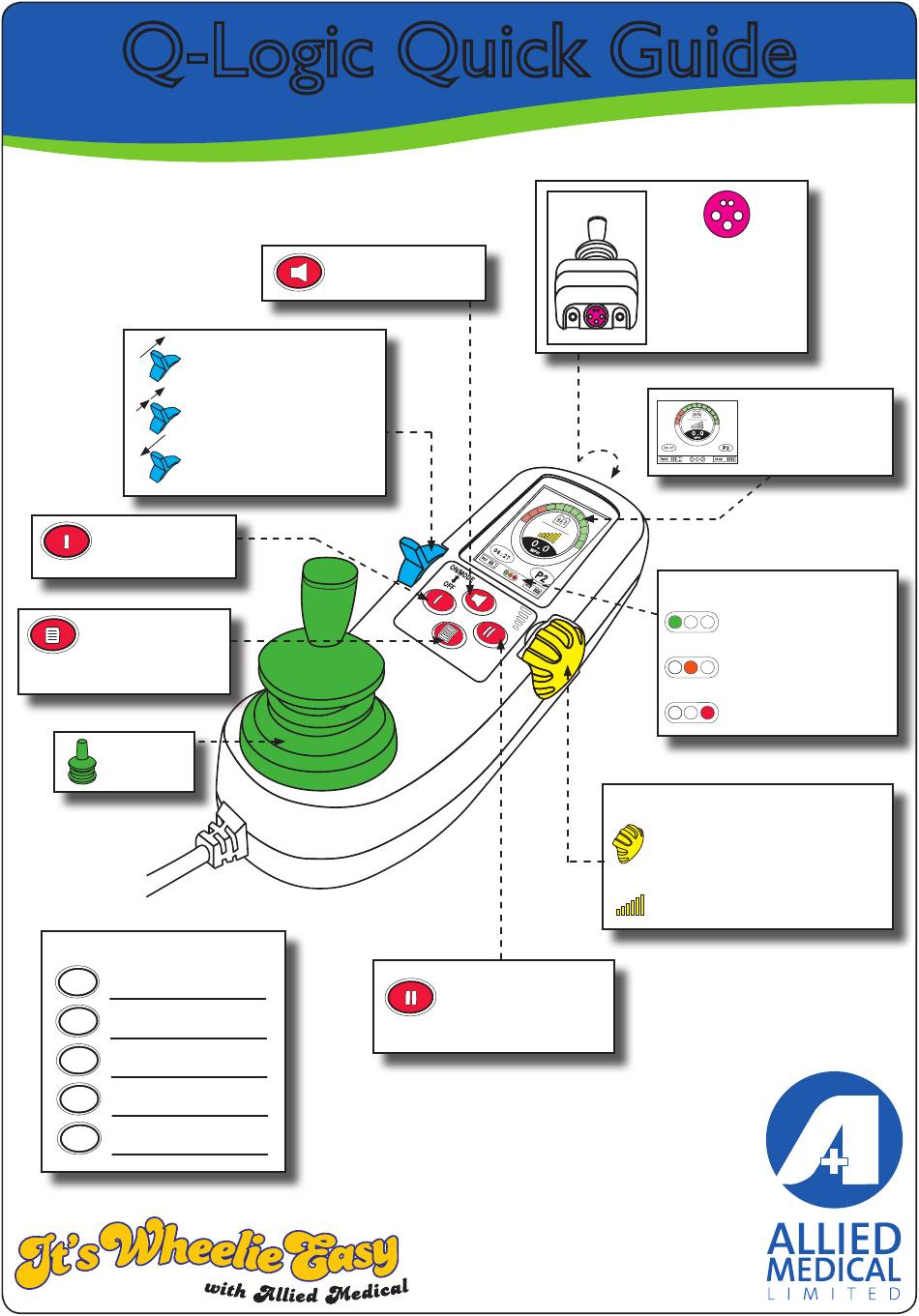

Q-Logic Quick Guide
On/Off/Mode Switch
Flick up to turn on your chair.
Flick up again to cycle through
my profiles (P1, P2, Seat, etc).
Flick down to turn chair off.
Drive Button
Quickly selects drive
mode.
Menu Button
Selects menu options
for changing display
settings.
Joystick
My Profiles
P1
P2
P3
P4
P5
Horn Button
Seat Functions
Quickly selects powered
seat functions, e.g. Tilt-in-
space.
greatwheelchairs@alliedmedical.co.nz
Front View
Charger Port
This is where you plug
in your charger.
Remember to charge
your chair every night.
Drive Indicator
Drive active - your chair will
move as normal
Speed limited - your seat is
raised and will drive slowly.
Drive stopped - your chair is
tilted too far back.
Maximum Speed Knob
Adjusts the maximum speed of the chair.
Roll down to lower maximum speed.
Roll up to increase maximum speed.
You can see what speed is set in the
middle of the display.
PO Box 302 250
North Harbour
Auckland
Freephone 0800 31 61 81
Ph 09 415 1685
Fax 09 415 1686
www.alliedmedical.co.nz
Battery Meter
Shows how much charge
you have remaining.
