Teaching Additional
Using this Guide
From time to time, key fobs are lost, stolen, or just cease to work. In
cases like these, new replacements will be needed to take full advantage
of everything TriMark Keyless Entry systems have to offer. This
document explains how to teach (or re-teach) key fobs to a TriMark
Keyless Entry RF Receiver module. Currently, there are four RF systems
sold by TriMark. All but one has a basic module part number printed
clearly on the primary sticker. Use that part number to find the correct
re-programming instructions for your system.
Will this guide help you?
If your keyless entry system is not
manufactured by TriMark, this guide will not
help you. Check the back of the key fob if
you are unsure. If the FCC ID number is TV2
EFOBI or TV2 EFOBII, then you have a
TriMark keyless entry system. If the FCC ID
number is JLFTX4, you have an obsolete
TriMark Keyless Entry system that is not
covered in this guide. Refer to UM-02 for
help with that system. All other FCC ID
numbers are not TriMark systems.

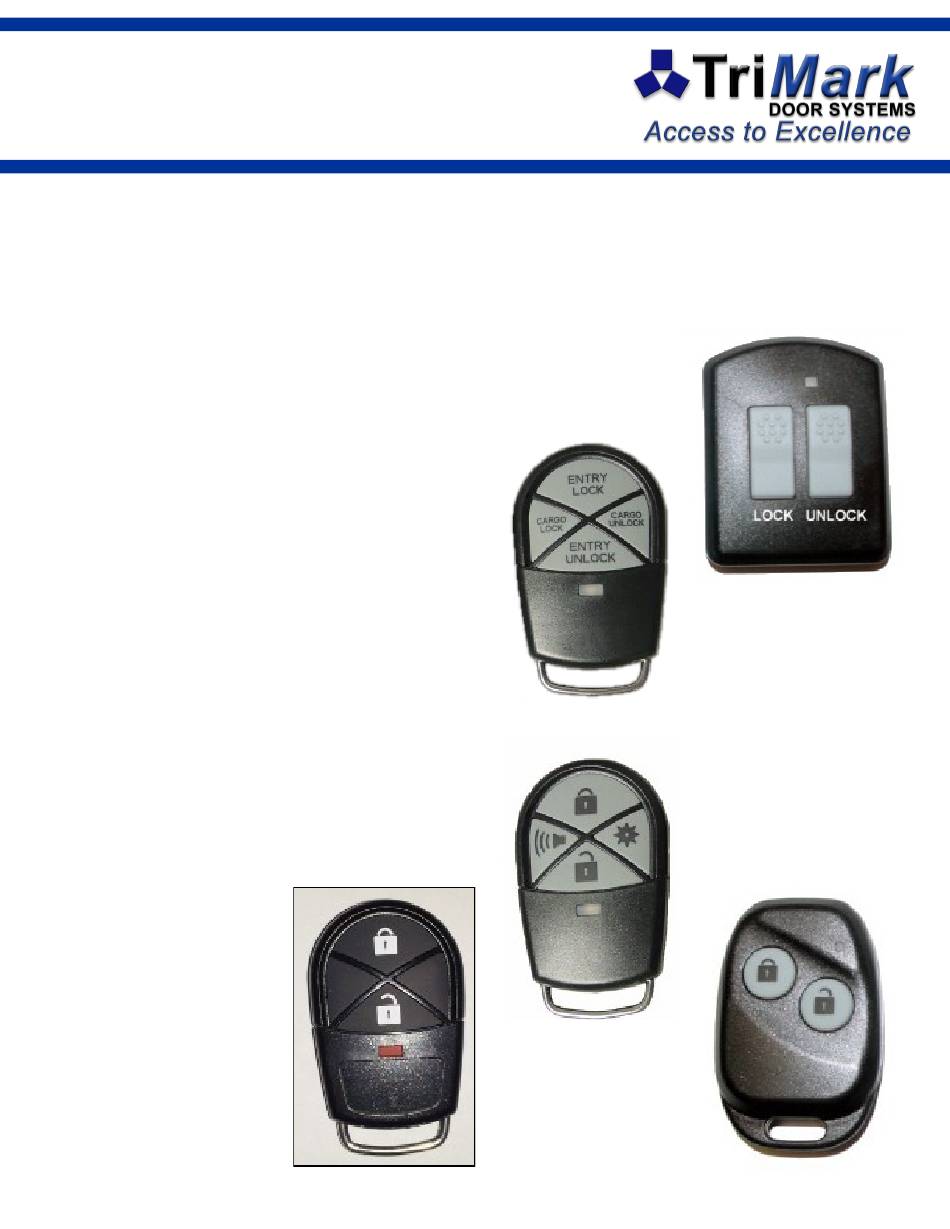

Various TriMark
Transmitter Styles
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for TriMark 22314-01
- Page 1 (or re-teach) key fobs to a TriMark Keyless Entry RF Receiver module. Currently, there are four RF systems sold by TriMark. All but one has a basic module part number printed clearly on the primary sticker. Use that part number to find the correct re-programming instructions for your system.
- Page 2 Teaching Additional FOB Transmitters TM-Multi RF Receiver 22314-01 Programming Button / LED 1. Turn ignition off (or confirm no connection to pin 7 of 10 pin connector-yellow wire). 2. Press and release the programming button 3 times. The LED will turn on after about 2 seconds.
- Page 3 Teaching Additional FOB Transmitters TM-Full Function RF Receiver 22310-01 1. Plug the LED into C6 and the push button into C7 on the receiver. These may already be plugged into your module by the OEM. 2. Turn ignition off and/or disarm alarm. 3.

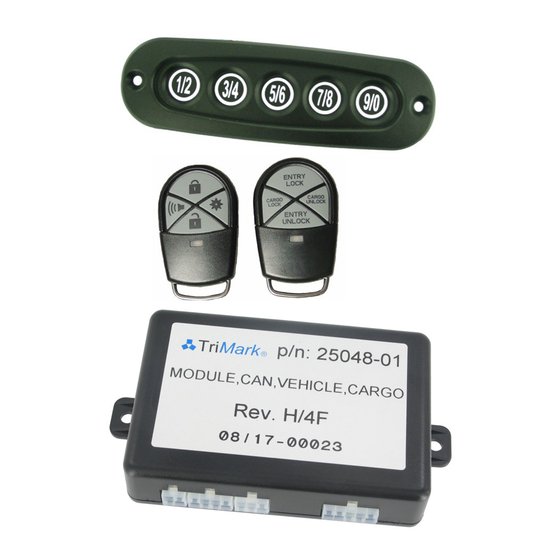

- Page 4 FOB Transmitters TriMark CAN Vehicle RF Receiver 25048-01 Programming key fobs to this device requires the use of the TriMark Keypad 1. Hold the [5 / 6] button (or [3] for doorbell versions) of the keypad for 5 seconds. The key- pad will beep and the backlight will flash.
- Page 5 TriMark CAN Door RF Receiver 24322-02 Programming key fobs to this device requires the use of the TriMark Keypad 1. Hold the [5 / 6] button of the keypad for 5 seconds. The keypad will beep and the backlight will flash.
- Page 6 P.O. Box 350 New Hampton, IA 50659 United States Tel: +1 641 394 3188 Fax: +1 641 394 2392 E-mail: tips@trimarkcorp.com www.trimarkcorp.com TriMark Europe Limited TriMark (Xuzhou) Cedar Court Automotive Components Co. Ltd Walker Road Standard Factory Building A5 Bardon Hill...
