REAR TRACTOR MOWER
FPM 627 027
FPM 627 079
FPM 627 089
INSTALLATION/HANDLING/MAINTENANCE
LIST OF SPARE PARTS
№ 43741
01.2011
e-mail: razvoj @ fpm-agromehanika.rs
Internet: www.fpm-agromehanika.rs
info @ fpm-agromehanika.rs
SERBIA
fpmbolj@ eunet.yu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 627 027 and is the answer not in the manual?

Questions and answers

Summary of Contents for FPM 627 027

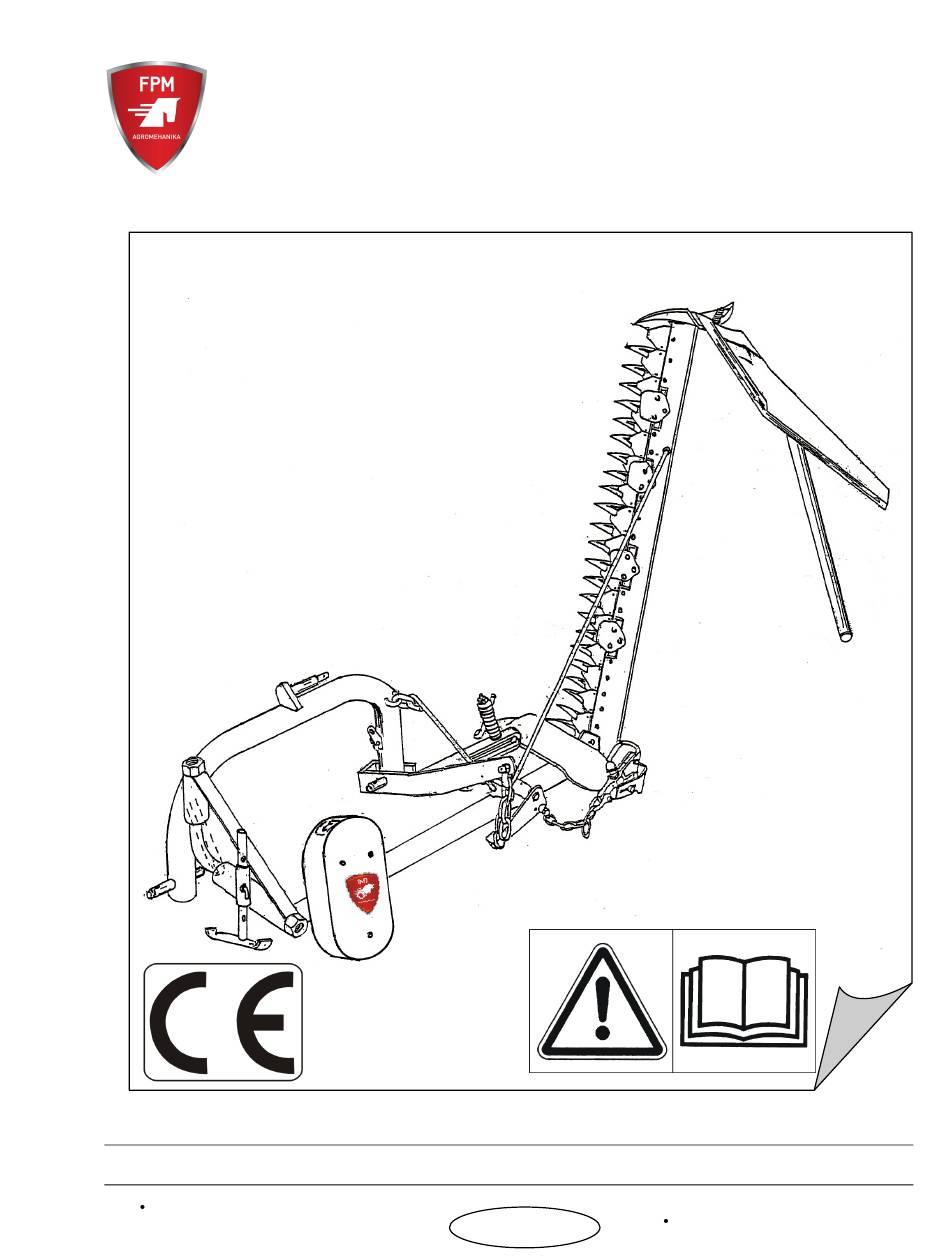

  • Page 1 REAR TRACTOR MOWER FPM 627 027 FPM 627 079 FPM 627 089 INSTALLATION/HANDLING/MAINTENANCE LIST OF SPARE PARTS № 43741 01.2011 e-mail: razvoj @ fpm-agromehanika.rs Internet: www.fpm-agromehanika.rs info @ fpm-agromehanika.rs SERBIA fpmbolj@ eunet.yu...
  • Page 2 TRAINING: FPM Agromehanika DOO constantly strives to improve its products and therefore reserves the right to make changes or improvements when needed, without any obligation to modify or supplement previously manufactured or sold equipment.
  • Page 3 INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE OF THE REAR TRACTOR MOWER FPM 627 027 FPM 627 079 FPM 627 089 The mower is aggregated on I and II category tractors with three-point suspension system according to ISO 730 / I and output speed n = 540 min...

  • Page 4: Table Of Contents

    CONTENT № 43741 TABULAR OVERVIEW PAGE GROUP OF PARTS Safety warning Limited warranty Introduction Caution Safety Description of rear tractor mower 9 - 10 Aggregating the mower to a tractor 11 - 12 Adjusting the mower for work 12 - 13 Working with the mower Maintenance of the mower 14 - 15...

  • Page 5: Limited Warranty

    Safety of Machines ("Official Gazette of the Republic of Serbia", No. 13/2010) for each original piece of a new mower delivered to the user by the sales network FPM Agromehanika AD Boljevac, which guarantees at the time of delivery, that every part of the mower is new, free of material defects, and...

  • Page 6: Introduction

    INTRODUCTION The rear tractor mower FPM 627 089 belongs to the group of modern tools from our production program and is intended for cutting all kinds of fodder plants. According to its construction, it is located in the group of worn rear mowers and it has the possibility of aggregating to all tractors of I and II category that have a three-point attachment system and a six-gang type output shaft, 34.9 mm in...

  • Page 7: Caution

    CAUTION The operating instructions correspond to the basic model of the rear tractor mower FPM 627 089. Since your mower can fit a part that functionally fits the explanation while the shape is slightly different, please do not pay attention to such things.

  • Page 8: Description Of Rear Tractor Mower

    - The user of the rear tractor mower is responsible for the safety of people and animals that are found in the area of use, so make sure that the other person is not nearby when working. One should always think of the consequences of irresponsible work because they are irreparable. - On sloping terrains, make sure that there is no slipping and overturning with a mower, rain or moisture accelerates the sliding of the tractor, as well as the accumulation of mud on double fingers on the cutting so avoid working in a humid terrain.
  • Page 9 Slika 1. - Unscrew the M12x30 screw on the rear of the cutter blade (Fig. 1, Item 1) and then remove the slider located below the bend. - Remove the splinters (fig. 1, item 2) provided by the shafts (figure 1, items 3 and 4) for the connection of the cutting device and the supporting structure, and then remove the shafts from the eyelets.

  • Page 10: Adjusting The Mower For Work

    - To facilitate the attachment to the tractor, remove the footrest and position it so that the bearing - the rack is lifted as far as the connecting points reach the height of the lowered tractor levers (Fig. 3, see broken lines).
  • Page 11 - The whole mower is lowered by hydraulics until the bowl firmly rests on the ground, then the hydraulics chains (figure 3, item 6) are fastened to the required length - approximately tightened. - Use the hydraulics to raise the mower so that the slider (fig. 4, item 6) is 8 to 10 cm from the ground and use the flat object of the approximate height (Fig.

  • Page 12: Working With The Mower

    - Cutting height - mowing is very important because it leaves traces not only for the next mowing but also for the other agrotechnic that is being carried out. Three types of cuts are applied: the lowest 3 - 4 cm for the mowing of meadows in mountainous areas, medium 5 - 6 cm for mowing mixtures for silage and the cultures that go in silage.

  • Page 13: Maintenance Of The Mower

    - Depress the cutting device from the ground and secure with the handle for the transport position (fig. 3, item8) - Use the hydraulics to lift the mower in the upper position, and then make the chain shortening (figure 3, item 6) to the required transport length, thus releasing the tractor hydraulic system. MAINTENANCE OF THE MOWER The mower should be neatly lubricated and properly adjusted.

  • Page 14: Sharpening And Replacing The Blades On The Movable Cutting Strip

    - When the pre-setting is completed, return the outer guide and screw in place. Do not tighten the screw to the end. - Release the "counter" nut (Fig. 8, Item 8) and then screw or unscrew the screw (fig. 8, item 7) with the hexagon wrench until the correct guide of the outer guide on the slider of the slat.

  • Page 15: Technical Characteristics

    The bristle is also from the production program FPM Agromehanika AD Boljevac. After completing the work, the mower should be cleaned of the remains of the grass and any residual soil, especially in the part of the cutting machine.

  • Page 16: Storage Of The Rear Tractor Mower

    OTHER WINDING PARTS. 2. DO NOT DRIVE OTHER PERSONS ON THE TRACTOR OR MOWER. 3. AFTER EACH WORKING SEASON, WE RECCOMMEND THAT YOUR SERVICE FPM AGROMEHANIKA AD BOLJEVAC, CHECKS THE CONDITION OF THE MOWER, ESPECIALLY THE BLADE AND OTHER PARTS.
  • Page 17 to each other, and set the length of 10 mm with a different tractor and mowing settings and mark on the protector, fig. 11. 6.— The coating of the cardan should in no case be allowed to be removed, not even to turn during work.
  • Page 18 1. The mask on the front joint.  Every 8 hours 2. The reverse part of the liner on the front of the cardan.  Every 40 hours 3. The internal telescopic part of the tube  Every 20 hours 4.
  • Page 19 DECLARATION OF CONFORMITY 98/37/CE We hereby declare, within our responsibility, that the product Type: Tractor mower with double blades Model: IMT 627 089 – work grasp 2.0 m `Year of manufacture: 2008 in accordance with the safety requirements established by European Directive 98/37 / CE. The product is in compliance with the following standards: DESCRIPTION STANDARD...
  • Page 20 FPM AGROMEHANIKA AD Form 1 BOLJEVAC No: 741 05.2008 CERTIFICATE OCCUPATIONAL SAFETY MEASURES WERE APPLIED On: tractor mower with double blades Type, series and purpose: rear carried: IMT 804 162 for mowing all types of grass. Year of manuf.: 1998 Technical data: Working grasp 1.2m, movement speed 4-8 km/h, number of cutting lath...

  • Page 21: List Of Spare Parts

    LIST OF SPARE PARTS - Handling and maintenance instructions - - For ordering spare parts or components contact the sales department - spare parts. - Optional equipment or accessories, whose identification number starts with 1, as well as instructions for installation and use, must be ordered from the department of machine sales. Existing images in the following sheets show machine parts that are numbered.
  • Page 22 For tractors cat. 2 Pad thickness For tractors cat. 3 Pad thickness to reduce gap FPM AGROMEHANIKA AD BOLJEVAC...
  • Page 23 BEARING FRAME IDENTIFICATION NUMBER FOR ORDERING 627 13 015 627 13 022 000 05 464 Ø6x40 611 20 010 627 13 019 627 13 050 804 91 598 627 12 838 627 13 075 000 05 340 627 13 258 627 10 108 627 10 251...
  • Page 24 POWER MECHANISM IDENTIFICATION NUMBER FOR ORDERING 627 15 268 000 00 060 000 09 985 M8x20 000 00 070 627 12 042 627 10 938 627 12 043 000 05 337 M40x1,5 000 05 326 627 10 984 000 05 738 A12x8x40 627 10 982 810 01 512...
  • Page 25 POWER MECHANISM IDENTIFICATION NUMBER FOR ORDERING 000 00 066 627 10 191 000 03 049 000 09 667 6204-2Z 627 10 189 627 10 977 000 08 211 M12x80 627 10 945 627 15 128 000 07 521 6304 000 00 068 000 07 903 000 13 389 M16x1,5...
  • Page 26 BALANCE LATH IDENTIFICATION NUMBER FOR ORDERING 627 13 065 627 13 059 627 12 011 627 10 618 000 00 063 611 20 010 1 > 6 627 13 053...
  • Page 27 CUTTING MACHINE IDENTIFICATION NUMBER FOR ORDERING 627 10 708 000 00 053 M12X35 850 42 110 850 42 130 000 00 072 000 11 223 000 00 062 000 02 556 3,2x30 850 12 033 000 11 224 000 00 080 000 02 493 627 12 928 627 10 121...
  • Page 28 CUTTING MACHINE IDENTIFICATION NUMBER FOR ORDERING 000 04 030 4x20 627 10 124 627 15 701 000 04 088 6,3x45 000 04 570 M12x30 627 10 132 627 10 440 627 10 125 850 12 032 000 08 118 M8x30 000 00 070 627 10 370 627 10 704...
  • Page 29 PROTECTION REGULATIONS, AS WELL AS THE RULES ON ROAD TRAFFIC. IN THE OBJECTIVE OF YOUR OWN SECURITY USE THE ORIGINAL PRODUCTS PRODUCED BY FPM AGROMEHANIKA AD BOLJEVAC. THE MANUFACTURER IS NOT RESPONSIBLE FOR THE CONSEQUENCES OF INCIDENTAL USE OR NON-COMPLIANCE WITH RECOMMENDATIONS IN...
  • Page 30 FOR YOUR OWN SAFETY AND TO OBTAIN THE BEST FROM YOUR MOWER, USE ONLY ORIGINAL PARTS PRODUCED BY FPM AGROMEHANIKA AD BOLJEVAC FPM AGROMEHANIKA AD 19370 Boljevac, 25 Đorđa Simeonovića St. TEL: Sales department: 030/63 455; 030/63 356 Service department: 030/63 619...
