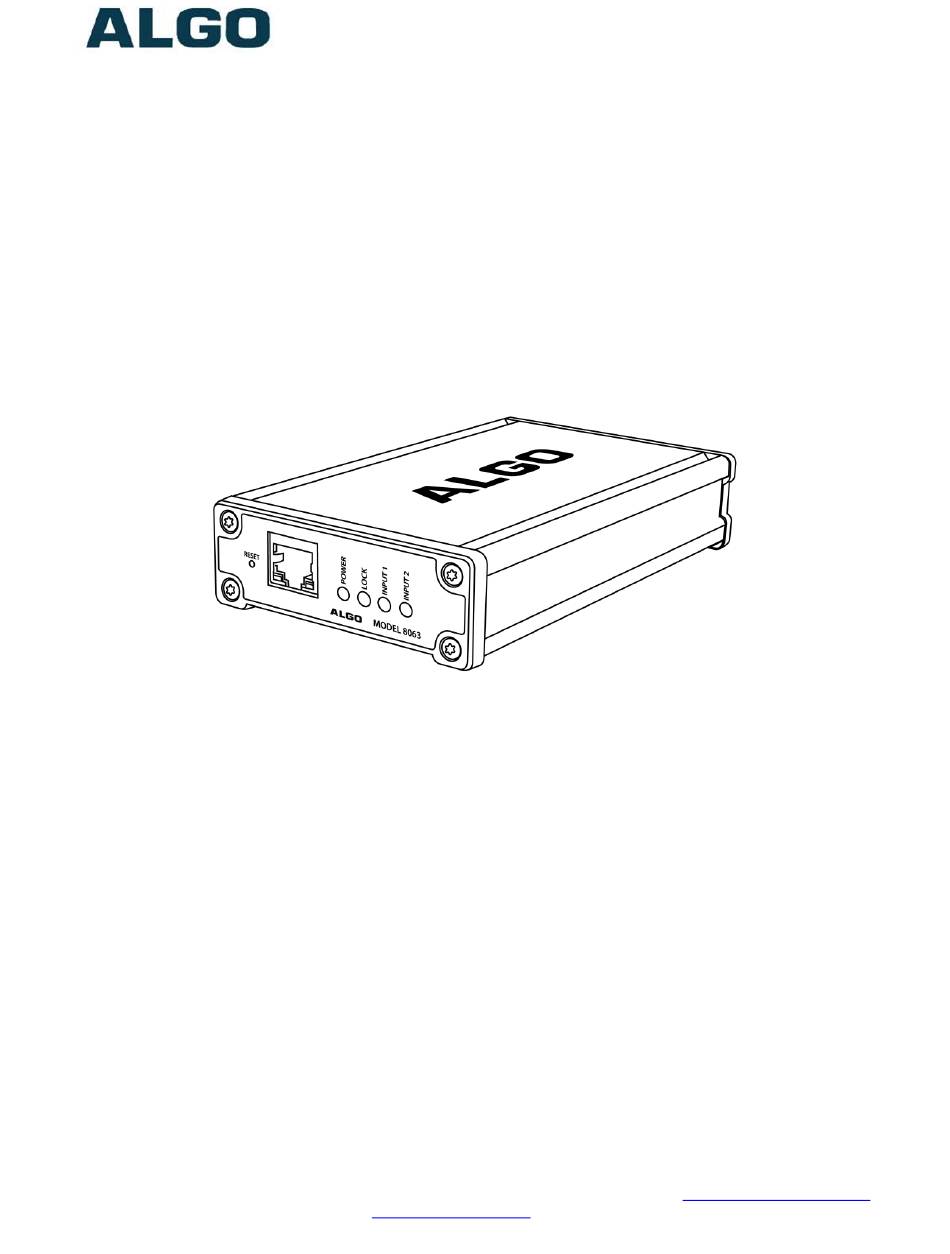

8063 IP Door Controller
User Guide
Order Codes
8063 IP Door Controller
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
8063 IP Door Controller
(604) 454-3792
support@algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8063 and is the answer not in the manual?

Questions and answers

Related Manuals for Algo 8063

Summary of Contents for Algo 8063

  • Page 1 8063 IP Door Controller 8063 IP Door Controller User Guide Order Codes 8063 IP Door Controller Document 90-00106 Algo Communication Products Ltd (604) 454-3792 2020-09-02 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...

  • Page 2: Table Of Contents

    8063 IP Door Controller Table of Contents Important Safety Information ....................3 Overview ..........................5 Introduction ............................... 5 Setup and Installation ......................6 Getting Started - Quick Install & Test ......................... 6 Installation ................................ 7 Programming and Configuration ........................7 Wiring Connections .......................

  • Page 3: Important Safety Information

    Si el producto se instala fuera del perímetro del edificio o se utiliza en una aplicación en varios edificios, las conexiones cableadas se deben proteger contra sobretensión o corriente transitoria. Algo recomienda que la instalación de este producto la realice un electricista calificado.
  • Page 4 CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection. No wiring connected to the 8063 IP Door Controller may leave the building perimeter without adequate lightning protection.

  • Page 5: Overview

    In applications where voice communication is not required, the 8063 can also be used in standalone mode, and activated directly via a SIP call. The 8063 also has two relay inputs, and one relay output, allowing it to interface with external sensors and switches, including magnetic door sensors for tracking the state of the door to prevent tailgating, or trigger an alarm if the door is held open.

  • Page 6: Setup And Installation

    Intercom) to unlock the door using the 8063 IP Door Controller. For Stand-Alone Mode 8. In the 8063 web inteface, enter the IP address or the name for the SIP server into the SIP Domain field under the Basic Settings > Stand-Alone Mode tab.

  • Page 7: Installation

    After boot up the blue lights on the front will turn off (except for the power light) and the adapter will have obtained an IP address. If there is no DHCP server the 8063 IP Door Controller will default to the static IP address 192.168.1.111.

  • Page 8: Wiring Connections

    8063: Front View 8063: Back View Network Connection (Front) The 8063 provides a RJ45 jack for network connection. A cable run from the switch can be terminated to a modular jack with connection by patch cord, or terminated with a RJ45 plug.

  • Page 9: Reset

    A recessed reset button (RST) next to the Ethernet Jack can only be used to reset the 8063 at time of power up. To return all settings to a factory default, wait until the SIP LED flashes and then press and hold the reset button until the POWER LED begins a double flash pattern.

  • Page 10: Tls For Sip Signalling And Provisioning

    2. Rename the public certificate ‘siptrusted’ with any of supported formats (.pem, .cert, or .cer). 3. In the web interface of the 8063, navigate to the System > File Manager tab. 4. Upload the certificate files into the ‘certs’ directory. Click the Upload button in the top left corner of the file manager and browser to the certificate.
  • Page 11 8063 IP Door Controller Important: To verify the server you must ‘Enable’ the ‘Validate Server Certificate’ option. This then checks if the certificate that is provided by the server is signed by any of the CAs included in the list of trusted CAs (used by the Debian infrastructure and Mozilla browsers).
  • Page 12 8063 IP Door Controller Important: In order for a SIP server to validate the Algo device, an additional certificate may be installed on the Algo device manually. To add the user certificate file use a ‘.pem’, ‘.crt’, or ‘.cer’ filetype extension and have the file named ‘sipclient’.

  • Page 13: Web Interface Status And Login

    Web Interface Status and Login Web Interface login The web interface requires a password which is ‘algo’ by default. This password can be changed using the Admin tab after logging in the first time. Web Interface is accessed by entering the 8063’s IP Address into a web browser.

  • Page 14: Status

    The device’s Status page will be available before and after log on. The section can be used to check 8063’s SIP Registration, Call Status, Relay Status (Door Sensor and Door Relay), Proxy Status, and general MAC, IP, Netmask, Date/Time, and Timezone information.

  • Page 15: Web Interface Basic Settings

    Web Interface Basic Settings Basic Settings Tab – Door Control & I/O Door Control Link To use the 8063 as a Network Door Controller, you may enable this function and set the password to securely connect from the Algo Doorphone. Input #1 Select the Door Sensor (not included) to use the ‘Door Open Alarm’...

  • Page 16: Basic Settings Tab - Stand-Alone Mode

    Set current limit to low or high. PoE+ power is required to use the high current limit. Basic Settings Tab – Stand-Alone Mode These settings are not needed if the 8063 is used with an Algo Intercom. Only use this section if operating the 8063 directly from a SIP call without voice communication.
  • Page 17 The IP address (e.g. 192.168.1.111) or domain name (e.g. myserver.com) of the SIP Server SIP Extension This is the SIP extension for the 8063 IP Door Controller. Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension.
  • Page 18 8063 IP Door Controller Display Name Enter a “Display Name” that will be sent when the SIP call is made. The PBX and phone(s) will have to be configured to display this message as the Caller ID. Answer Prompt The prompt tone upon answering of the inbound call to create awareness.

  • Page 19: Web Interface Advanced Settings

    Web Interface Advanced Settings Advanced Settings Tab - Network Internet Protocol The 8063 can be set to have IPv4 only or both IPv4 and IPv6 method as its internet protocol. IPv4/IPv6 Method The 8063 can be set to a DHCP or a static IP address. When DHCP is selected, DHCP will automatically configure IP addresses for each 8063 IP Door Controller on the network.
  • Page 20 8063 IP Door Controller IPv4/IPv6 Address Enter the static IP address for the 8063. IPv4/IPv6 Address Enter the gateway address. VLAN Mode Enables or Disables VLAN Tagging. VLAN Tagging is the networking standard that supports Virtual LANs (VLANs) on an Ethernet network. The standard defines a system of VLAN tagging for Ethernet frames and the accompanying procedures to be used by bridges and switches in handling such frames.

  • Page 21: Advanced Settings Tab - Admin

    Advanced Settings Tab – Admin Password Password to log into the 8063 IP Door Controller web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will need to perform a reset using the Reset Button in...
  • Page 22 Log Level Use on the advice of Algo technical support only. Log Method Allows the 8063 Door Contoller to write to external Syslog server if the option for external (or both) is selected. Log Server If external (or both) is selected this is the address of the Syslog server on the network.

  • Page 23: Advanced Settings Tab - Time

    SIP log file for a registration attempt). The Realms may be the same or different for all the extensions used. SNMP Support Additional SNMP support is anticipated for future, but the 8063 IP Door Controller will respond to a simple status query for automated supervision. Contact Algo technical support for more information.

  • Page 24: Advanced Settings Tab - Provisioning

    This will prevent unauthorized re-configuration of the device if DHCP is used. Provisioning allows installers to pre-configure 8063 IP Door Controller units prior to installation on a network. It is typically used for large deployments to save time and ensure consistent setups.
  • Page 25 “Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, HTTP, or HTTPS. For example, the 8063 configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from.

  • Page 26: Advanced Settings Tab - Advanced Audio

    MAC address specified in the configuration file name. Since all the necessary settings can be included in this file, the 8063 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8063 IP Door Controller can be found on the back label of the unit.

  • Page 27: Advanced Settings Tab - Advanced Sip

    8063 IP Door Controller Advanced Settings Tab – Advanced SIP SIP Transportation Selects the transport layer protocol to use for SIP messages. Setting ‘SIP Transportation’ to ‘TLS’, ensures the encryption of SIP traffic. SIPS Scheme Only visible when ‘SIP Transportation’ set to ‘TLS’. Enabling SIPS Scheme requires the SIP connection from endpoint to endpoint to be secure.
  • Page 28 SIP Outbound Support (RFC 5626) Enable this option to support best networking practices according to RFC 5626. This option should generally be enabled if the Algo device is being registered with a hosted server or if TLS is being used for SIP Transportation.
  • Page 29 Backup Server #2 If backup server #1 is unreachable the 8063 IP Door Controller will attempt to register with the 2nd backup server. If enabled, the 8063 will always attempt to register with the highest priority server. Polling Intervals (seconds) Time period between sending monitoring packets to each server.

  • Page 30: Web Interface System

    Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8063 IP Door Controller device settings to factory default values. Download Backup File Saves the device settings (configuration) and all the files in File Manager: certificates, licenses, and tones to a backup zip file.

  • Page 31: System Tab - Firmware

    Upgrade 8063 IP Door Controller Firmware 1. From the top menu, click on System, then Maintenance. 2. In the Upgrade section, click on Choose File and select the 8063 IP Door Controller firmware file to upload. Note that a .SFW file must be loaded.

  • Page 32: System Tab - File Manager

    8063 IP Door Controller System Tab – File Manager Files of different types must be uploaded to the appropriate folder, otherwise the 8063 will not recognize the file. • For TLS provisioning and SIP signaling, a certificate file must be uploaded to the ‘certs’...

  • Page 33: System Tab - System Log

    ‘trusted’ folder inside the ‘certs’ folder. System Tab – System Log System log files are automatically created and assist with troubleshooting in the event the 8063 IP Door Controller does not behave as expected. Document 90-00106 Algo Communication Products Ltd...

  • Page 34: Specifications

    Type 2 PoE+ IEEE 802.3at (Max 25.5 W) Idle nominal 2.5W SIP: Optional: Can be operated via a direct SIP call if not used in conjunction with an Algo Intercom product. Processor: Linux OS ARM Cortex-A8 32-Bit RISC Processor...

  • Page 35: Fcc Compliance Statement

    8063 IP Door Controller FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
