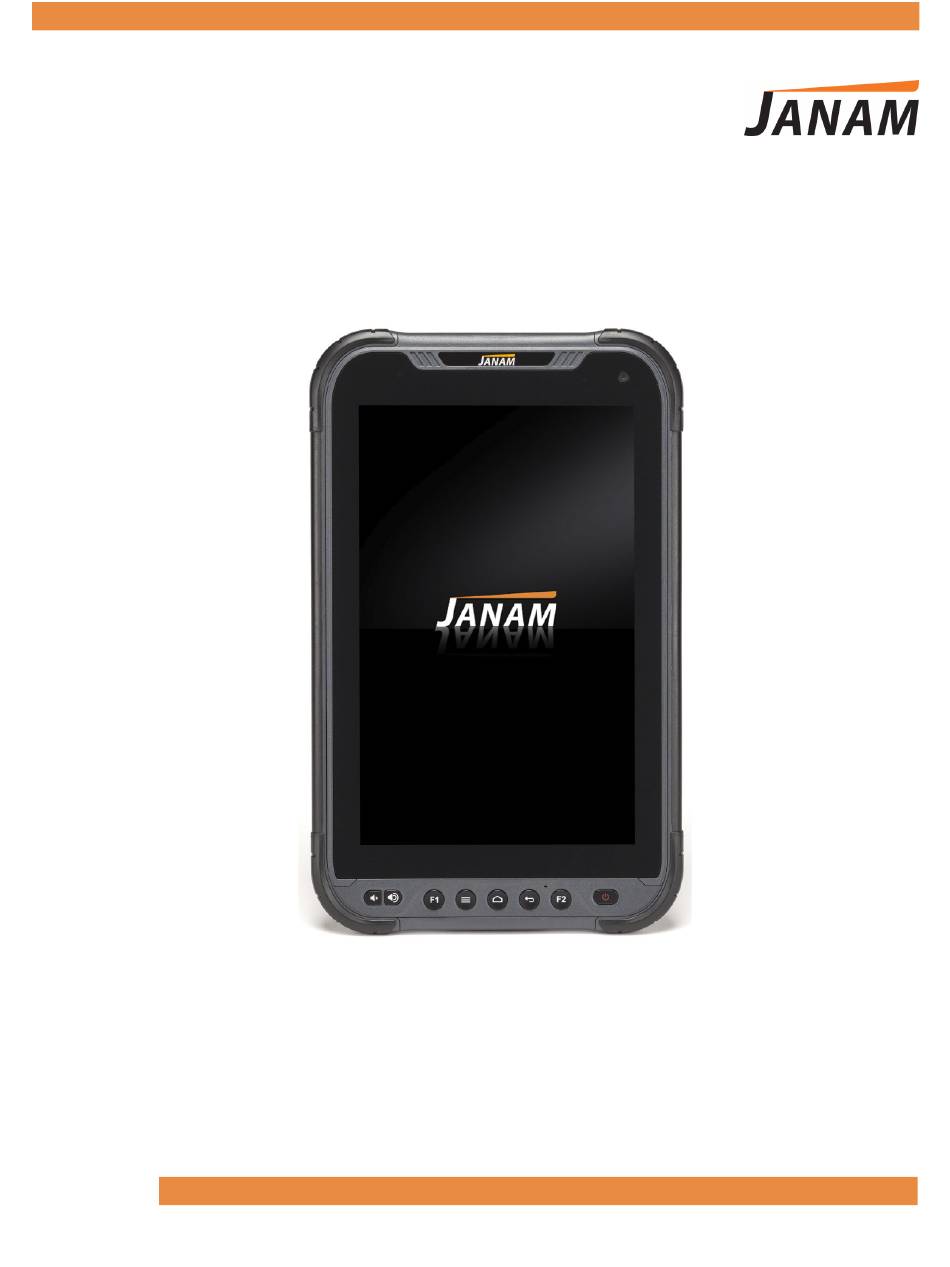

- Page 1 User Manual Technology at Work ® Version 1 September 2020 © 2020 Janam Technologies LLC. All rights reserved.
- Page 2 Copyright 2020 Janam Technologies LLC. All rights reserved. Janam and the Janam logo are trademarks of Janam Technologies LLC. ARM and Cortex are registered trademarks of ARM Limited (or its subsidiaries) in the EU and/or elsewhere. Android is a trademark of Google Inc.
-
Page 3: Table Of Contents
Recommended Host PC Requirements Wireless Network Connection CH-PG HT1 SDK Battery Safety Introduction Installing the Battery Connecting to a WLAN network Charging the HT1 Battery Wi-Fi Preferences HT1 Battery Condition Information Mobile Network Turning the HT1 On Tethering Turning the HT1 Off... - Page 4 Phone Functionality CH-PG HT1 Regulatory Information 14-1 Introduction Regulatory and Safety Approvals 14-1 Phone Screen HT1 w/ WWAN, WLAN and Bluetooth 14-2 Answering a Call HT1 w/ WLAN and Bluetooth 14-2 During Call Features Compliance with FCC Rules 14-3 Settings...
-
Page 5: Introduction

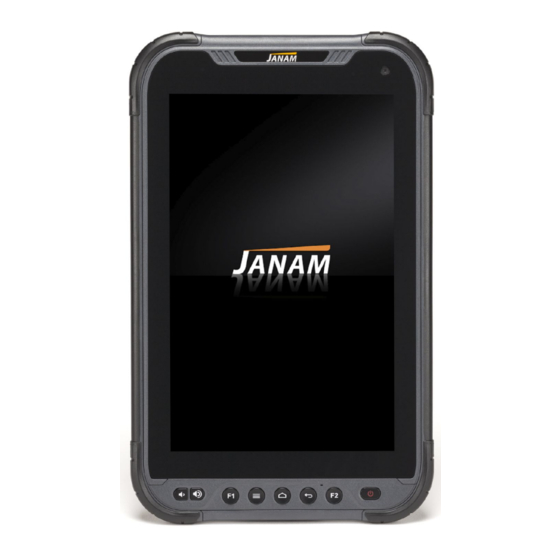

Introduction User Manual Introduction HT1 Rugged Tablet Key Features — Ergonomically designed for one-handed use — Android 9 with Google Mobile Services (GMS) — Bright 8-inch touch screen optimized for indoor/outdoor applications — Military-grade certified ruggedness — IP67 sealing — Blazing-fast Snapdragon octa-core processor —... -
Page 6: Hardware Overview
13. Battery cover lock 21. Microphone Expansion module screw holes 14. Programmable volume up/down 22. Audio jack Expansion module connector 15. Programmable F1 23. USB Type-C port 16. Android key: Open apps 24. Expansion port Janam Technologies LLC Version 1, September 2020 Introduction 1—2... -
Page 7: Getting Started
— 1280 x 800 minimum screen resolution. Janam HT1 SDK The Janam HT1 Software Development Kit enables programmers to develop applications for Janam HT1 rugged tablets running the Android™ operating system. It contains details and instructions for developing applications that access the HT1 embedded scanner. -
Page 8: Battery Safety
JanamCare at 866-915-5311. Use only battery chargers approved for the HT1 by Janam. Janam and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries. Observe the following guidelines for safe use of Li-Ion batteries: 1. -
Page 9: Charging The Ht1 Battery
1. Slide the appropriate US/UK/EUR adapter plug onto the AC/DC power adapter housing. 2. Insert the USB Type-C cable into the USB Type-C port at the bottom of the HT1. 3. Plug in the AC/DC power supply. The HT1 LED indicator will light blue while charging and will change to green when fully charged. - Page 10 Getting Started User Manual HT1 Battery Condition and Usage Information Android provides information on battery charge level in percent, estimated amount of battery charge remaining and how much of the battery capacity has been used by various applications and device functions.
- Page 11 For information about securing the HT1 with a password or pin code, refer to Chapter 3. Unsecured: just swipe up...
-
Page 12: Touch Screen Navigation
Power Button and keep holding it for about ten seconds. The display will go black, and in a few seconds the HT1 will reboot automatically. Touch Screen Navigation The Janam HT1 uses capacitive multi-touch technology. Almost all of the HT1’s functions can be accessed and used by tapping, swiping or dragging with one finger. -
Page 13: Screen Rotation
User Manual Screen Rotation The HT1 was designed to be used in portrait (vertical) orientation. Many screens and apps, however, can also be used in landscape (horizontal) orientation. By default, the HT1’s internal sensors auto- matically present a vertical or horizontal view in sync with the physical orientation of the device. If automatic orientation is not desirable, the screen can be locked in its current orientation in Settings. - Page 14 HT1’s most frequently used features and applications. The home screen can consist of multiple screens (on the HT1 you can add additional screens to the right of the home screen).
-
Page 15: Home Screen 2-8 To
Getting Started User Manual Home Screen (continued) home screen of the HT1 provides easy access to other functions by swiping up, down and right. Swipe down Brings up the Quick Settings panel with notifications Swipe left Swipe right If added, brings... - Page 16 Add icon to Home screen: Home screen, or drag it to the allow/disallow adding app icons right to put it on an additional to the Home screen. Janam Technologies LLC Version 1, September 2020 Getting Started 2—10...
-
Page 17: Android Soft Buttons - Old And New
If you prefer the old way with the three Android buttons, got to System > Gestures > Set up home button where you can toggle between the traditional and the new way the software buttons are implemented. Janam Technologies LLC Version 1, September 2020 Getting Started 2—11... -
Page 18: App Screen
Function Keys The Janam HT1, in addition to volume up/down and the power button, has five physical function keys with white labels located along the bottom of the display. Depressing these keys, from left to right,... -
Page 19: Microsd Card Storage
Card About microSD Cards The HT1 rugged tablet has a microSD flash memory card slot in its battery compartment that is compatible with SDXC (Secure Digital Extended Capacity) cards with capacities of up to 2TB (exFAT32 card formatting). Older SD and SDHC cards can also be used. Removable microSD memory is useful for general file storage, uploading and downloading of user data and more. - Page 20 If a SIM card provided by your cellular carrier uses the nano format, you need a (readily available) micro SIM card adapter to use it in the HT1. Contact Janam or your local wireless carrier for more information about SIM cards and wireless service.
- Page 21 To restore everything, log into your Google ac- count and all data and settings will be restored. Janam Technologies LLC Version 1, September 2020 HT1 Setup 3—3...
- Page 22 User Manual Resetting the HT1 to factory condition Resetting the HT1 erases all personal data from internal device storage. This includes Google Account information, information about any other accounts, system and application settings and configura- tions, and any downloaded applications. The device is returned to factory condition.
-
Page 23: Android Security
(makes it easier to use complex passwords) Settings > Security & location > Device admin apps (shows apps that can administer the HT1) Settings > Security & location > Screen pinning (locks device into one app) Apps & notifications (change permissions) - Page 24 > Security & location > Screen lock. If you have lock screen security in place, you must enter the code before you can change the screen lock type or code. Janam Technologies LLC Version 1, September 2020 HT1 Setup 3—6...
- Page 25 Security & location > Smart Lock feature. The latter changes locking de- pending on circumstances. This can make using the HT1 both more convenient and more secure. Smart Lock > On-body detection Keeps the HT1 stays unlocked as long as it is on you.
-
Page 26: Privacy Settings
Privacy Settings Location When connected via Wi-Fi, Bluetooth or mobile broadband and “location” is turned on for your HT1, you can get information based on its location. Examples are commute predictions, nearby stores and restaurants, and local search results. Use Settings >... - Page 27 HT1 Setup User Manual Device Settings The HT1 can be configured according to personal preferences. This makes the device easy to use and helps to enhance efficiency and productivity. Display Brightness level can be adjusted manually via a slider. If turned on, Night Light turns the screen to a dim, adjustable amber color.
-
Page 28: Device Settings: Storage
Show and set notifications options, Set app install location, Clear stored data, Clear cache, or Manage battery use, Open the app by default Manage battery use. See app details (where it’s from, ec.). Janam Technologies LLC Version 1, September 2020 HT1 Setup 3—10... -
Page 29: Personal Settings Accounts
Accounts list when setup is complete. De- pending on the settings you selected during the account configuration, your HT1 device may automatically start to sync account data (e.g., email, contacts, music and calendar, etc.). To remove an account, go to Settings >... -
Page 30: Personal Settings: Language & Input
Autofill service: Set up autofill of addresses, passwords, payment methods. Personal Dictionary: Here you can add, edit, or delete words from your optional personal dictionary. Pointer speed: Adjusts the speed of a mouse connected to the HT1. Text-to-speech output: Here you can configure Google Text-to-Speech, including language, volume, intonation, how numbers are spoken, etc. - Page 31 Remove animations Large mouse pointer: When using a mouse, the pointer can be large. Accessibility menu: Allows control of the HT1 via large menu. Switch Access: Enables the use of switches to select items, scroll, enter text. Captions: When on, displays captions in various languages, sizes and formats in apps that support it.
-
Page 32: Wireless Network Connection Ch-Pg
A given physical area may have multiple wireless local area networks (WLANs), sometimes referred to as Wi-Fi hot spots, which the HT1 can see as it scans for available networks. Typically, wireless local area networks are configured with a security scheme. Wireless devices connected to a wireless network must: A. - Page 33 Wireless Network Connection User Manual Connecting the Janam HT1 to a Wireless Local Area Network (WLAN) To initially connect the HT1 to a wireless local area network, go to Settings > Network & internet > WLAN. Turn WLAN networking on. The XT2 will begin searching for available Wi-Fi networks.
-
Page 34: Wi-Fi Preferences
Wi-Fi Direct: Used for peer-to-peer Wi-Fi connections that do not need a Wi-Fi wireless access point. Mobile network If your HT1 has mobile phone and data service, you can adjust how your device uses data. — Mobile Data: Determines if the HT1 uses mobile data or if connectivity is limited to voice. -
Page 35: Bluetooth
There are several ways to set up your computer for wireless access and the following section details the general instructions needed to set up Bluetooth on your Janam HT1 rugged tablet. Please note that complex or custom installations may require additional expertise from Janam’s technical support team and/or the manufacturer of the device to be paired. -
Page 36: Bluetooth Concepts
Bluetooth Concepts Bluetooth does not have to be on in order for the HT1 to function. In fact, since the Bluetooth radio consumes power, it should be turned off when it is not needed. You can see that Bluetooth is active... -
Page 37: Bluetooth Pairing
Pairing your smartphone with your car may be very different from pairing your HT1 with a desktop PC or portable printer. And pairing with a device with a display will be different than pairing something that does not have a display, like headphones. -
Page 38: Camera
LED flash for capturing crisp still pictures and video recording up to UHD 4k. Both functions are useful for documentation of inventory locations, product damage, procedures and more. In addition, the HT1 incorporates a 5.0 megapixel front-facing camera primarily intended for video conferencing and video calls. -
Page 39: Camera Controls Overview
User Manual Camera Controls Overview Front camera location Rear camera location (if equipped) All of the HT1 camera controls are lo- cated onscreen. The camera can be used both in portrait or in landscape orientation. Camera controls in portrait mode... -
Page 40: Still Camera Settings
(camera keeps shooting as long as you depress the shutter). image resolution, picture quality, red eye reduction, white balance and the shutter sound. Janam Technologies LLC Version 1, September 2020 Camera 6—3... -
Page 41: Video Camera Settings
GPS location and face detection on and off, and also set the default image storage location. In Video camera you may set the video quality (resolution), video duration, noise reduction, video encoder, audio encoder, video rotation and the time lapse. Janam Technologies LLC Version 1, September 2020 Camera 6—4... -
Page 42: Camera Zoom
Tap on Details to get a list of very detailed information about the image. This data alone shows that the HT1 camera can do a lot more than the basic camera app sports. Tap the share icon in the Gallery, and you’ll get a list of apps and services... - Page 43 With the Android Photos app you can also: View and sort your pictures. Manage and back up pictures. Create albums, movies, animations, photo books, etc. Use an assistant to get a task done. Janam Technologies LLC Version 1, September 2020 Camera 6—6...
- Page 44 HT1’s email app that can accommodate a single email account or multiple accounts. Before setting up an email account on the HT1, be sure that a core email address is active with an email service provider or within a private enter- prise (corporate) network to which the HT1 user has access and authori- zation.
- Page 45 Manual Setup option. During Email Setup During email setup you will be asked how often you want your HT1 to check with your email provider and update email. “Never” means you’ll do it manually. Janam Technologies LLC Version 1, September 2020...
- Page 46 What swipe actions should do — Replying to all as default (!) — Auto-fit messages on the display — Open weblinks in Gmail or not — Confirmations before sending, deleting — and archiving messages. Janam Technologies LLC Version 1, September 2020 Email 7—3...
- Page 47 (every 15, 30, 60 minutes or never). Vacation responder Here you set up the automatic response if you’re on vacation or away from the office. Janam Technologies LLC Version 1, September 2020 Email 7—4...
- Page 48 Accounts, tap the desired account, make sure sync is off, then tap Remove account. Note that this will only remove the account from this device, it will not close down the account. Janam Technologies LLC Version 1, September 2020 Email 7—5...
- Page 49 One of the great strengths of the Android operating system is the wealth of tools, utilities and pro- ductivity apps readily available from the Google Play Store or other sources. Janam preloaded the HT1 with a few examples of such tools.
- Page 50 Tools User Manual Program buttons The HT1 has two hard- ware buttons (F1 and F2) as well as volume up/down keys and a power key that can be programmed. To program a key, go to Settings > System > Languages & input >...
- Page 51 Phone Functionality User Manual Phone Calls Introduction The Janam HT1 tablet, if equipped with an acti- vated SIM card and cellular service, can be used a full-function smartphone in addition to a pro- fessional productivity tool. Phone screen To make a call, tap the...
- Page 52 Grayed out options are not available on the call in progress. Answering a Call When a call comes in, the HT1 brings up the phone screen, showing either the number or (if known) the identity of the caller. You then have the option to answer the call...
- Page 53 User Manual GPS and Location Services Modern Android devices like the HT1 no longer simply turn GPS on or off. That’s because most modern apps use location services as part of their basic functionality. What that means is that positioning has become an inherent part of most computing devices.
- Page 54 Google account in Apps & Games. This means that purchases made by a user for another Android device are downloadable to the HT1 as long as the pur- chased app supports the HT1’s hardware and software. You can elect to list...
- Page 55 Always, only over Wi-Fi, or never. Theme Light, dark, or set by Battery Saver. Clear local search history Removes searches preformed on the HT1. User Controls Parental controls Toggle to ON to bring up the parental con- trols setting screen.
- Page 56 Firmware Over-The-Air, or “FOTA,” is a way to wirelessly update the firmware of a mobile device by the manufacturer. The HT1 supports Firmware Over The Air (FOTA) wireless updating. To see if a new firmware version is available for...
- Page 57 Specifications User Manual Janam HT1 Specifications TECHNICAL Operating System Android 9 (Pie) with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended Processor 2.2GHz Octa-core Qualcomm Snapdragon™ SDM625 processor, Adreno 506 GPU Memory 4GB LPDDR3 RAM/64GB eMMC Flash Expansion User-accessible microSD card slot with SD and SDXC support...
- Page 58 Be sure to make backup copies of all important data on other media to protect against data loss. Follow all usage, charging and maintenance guidelines in the Product User Guide. If you have ques- tions, contact Janam. For a copy of the Product User Guide, visit the online Resource Center at www.janam.com.
- Page 59 Regulatory and Maintenance User Manual RF, regulatory and safety approvals HT1 with WWAN, WLAN and Bluetooth Parameter Specification 47 CFR FCC Part 15, Subpart B, Class B • FCC Part 22, Subpart H • FCC Part 24, Subpart E • FCC Part 27, Subpart C, L • FCC Part 2 • FCC Part 15, Subpart C •...
- Page 60 To maintain compliance with the FCC RF exposure guidelines for body- worn operation, do not use accessories that contain metallic components other than specified by the manufacturer. Janam Technologies LLC Version 1, September 2020 Regulatory and Maintenance 14—3...
- Page 61 If you need more information on the collection, reuse and recycling systems, please contact your local region waste administration. You may also contact your supplier for more information on the environmental performances of this product. Janam Technologies LLC Version 1, September 2020 Regulatory and Maintenance 14—4...
- Page 62 Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. • To fully disengage the power to the unit, please disconnect the power cord from the AC inlet. Janam Technologies LLC Version 1, September 2020 Regulatory and Maintenance 14—5...
- Page 63 Check the battery charge level. My device doesn’t charge properly Make sure you are using a Janam Technologies approved charger. Make sure that your battery is not completely discharged; if the battery is completely discharged, it may take around 20 minutes to display the battery charger indicator on the screen.
- Page 64 Make sure that you have selected the country prefix when calling a foreign country. I am unable to add a contact in my contacts Make sure that your SIM card contacts are not full; delete some files or save the files in Janam Technologies LLC Version 1, September 2020 Troubleshooting 15—2...
- Page 65 Deactivate Bluetooth, WLAN, or GPS when not in use. The device sometimes gets hot This heating is a normal consequence of the CPU handling excessive data. Ending above actions will make your device return to normal temperatures. Janam Technologies LLC Version 1, September 2020 Troubleshooting 15—3...
