Summary of Contents for RUSTICA STRUT HANGER

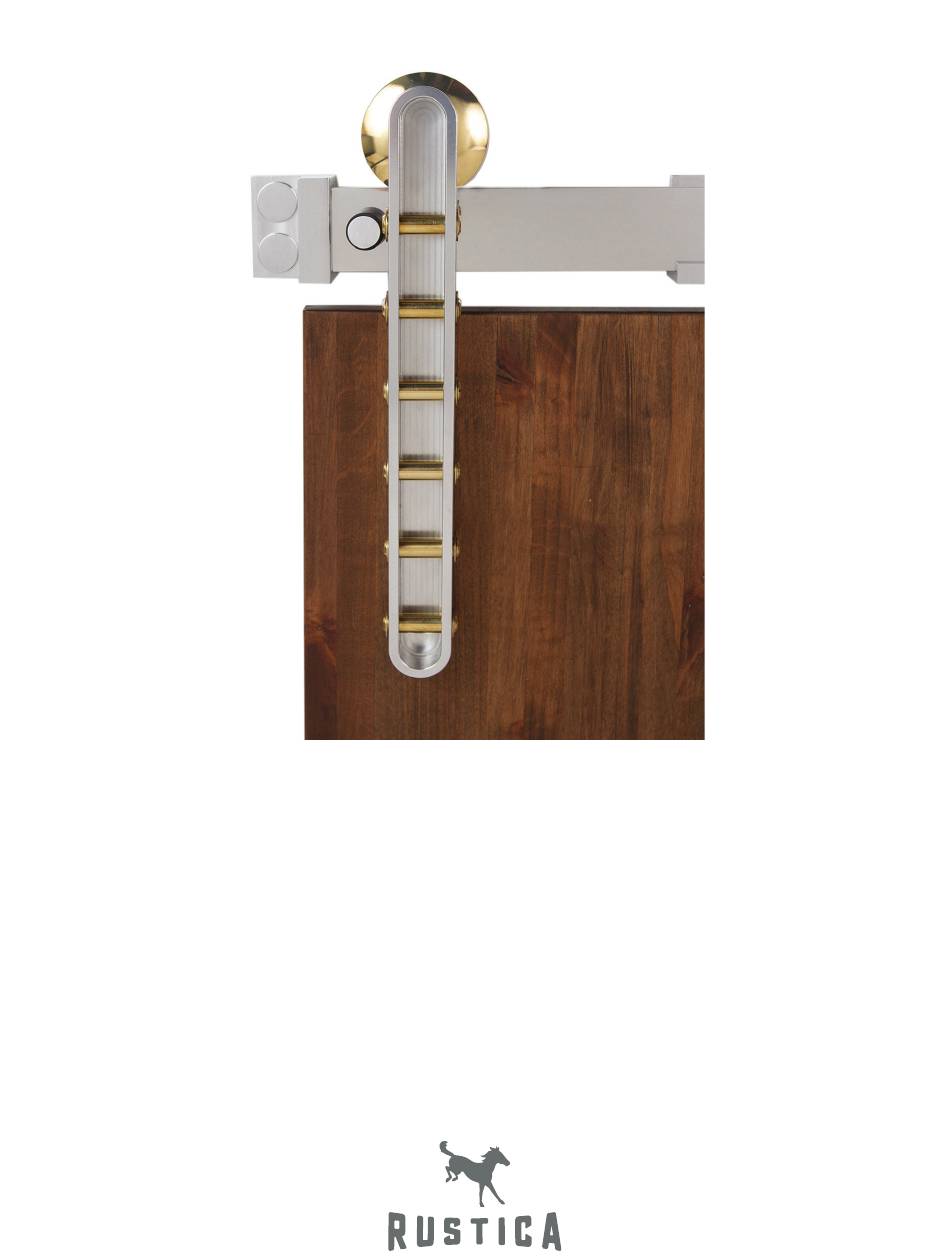

- Page 1 STRUT HANGER INSTALLATION INSTRUCTIONS...
- Page 2 STRUT HANGER Recommended Tools Drill with 1/8”, 1/4”, 9/16” and 5/8” Socket Wrench Level Tape Measure and 1/2” Drill Bits, Combination with 9/16” and 5/8” 1-1/8” Forstner Bit Wrench Sockets or 1-1/8” Spade Bit, and Phillips Bit STRUT HANGER Specifications 3”...
- Page 3 STRUT HANGER Parts PARTS A. Hanger Assembly G. End Bracket B. Lag Screw H. Center Spacer Bracket C. Phillips Screw I. Door Guide D. Whole Plug & Adhesive Strip J. Soft Stop E. 1” Washer K. Anti-Jump Bracket F. Hex Nut L.
-
Page 4: Hanger Installation
STRUT HANGER Assembly Instructions NOTE: Doors using Floor Mount Door Guides will have a groove on the bottom edge. Ensure this groove is on the bottom when hanging the door. HANGER INSTALLATION Door Door T Top 1. Lay the door with the front facing up on a flat, 2-3/4”... - Page 5 STRUT HANGER Assembly Instructions 6. Drill two pilot holes all the way through the door for each hanger using a drill with an 1/8” drill bit (Figure 2). 7. Turn the door over. Using a 1-1/8” Forstner bit*, drill a 1/2”...
- Page 6 STRUT HANGER Installation Instructions FIRST THINGS FIRST Check to see if the floor below the track area is level. If the floor rises more than 1/2” the door may rub or not slide open completely. If the floor is not level, measure from the highest point of the floor surface to the recommended track placement and adjust track placement accordingly.
- Page 7 STRUT HANGER Installation Instructions 5. Drill out the marked holes using a drill with a 1/4” drill bit (Figure 3). Figure 3 6. Attach the end bracket using two lag screws (provided) using a socket wrench with 9/16” socket (Figure 4).
- Page 8 STRUT HANGER Installation Instructions 8. Install center spacer brackets using lag screws (provided) (Figure 6). Figure 6 9. Install the track at an angle, inserting the end of the track into the end bracket and laying the track in the groove of the center spacer brackets (Figure 7).
- Page 9 STRUT HANGER Installation Instructions 13. Install hole plugs over the end bracket screws (Figure 11). Figure 11 14. Install the soft stop (Figure 12). Figure 12 15. Hang the door (Figure 13). Figure 13 www.Rustica.com...
- Page 10 STRUT HANGER Installation Instructions DOOR GUIDE INSTALLATION 16. With the door in the closed position, ensure the door is hanging straight using a bubble level. 17. Position the Door Guide part way into the groove in the bottom of the door (Figure 14).
- Page 11 WE LOVE WHAT YOU’RE DOING WITH THE PLACE CONGRATULATIONS ON YOUR DECISION TO BRING HOME AN AMERICAN MADE PRODUCT OF THE HIGHEST QUALITY. WE HOPE YOUR STRUT HANGER BRINGS ART AND FUNCTION INTO YOUR LIFE. 1-800-891-8312 support@rustica.com www.Rustica.com DESIGNED AND CRAFTED ENTIRELY IN THE U.S.A.
