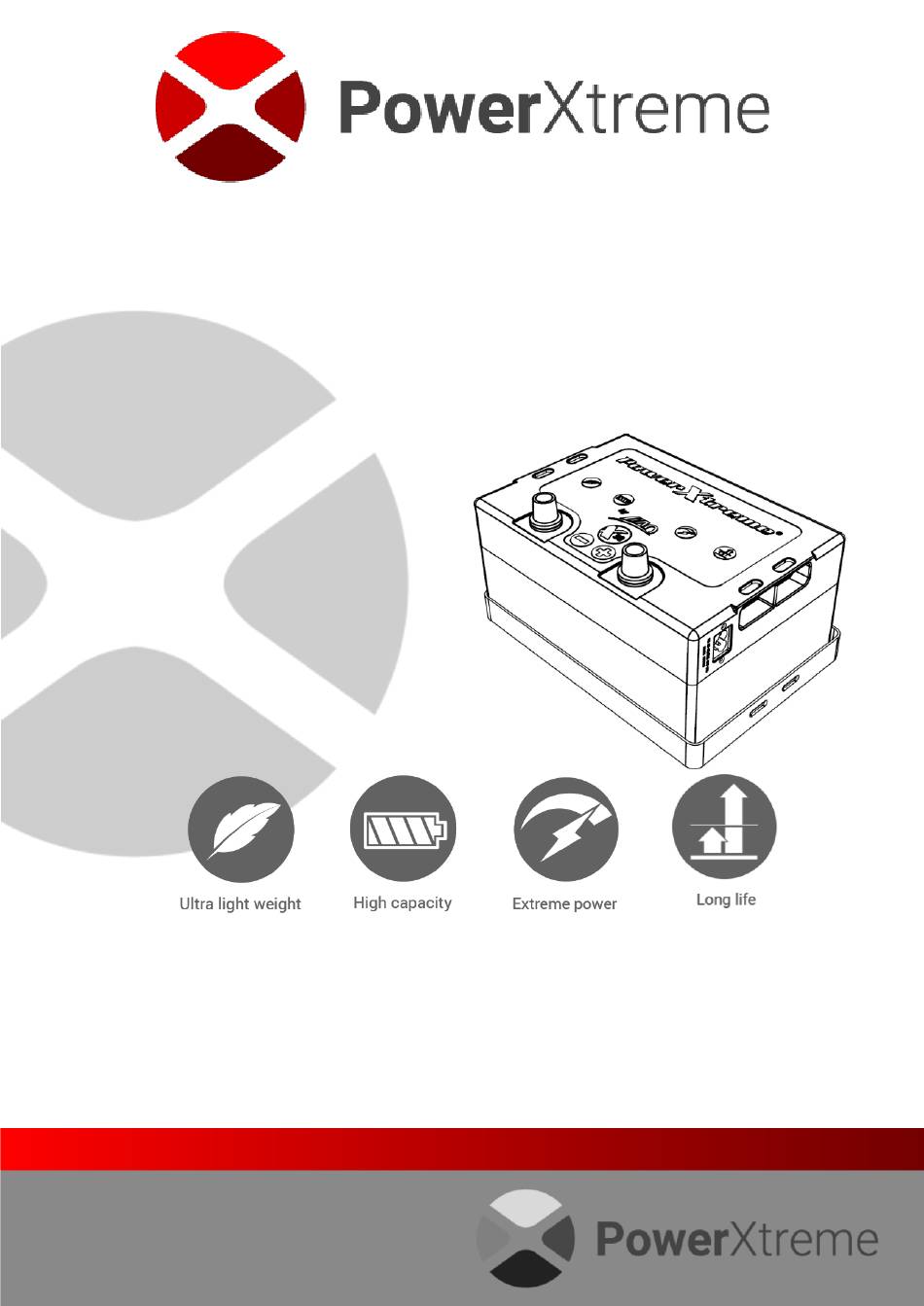

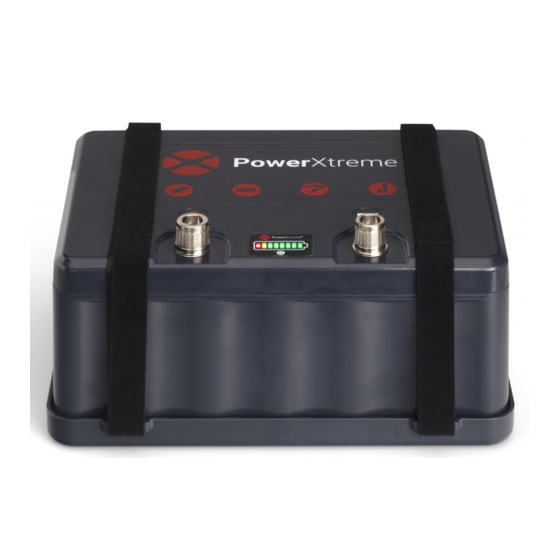

  • Page 1 User manual POWERXTREME X20/X30 LiFePO4 Battery EmergoPlus BV Informaticastraat 20 NL 4538 BT Terneuzen Tel. +31 85 20 18 158 www.emergoplus.com info@emergoplus.com...
  • Page 2 User manual PowerXtreme X20/X30 Dear customer, Thank you for purchasing the high quality PowerXtreme battery from EmergoPlus! This product has been developed using the most modern technologies and quality systems. We assure you that we make every effort to ensure trouble-free operation so that you are happy with your purchase.
  • Page 3: Table Of Contents

    User manual PowerXtreme X20/X30 Table of contents Product description ................4 Safety instructions................. 6 Safety instructions statement ............6 Safety instructions ............... 6 Transport alert ................8 Description and Operation ..............9 LiFePO4 battery for caravan mover ..........9 Charging ..................9 PowerXtreme App ...............
  • Page 4: Product Description

    50 - 60% of the capacity can be used before the battery needs to be recharged. Which makes the X20/X30 battery the right choice for a wide range of applications. Another big advantage compared to lead-acid batteries is that the LiFePO4 battery does not need to be fully charged.
  • Page 5 The PowerXtreme X20 is equipped with Bluetooth technology that allows monitoring of the battery and switching it on and off via an App.
  • Page 6: Safety Instructions

    User manual PowerXtreme X20/X30 2. Safety instructions Safety instructions statement The safety instructions help you to avoid hazards when performing actions. The safety instructions are divided into the following categories: WARNING! Means that the act in question is dangerous and should be prepared before proceeding.
  • Page 7 User manual PowerXtreme X20/X30 contact with the electrolyte, rinse it immediately with plenty of water. After this, consult a doctor. ▪ Use cables of the correct cross-section and keep the cable connections as short as possible. Use reliable cable clamps and tighten the bolts firmly.
  • Page 8: Transport Alert

    Transport alert ▪ The Li-ion battery must be transported in its original packaging. ▪ The X20/X30 batteries have been tested according to the UN handbook for tests and criteria, part III, paragraph 38.3 (ST/SG/AC.10/11/Rev.5). During transport, the battery falls under category UN3480 class 9, packing group II and must be transported in accordance with these regulations.
  • Page 9: Description And Operation

    With heavy use (35 A continuous) you can use the mover for up to 60 (X20) or 75 (X30) minutes. With extreme use (100 A) you can use the mover for approx. 18 (X20) or 24 (X30) minutes.
  • Page 10: Powerxtreme App

    Google Play store (suitable for Android 4.3 or higher) you can download the PowerXtreme App and use it to read the status and health of your battery. When you open the APP a dialog box appears where you can see all Bluetooth devices within the range (<...
  • Page 11 User manual PowerXtreme X20/X30 Capacity: Capacity/Content of the battery in Ah ▪ Status: Charging - Discharging – Standby ▪ Health: of the battery ▪ On/ Off On/ Off switch ▪ SOC indicator Terminal Battery voltage capacity Ah Back to search...
  • Page 12 User manual PowerXtreme X20/X30 Temperature Temperature of the battery cells Cycle life Number of charge/discharge cycles Current Clamp voltage consumptio n/output Temperature Number of charging The UITC info shows 2 "meters", on the left the battery voltage and on the right the current.
  • Page 13: Powerxcharger Xc3 (Optional)

    3.4 PowerXCharger XC3 (OPTIONAL) To charge the battery while driving, the PowerXCharger XC3 is available as an option. This converts the charging voltage of the car alternator into the right charging voltage for the PowerXtreme battery. Due to the limited www.emergoplus.com E18-X20X30-EN00...
  • Page 14: Storage

    In the box, you will find the following parts: ▪ Battery with charger mounted inside Battery terminals + and – Mounting plate with Velcro and 4 self-tapping screws Charging cord 230V Instruction card Figure 2. Package contents X20/X30 www.emergoplus.com E18-X20X30-EN00 Page 14 of 25...
  • Page 15 User manual PowerXtreme X20/X30 After unpacking, check all parts for possible damage. ▪ Fully charge the battery before first use. ▪ WARNING! Never use the LiFePO4 battery in locations with gas or dust explosion hazards or potentially flammable products. Mount the battery pack using the supplied mounting plate and ▪...
  • Page 16 User manual PowerXtreme X20/X30 connections securely. Recommended tightening torque for M6 is 9.9 - 14 Nm. Do not use too great a tightening torque, as this can lead to irreparable damage to the LiFePO4 battery. If you use screws to connect consumers instead of the supplied ▪...
  • Page 17 User manual PowerXtreme X20/X30 CAFEFUL! Observe the polarity of the battery and avoid short circuits! Equipment whose polarity is incorrectly connected can be irreparably damaged. Never connect the battery in parallel to any other type of battery, ▪ including the wiring from the car.
  • Page 18 User manual PowerXtreme X20/X30 System overview: ▪ A = PowerXtreme X20/X30 B = Fuse C = Main switch D = Battery charger Figure 5. Wiring diagram WARNING! Never connect the battery in parallel to another battery, including the wiring from the car.
  • Page 19: Decommissioning

    User manual PowerXtreme X20/X30 4. Decommissioning Electric appliances should not be disposed of with normal household waste. According to the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), these devices must be collected separately in order to recycle them in an environmentally friendly manner possible.
  • Page 20: Technical Specifications

    User manual PowerXtreme X20/X30 5. Technical specifications Denomination Battery pole pole Figure 7. Battery X20 / Figure 6. Battery X20 / Charging cord connection Indication battery capacity + LED indication charging process Figure 8. SOC en charging indicator Technical data...
  • Page 21 User manual PowerXtreme X20/X30 Max. continuous current 100A Momentary current (30 Sec) 150A 200A Peak current (1 sec) 200A 300A Max. charging current Max. charging voltage 14,6V Max. discharge voltage Operating temperature -20 °C to +60 Charge temperature 0 °C to 45 Storage temperature -10 °C to 45...
  • Page 22: Faults And Repairs

    User manual PowerXtreme X20/X30 6. Faults and repairs 6.1 Fault finding table Problem Cause Solution Charger LED-flashes Charger defective. Send charger to red. Emergoplus for repair. Charger LED flashes Possible charger Check charging red after charging for current (4A) with APP.
  • Page 23: Warranty Conditions

    During production and prior to delivery, all PowerXtreme X20/X30 batteries were extensively tested and checked. If you do not act in accordance with the instructions and the regulations of this manual, damage may occur and/or the unit will not comply with our specifications.
  • Page 24: Eg Declaration Of Conformity

    User manual PowerXtreme X20/X30 9. EG Declaration of Conformity EG DECLARATION OF CONFORMITY OF ELECTRICAL EQUIPMENT Declaration according to Directive 2014/35 / EC, as amended This language version of the statement is checked by the manufacturer (original statement). Name EmergoPlus BV...
  • Page 25 User manual PowerXtreme X20/X30 EN60950- Information technology equipment - Safety - Part 1: General requirements 1:2005+A1:2009+A2:2013 and which the following natural or legal person established in the Community is authorized to compile the technical file: Name EmergoPlus BV Name and position...
