KAWNEER 1786 Installation Instructions Manual

Rim exit device

Hide thumbs

Table Of Contents

APRIL, 2018

EC 97904-076

Note: Any modification of the Exit Device done in the field shall void the warranty of the product. Kawneer

cannot guarantee the proper function of an Exit Device that has gone through any type of modification.

Device

C L

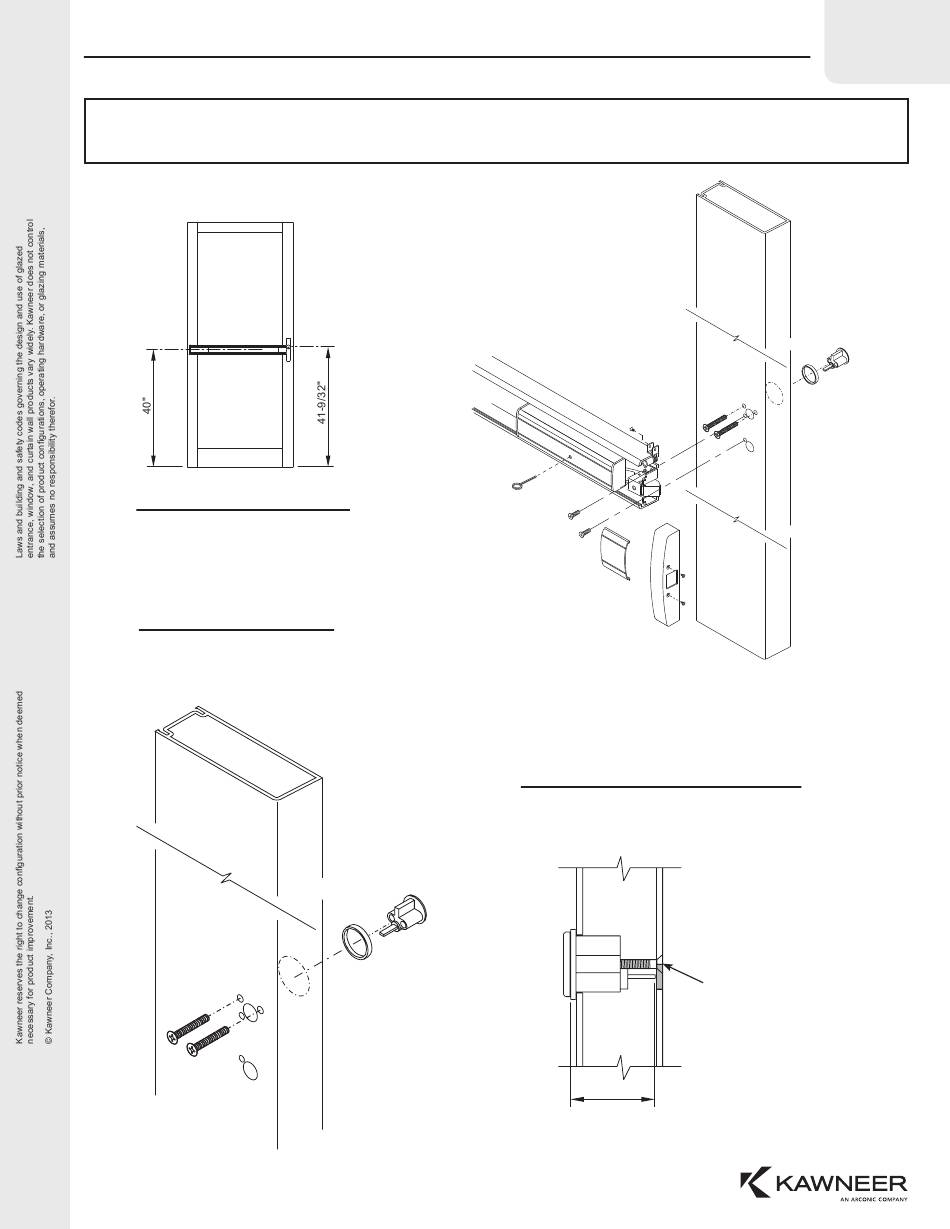

RIM EXIT DEVICE LOCATION

CYLINDER INSTALLATION

Cylinder must be installed before exit device.

Insert cylinder with cylinder ring into the door stile

and secure in place with cylinder mounting screws.

CYLINDER

MOUNTING

SCREWS

kawneer.com

Kawneer 1786 Rim Exit Device

Cylinder

C L

Bottom of door

CYLINDER

CYLINDER RING

INSTALLATION INSTRUCTIONS

EXIT DEVICE

DOGGING KEY

FILLER PLATE

HOUSING COVER

INSTALLING CYLINDERS BY OTHERS

Cut tailpiece to correct length and install.

(Mounting screw heads must be flush with door surface.)

2-1/16"

038311EN

DOOR STILE

CYLINDER &

CYLINDER RING

Cylinder mounting screws

must be flush

Table of Contents

Summary of Contents for KAWNEER 1786

Page 1 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS Note: Any modification of the Exit Device done in the field shall void the warranty of the product. Kawneer cannot guarantee the proper function of an Exit Device that has gone through any type of modification. DOOR STILE Cylinder Device EXIT DEVICE CYLINDER & CYLINDER RING Bottom of door RIM EXIT DEVICE LOCATION DOGGING KEY FILLER PLATE CYLINDER INSTALLATION HOUSING COVER Cylinder must be installed before exit device.
Page 2 EC 97904-076 OPTIONAL TRIM 1786 RIM EXIT DEVICE LEVER HANDLE TRIM ASSEMBLY/INSTALLATION INSTRUCTIONS: 1) Trim mounting base is handed to accommodate a left or right handle application. To construct a left hand (LH) lever handle, rotate cam clockwise making sure the cam pin aligns with slot on left side of cam guide. (See Illustration below) Once the pin is in position, slightly push up and hold cam guide and cam while inserting lever handle firmly into place within the trim mounting base.
Page 3 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS Cylinder retaining ring Mounting guide plate Trim mounting base 15/16" cylinder with 0.800" cam 1/4"-20 x 1/2" PPHS Steel flat washer & lock washer Lever handle (Shown as LH) Non.
Page 4 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 EXIT DEVICE WITH PUSH PAD DOGGING TO DOG EXIT DEVICE TO UNDOG EXIT DEVICE Insert the hex key and turn clockwise until it stops. Push on touch bar. Insert hex key and turn clockwise Fully depress touch bar and release the key.
Page 5 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS EXIT DEVICE WITH CYLINDER DOGGING 1) Install pivot stile filler plate into exit device. 2) Install cylinder as pictured, making sure cylinder is tight against filler plate. Cylinder dogging will use a 15/16” long cylinder with 0.800 cam sweep. Utilizing longer cylinders will require a trim ring to obtain the appropriate projection.
Page 6 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 FINAL ASSEMBLY 1) Slide pivot stile filler plate into exit device and attach pivot stile end cap with fasteners provided. (Filler plate with cylinder dogging has been installed previously) 2) Slide lock stile filler plate into exit device.
Page 7 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS 038311EN kawneer.com...
Page 8 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 038311EN kawneer.com...
Page 9 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS 038311EN kawneer.com...
Page 10 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 REMOVABLE MULLION HEADER/T-BAR PREP 1) Prep Header/T-Bar as shown below. 0.281 Ø THRU HOLE (2) PLACES 1.125 0.201 Ø (#7 DRILL) THRU HOLE 0.562 FOR #14 SELF TAPPING SCREW...
Page 11 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS REMOVABLE MULLION INSTALLATION 1) Attach shoe mullion mounting plate to header/t-bar as shown. 2) Attach top shoe mullion to mounting plate on header/t-bar as shown. 3) Secure bottom shoe mullion to floor as shown.
Page 12 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 MULLION STABILIZER INSTALLATION 1) Attach frame portion stabilizers in holes provided on mullion with 2 ea. #10-24 x 7/8" O.H.M.S. 2) Close door and align door portion on the door, allowing 1/16" for clearance, as shown.
Page 13 Kawneer 1786 Rim Exit Device APRIL, 2018 EC 97904-076 INSTALLATION INSTRUCTIONS THIS PAGE LEFT INTENTIONALLY BLANK 038311EN kawneer.com...
Page 14 Kawneer 1786 Rim Exit Device APRIL, 2018 INSTALLATION INSTRUCTIONS EC 97904-076 Kawneer Company, Inc. Technology Park/Atlanta 555 Guthridge Court Norcross, GA 30092-3503 038311EN kawneer.com...
