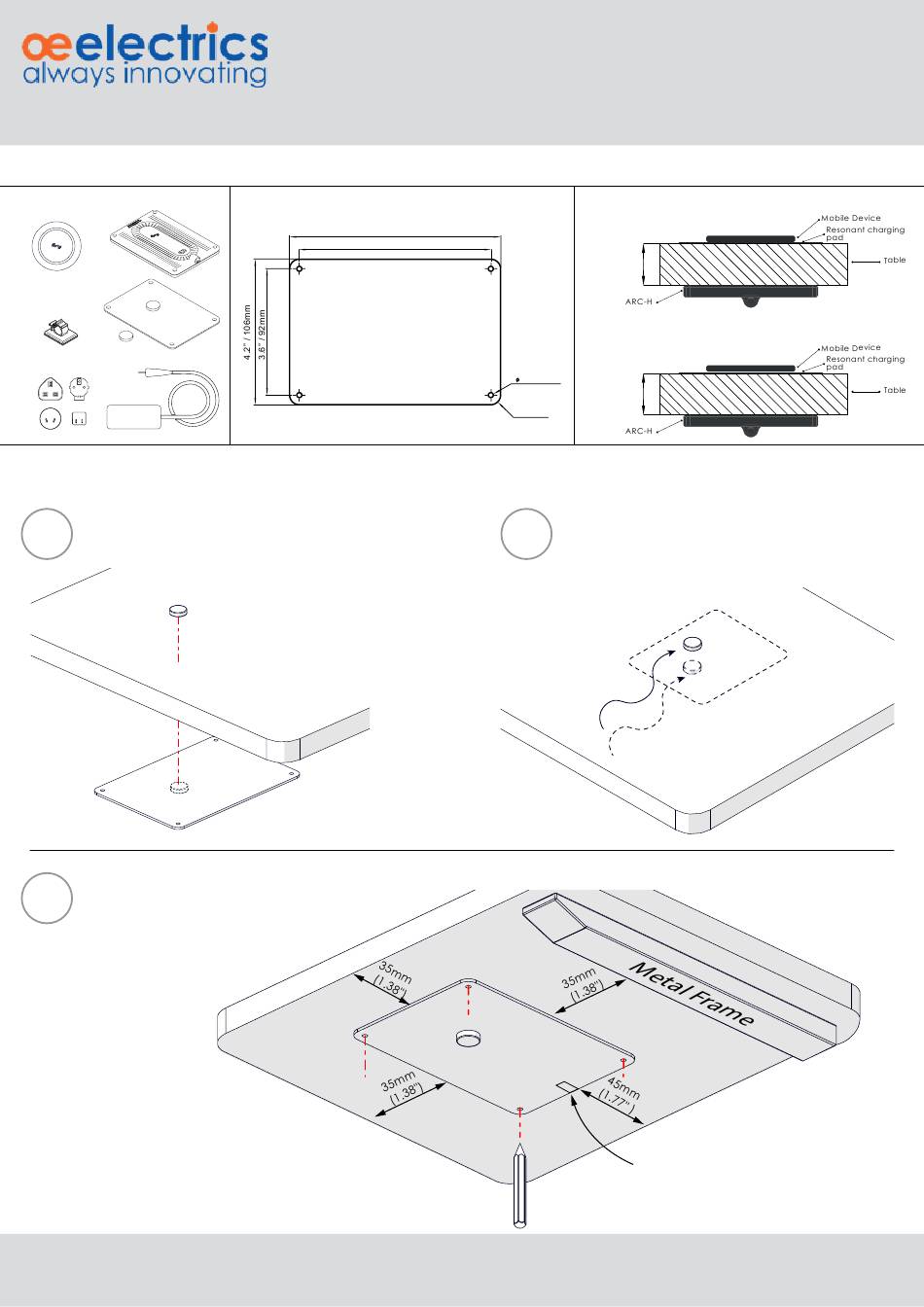

ARC-H LD installation instructions
ARC-H (LD) is designed for surfaces 20-50mm (0.78-2") thick. However, for USA, FCC compliance requires ARC-H to be fitted to
worksurfaces 20-30mm (0.78-1.18") only
Contents
1x
1x
3x
1x
1x
1x
The ARC logo identifies the coil centre which must be aligned with the resonator pad
1
Attract magnets (thicknesses up to
25mm / 0.98")
3
Adjust to ensure correct clearance
and mark screw holes
UK -
sales@oeelectrics.co.uk / +44 (0) 1924 367 255
AUS -
sales@oeelsafe.com.au / 1300 ELSAFE (357 233)
Dimensions
6" / 152mm
5.4" / 138mm
INSTR1256
Desk thickness U.S.A
.6"-1"
0.78-1.18"
(15-25mm)
Desk thickness Euro
3.60
.6"-1"
0.78-2"
(15-25mm)
R7.00
2
Move guide to your desired location
Cable Entry
DE -
info@oeelectrics.de / +49 (0)2261 958 3001
U.S.A -
sales@oeelectrics.com / +1 (844)-927-0600
www.oeelectrics.com
Advertisement
Table of Contents
Related Manuals for OE electrics ARC-H LD
Summary of Contents for OE electrics ARC-H LD
- Page 1 INSTR1256 www.oeelectrics.com ARC-H LD installation instructions ARC-H (LD) is designed for surfaces 20-50mm (0.78-2”) thick. However, for USA, FCC compliance requires ARC-H to be fitted to worksurfaces 20-30mm (0.78-1.18”) only Contents Dimensions Desk thickness U.S.A 6” / 152mm 5.4” / 138mm .6"-1"...
- Page 2 INSTR1256 www.oeelectrics.com ARC-H LD installation instructions Fit ARC-H with tape (provided) or Place resonator pad where the magnet screws indicated Cable Entry Place phone on the resonator pad and Connect power and check for blue LED charge ARC-H Coil Center...
- Page 3 INSTR1256 www.oeelectrics.com ARC-H LD installation instructions The ARC logo identifies the coil Common queries / installation centre which must be aligned with problems the Resonator Pad Common queries The phone will not charge when I place the phone directly on the charger, to check it works before installation? The charger will not charge a phone unless it is separated (and aligned) from the phone by at least 20mm (0.8”)
