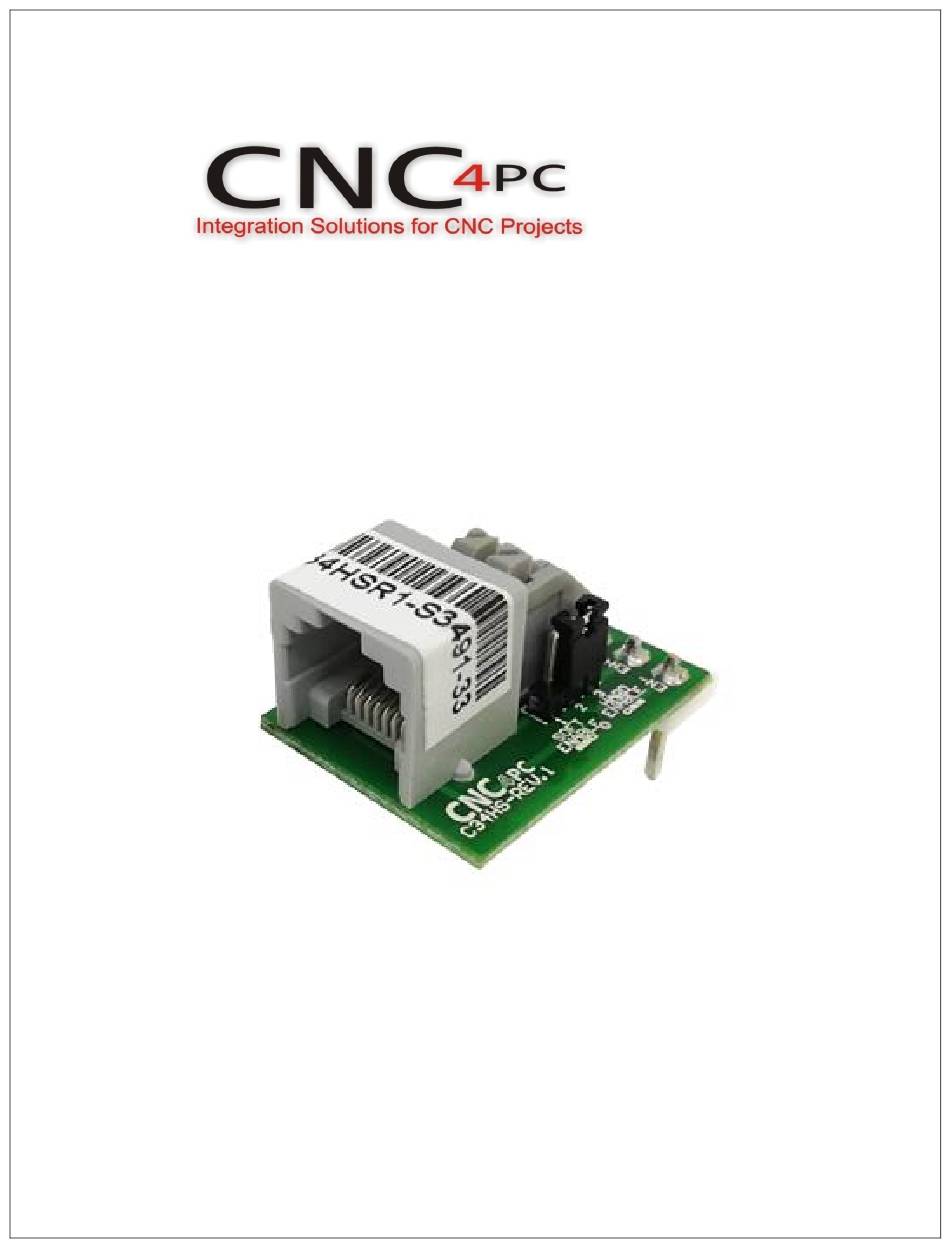

- Page 1 USER’S MANUAL VER. 1 C34HS BOARD Rev. 1 OCTOBER, 2018...
- Page 2 USER'S MANUAL TABLE OF CONTENTS Page # Contents OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE ENABLE ................2 ALARM TERMINAL ......................2 WIRING SAMPLE ......................3 PINOUT ........................... 4 DIMENSION ........................5 User’s Manual Page i...

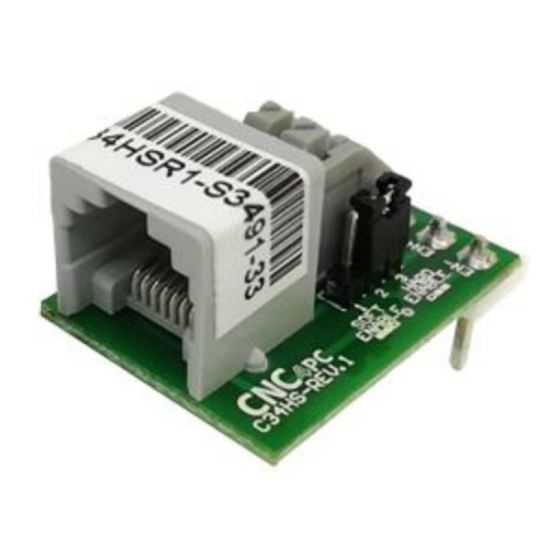

- Page 3 OVERVIEW This board interface is used for the connection between C82, C76, M16D and LEADSHINE HYBRID SERVO DRIVE. FEATURES • RJ45 Driver Input Connector • Select Jumper for Hard Enable or Soft Enable. • Alarm terminal BOARD DESCRIPTION User’s Manual Page 1...
- Page 4 JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. Set of jumpers as shown in the image. SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. Set of jumpers as shown in the image.
- Page 5 WIRING SAMPLE User’s Manual Page 3...
- Page 6 PINOUT C34HS CONNECTOR RJ45 RJ45 Pins Function NOT USED PUL+ NOT USED DIR+ NOT USED 8 (5V) User’s Manual Page 4...
- Page 7 DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
