RHOX BOX-117 Installation Instructions Manual

E-z-go rxv utility box mounting kit

Hide thumbs

Table Of Contents

Contents of BOX-117 Utility Box Mounting Kit:

Caution: Please read through the instructions carefully. Installer is responsible for

damage if instructions are not followed properly. Look behind each drill or cut loca-

tion BEFORE YOU DRILL OR CUT. Installer is responsible for damage (i.e. drilling/

cutting into a wiring harness, battery, fuel tank etc.). Extra installers will be helpful in

some parts of the installation. Refer to vehicle's maintenance manual for torqueing

specifications on reused hardware.

BOX-117

E-Z-Go RXV

Utility Box Mounting Kit

Installation Instructions

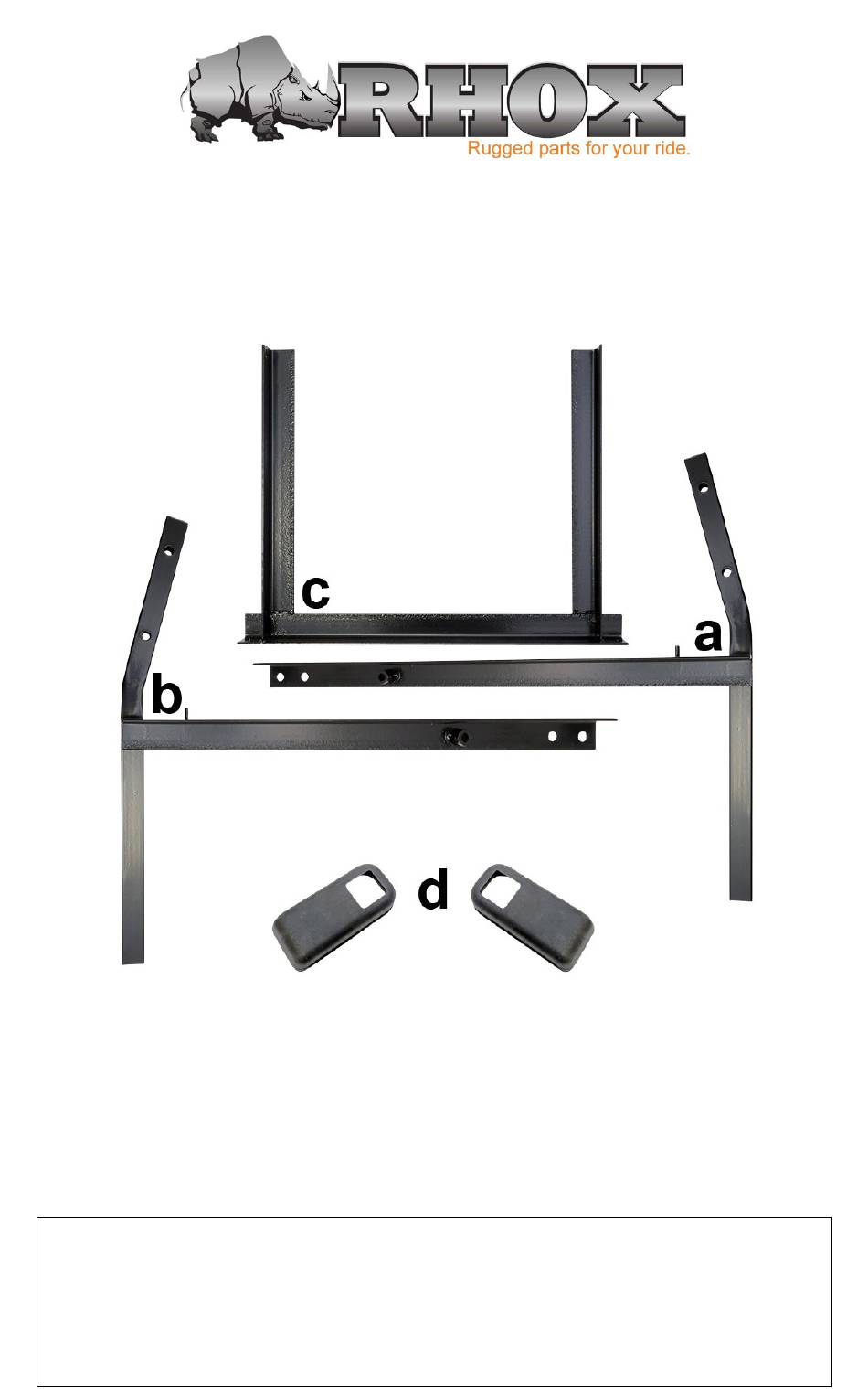

(1 ea.) Utility Box Support Frame, Driver Side

(1 ea.) Utility Box Support Frame, Passenger Side

(1 ea.) Vertical Support Bracket

(1 ea.) Utility Box Mounting Bracket Boots

(1 ea.) Latch Kit (Contents on Next Page)

(1 ea.) Box of Hardware (Contents on Next Page)

Table of Contents

Need help?

Do you have a question about the BOX-117 and is the answer not in the manual?

Questions and answers

Summary of Contents for RHOX BOX-117

Page 1 BOX-117 E-Z-Go RXV Utility Box Mounting Kit Installation Instructions Contents of BOX-117 Utility Box Mounting Kit: (1 ea.) Utility Box Support Frame, Driver Side (1 ea.) Utility Box Support Frame, Passenger Side (1 ea.) Vertical Support Bracket (1 ea.) Utility Box Mounting Bracket Boots (1 ea.) Latch Kit (Contents on Next Page)
Page 2 Contents of BOX-117 Hardware Kit Qty. 10mm-1.5 x 45 Hex Head Bolts 10mm-1.5 x 25 Phillips Head Truss Bolts 10mm Flat Washers 10mm Nylock Nuts Latches Latch Mounting Brackets Latch Catches 10-32 x 1” Pan Head Phillips Machine Screws #10 Flat Washers...
Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove top. NOTE: If reinstalling the top, keep the top attached to the front struts and prop up the rear of the top using a broom handle or similar tool.
Page 4 Remove sweater basket. Discard hardware. Remove access panel. Retain hardware. Remove both seat back support brackets and rubber boots. The brackets are attached to the frame, under the body. (Passenger Side) Utility Box Mounting Kit Installation Slide a new boot around the bottom of each of the utility box support frames.
Page 5 Remove the (2) OE Torx Bolts in the bagwell area. Loosely fasten the vertical support bracket to the bagwell area using the (2) Original Torx Bolts. Page 5...
Page 6 Fasten the original seat back to the utility box support frames using the Original Hardware removed on Page 3 (blue arrows). If reinstalling the OE rear struts, install them to the utility box support frames using the Original Hardware (blue arrows). Place the utility box on top of the utility box support frames.
Page 7 This completes the installation of your RHOX Utility Mounting Kit and Utility Box. Please enjoy safely! Scan QR code or use the link below to view the installation video. https://vimeo.com/user39935056 Page 7...
