ELCA VENUS 2-S Instructions

Control board for rolling-shutters with limit-switches.
FOLLOW THIS
INSTRUCTIONS
CAREFULLY !!
This manual
contains important instructions for
the installation and use of the
board mod. "VENUS2s". Don't install
before reading this manual, the
product's security depends on a
correct installation. The installation
must be done by qualified
technicians. The board must have a
special box to protect from water
infiltration or damp. The board
mustn't be exposed to sources of
heat or electromagnetic fields.
Install the board in airy place and
far from inflammable material. The
producing company declines any
responsibility in case of a not
correct installation or improper
.
use
The product respects the European
norms: 2006/95/CE (CEE73/23,
CEE93/68),2004/108/CE (CEE89/336),
CEE89/106, CEE89/392,
SYMBOLS
IMPORTANT !! for
product's use
INFORMATION for the
IMPORTANT !!!
installation security
have disconnected the main alimentation !
DISCONNECT THE GENERAL SWITCH before every connection !!
DANGER in presence
of high tension !
INPUTS FUNCTION
START / STOP Commands:
Norm. open OPEN> STOP > CLOSE > STOP >....
During the pause time a command
excludes the automatic closing.
STOP Stops the rolling-shutter and
Norm. close excludes the automatic closing.
PHOTO-CELLS During the closing time it inverts the
Norm. close movement of rolling-shutter in
opening time.
MOTOR AND ALIMENTATION'S CONNECTIONS
ATTENTION !
The installation
SINGLE-PHASE MOTOR 230Vac
must have a switch with opening
500W MAX
contacts at least 3mm for the
omnipolar disconnection. The
change tension and the wiring connections
can be made after to have disconnected the
BOARD'S ALIMENTATION:
alimentation ! DISCONNECT THE GENERAL
230Vac 50Hz
SWITCH before every connections !
REV 0.A

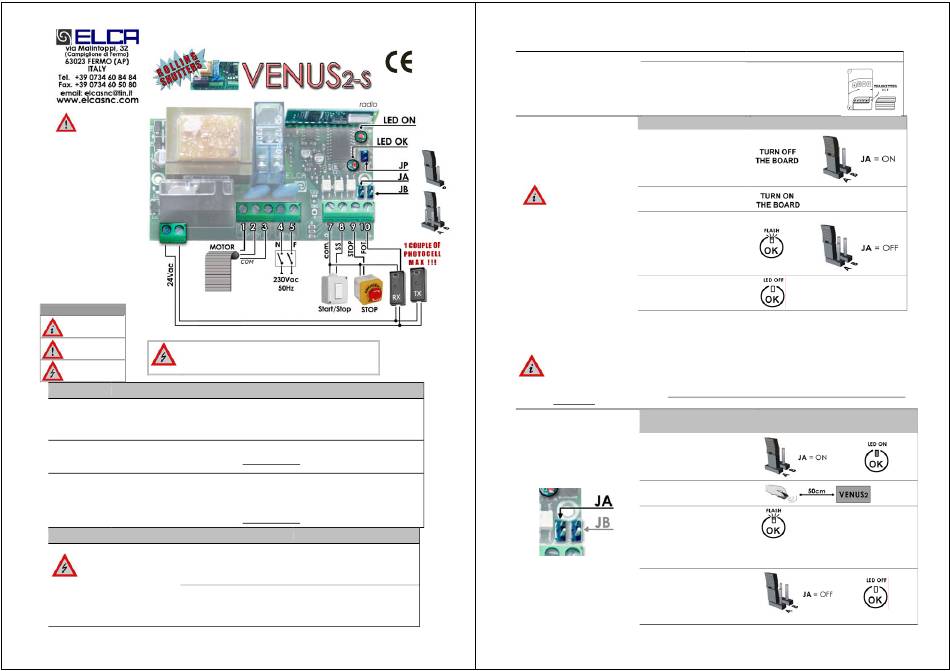

FIG1
All the wiring connections must be done after to
TERMINALS'CONNECTIONS
Terminals 7 [com] and 8 [SS]
Terminals 7 [com] and 9 [STOP]
If you don't use it, short-circuit the terminals 7and 9
Connect the photo-cells' alimentation to 24Vac
output of board (1 couple max).
The NC contact of photo-cell (receiver) must be
connected to terminals 7 [com] and 10 [PHOT.]
If you don't use it, short-circuit the terminals 7and 10
TERMINALS'CONNECTION
Connect the motor to terminals:
1 (closing),
2 (opening),
3 (comune)
Connect the alimentation to
terminals:
4 (NEUTRO)
5 (PHASE)
1
BOARD PROGRAMMING
BASE PROGRAM MOTOR'S RUN: 30sec
RADIO CODE
The board has a BASE program.
You can come back to the BASE
program, making the Reset
procedure.
RESET PROCEDURE PROCEDURE
1) Turn off the board and put a
The reset procedure allows to
little bridge on JA
come back to the BASE program,
deleting all the programs
memorised.
With the reset
procedure you come
2) ) Turn on the board
back to the BASE
code (standard
transmitter 53200, button n.1,
3) When the OK led starts to
dip1,3,5,7,9 in OFF position and
flash , take off the little bridge
dip2,4,6,8,10 in ON position)
JA
4) When the OK led turns off,
the reset procedure is ended
RADIO COMMANDS
the board can be commanded by the transmitter. You can memorise n.
n.15 rolling-codes
. The BASE code is (standard 53200, button n.1, dip 1,3,5,7,9 in ON position and dip 2,4,6,8,10 in OFF position),
it's erased with the first code that you memorise.
ATTENTION!!: To use the transmitter, the board must have the radio receiver. (see fig.1 , pag.1)
ROLLING-CODES !. If the first code memorised is a Rolling-code, the board stops to receive the standard-codes 53200(
10dip). To receive the standard-codes 53200 you have to make the reset procedure (see pag.2).
TRANSMITTERS PROGRAMMINGI ! When you program the transmitters, you have to keep a distance at least 50cm between
the transmitter and the board..
PERSONAL CODE ! If you use the standard-codes (10-dip) you have to put a personal code, positioning the 10 dips on the
transmitter, before to memorise the board. After to have memorised the new code on board you can't change the dip position on
the transmitter!
START/STOP CODES
PROCEDURE
PROGRAMMING (SS)
1) Put the little bridge on JA.
START/STOP function to command
The OK led turns on..
the motor.
For this procedure you have to use
the little bridge JUMPER A:
2) Send a radio code that you
want to memorise.
3) The OK led makes a fast flash if
the code has been memorised,
or it makes a slow flash if the
code is just in memory.
(If the OK led makes 3 flashes that
means the memory is full and you
can't memorise other codes.)
4) If you want to memorise other
radio codes SS, you have to
repeat from point 2 or take off
the little bridge JA
AUTOMATIC CLOSING: Excluded
Standard transmitter
53200
Button 1
Dip code :
1,3,5,7,9 in ON position
2,4,6,8,10 in OFF position
PICTURES
41 standard-codes or
PICTURES
1 fast flash: code memorised
1 slow flash: code is just in memory
