ESBE FLEXI GDF111 Series Quick Start Manual

ESBE FLEXI GDF111 Series Quick Start Manual

Circulation unit

Advertisement

Available languages

Available languages

Quick Links

ESBE SYSTEM UNITS

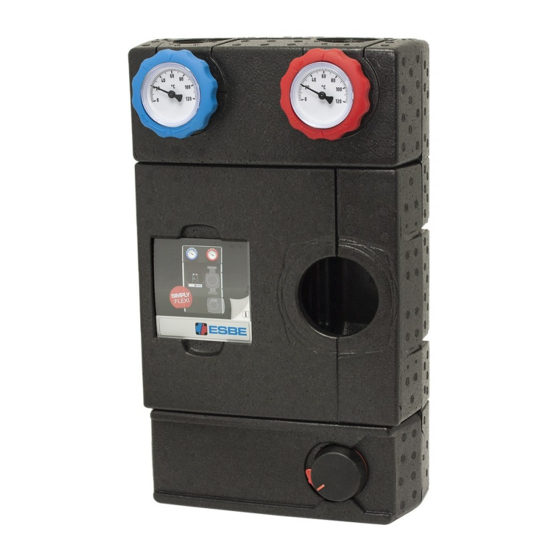

CIRCULATION UNIT FLEXI
GB
CIRCULATION UNIT FLEXI
Mtrl.nr. 9814 09 43 • Ritn.nr. 7574 utg. D• Rev. 1704

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLEXI GDF111 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ESBE FLEXI GDF111 Series

  • Page 1 ESBE SYSTEM UNITS CIRCULATION UNIT FLEXI CIRCULATION UNIT FLEXI Mtrl.nr. 9814 09 43 • Ritn.nr. 7574 utg. D• Rev. 1704...
  • Page 2 PAGE CONTENT ESBE SYSTEM UNITS CIRCULATION UNIT FLEXI Series and Function • General/Safety Mounting Hydraulic Installation, Commissioning How to use the information leaflet • Maintenance • Spare parts GENERAL/SAFETY PED 2014/68/EU, article 4.3 Max. operating pressure: PN 6 This instruction manual is an essential component of the product. Read the instructions and the warnings carefully as they contain important information about a safe installation, usage and maintenance.
  • Page 3 MOUNTING POSSIBLE INSULATION ADJUSTMENTS EXAMPLE OF PUMP INSTALLATION LEFT - RIGTH TRANSITION 3 (32)
  • Page 4 WARNING! Equipment might be damaged when incorrect usage of tools. 5. Remount the insulation shell parts (and actuator/controller). You find more information about the circulation pump on www.esbe.eu. ACTUATOR: Actuators supplied with 230 VAC should be preceded by a mulitipole contact breaker in the fixed installation.
  • Page 5 WARNING Switch off the electric supply before any operation. Pay attention to the hot water contained. SPARE PARTS Spare parts are ordered via ESBE customer service. In order to avoid queries and incorrect orders, all data on the name plate should be submitted for each order.
  • Page 6 SEITE INHALT ESBE BAUGRUPPEN PUMPENGRUPPE SERIE FLEXI Serie und Funktion • Allgemeine Informationen/Sicherheit Montage Hydraulische Einbindung • Inbetriebnahme Info-Einleger • Wartung • Ersatzteile ALLGEMEINE INFORMATIONEN / SICHERHEIT PED 2014/68/EU, article 4.3 Maximaler Betriebsdruck: 6 Bar Diese Anleitung ist ein wesentlicher Bestandteil des Produkts. Lesen Sie die Anweisungen und Warnhinweise sorgfältig durch, da sie wichtige Informationen...
  • Page 7 MONTAGE ANPASSEN DER ISOLIERSCHALEN EINBAU DER UMWÄLZPUMPE UMBAU "VORLAUF RECHTS" AUF "VORLAUF LINKS" 7 (32)
  • Page 8 WANDINSTALLATION, MEHRERE PUMPENGRUPPEEN MONTAGE Werden mehrere Pumpengruppen montiert, empfehlen wir die Verwendung von Verteilerbalken der Serie ESBE GMA. Diese können separat bestellt werden WANDINSTALLATION, EINZELNE PUMPENGRUPPE und sind für zwei oder drei Pumpengruppen sowie mit oder ohne integrierte Vor Beginn der Montage sind die statischen Bedingungen des Einsatzortes zu hydraulische Weiche erhältlich.
  • Page 9 Komponenten spannungslos geschaltet sind. Achten Sie zudem auf heißes Wasser in den Leitungen. ERSATZTEILE Ersatzteile können über den ESBE Kundendienst bestellt werden. Um Rückfragen und Bestellfehler zu vermeiden, nennen Sie unbedingt die auf dem Typenschild genannten Daten.
