Kramer VA-14 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VA-14 4x1 Balanced Audio Mixer
1 Power supply (12V DC)
Step 2: Get to know your VA-14

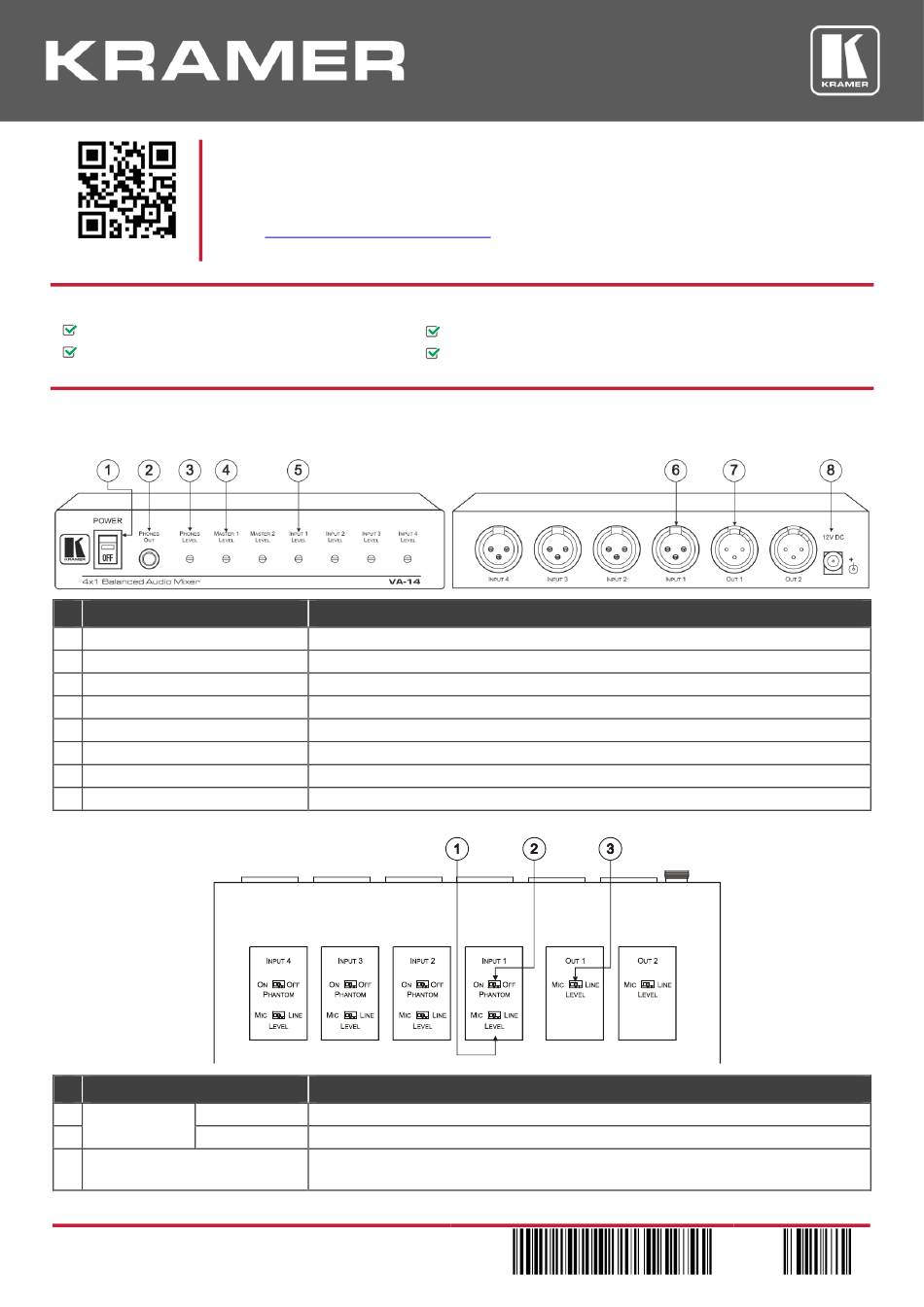

VA-14 Front and Back Panels:
# Feature
1 POWER Switch
2 PHONES OUT 6.5mm Connector
3 PHONES LEVEL Potentiometer
4 MASTER LEVEL Potentiometer
5 INPUT LEVEL Potentiometer
6 INPUT XLR Female Connectors
7 OUT XLR Male Connectors
8 12V DC
VA-14 Underside:
# Feature
1 INPUT PHANTOM
(from 1 to 4)
2 LEVEL
3 OUT LEVEL
VA-14 Quick Start
VA-14 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VA-14
upgrades are available.
Function
Illuminated switch for turning the unit ON or OFF.
Connect to the headphone set.
Use to adjust the headphone volume.
Use to adjust the combined signals from all inputs mixed to the output (from 1 to 2).
Use to adjust the input level (from 1 to 4).
Connect to the audio source (from 1 to 4).
Connect to the audio acceptor (from 1 to 2).
Connect to the 12V power supply.
Function
Set to ON to select a phantom microphone. Set to OFF to select a dynamic microphone.
Set to MIC to select a microphone level input. Set to LINE to select a LINE level input.
Set to MIC to select a microphone level output. Set to LINE to select a LINE level output
(from 1 to 2).
VA-14 for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 2 7 1 QS Rev: 2
