West Elm Mid Century 7668804 Assembly Instructions Manual

West Elm Mid Century 7668804 Assembly Instructions Manual

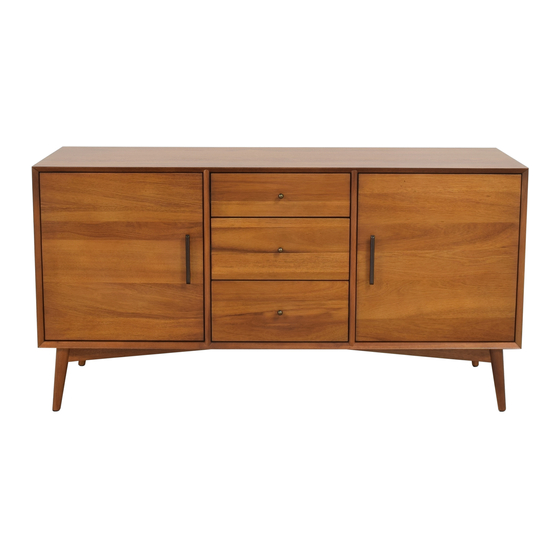

Console large

Advertisement

Please read all instructions before beginning assembly.
Imported by / Importé par
WEST ELM
3250 Van Ness, San Francisco, CA 94109
WARNING
For use with televisions weighing 135 lbs / 61.2 (Kgs) or less with a maximum width of 58 inches /147.3
(cm) which represents the overall width or inside dimension of the unit the TV will be placed on.
Attention : this unit is not rated for use with a CRT type television.
WARNING
Death or serious injury may occur when children climb on audio and/or video equipment furniture. A
remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a
result for furnishing may tip over on to the child.
WARNING
Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or
video equipment may result in death or serous injury due to the furnishing collapsing or over turning onto
a child.
All other support shelves should not be loaded more than 25 lbs.
DO NOT EXCEED RECOMMENDED LOAD. Use with heavier televisions may result in instability causing tip
over resulting in death or serious injury.
Please use caution when using electrical equipment. Improper use could result in the risk of fire, electric
shock or injury to persons associated with the use of this unit during operation, user-maintenance, loading,
storage, and, as applicable, electrical issues including grounding or double-insulation.
Electronic components generate heat that may cause damage to the equipment. Please refer to the
manufacturer's owner's manual for space and ventilations requirements.
Do not allow children under 16 years to move cart.
7668804, 7668820; 7669125 ; 7649143 – 12.23.14
mid century console large
Grande console Mid Century
Mid Century Consola Grande
assembly instructions
instructions d'assemblage
instrucciones de ensamblaje
7
Page 1 of

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mid Century 7668804 and is the answer not in the manual?

Questions and answers

Summary of Contents for West Elm Mid Century 7668804

  • Page 1 Imported by / Importé par WEST ELM 3250 Van Ness, San Francisco, CA 94109 WARNING For use with televisions weighing 135 lbs / 61.2 (Kgs) or less with a maximum width of 58 inches /147.3 (cm) which represents the overall width or inside dimension of the unit the TV will be placed on.
  • Page 2 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje For use with televisions weighing 135 lbs / 61.2 (Kg) or less with a maximum width of 58 inches / 147.3 (cm) Pour utilisation avec des téléviseurs pesant moins de 135 lbs/61.2 kgs et étant d’une largeur maximale de 58...
  • Page 3 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje MISE EN GARDE Pour utilisation avec des téléviseurs pesant moins de 135 lbs/61.2 kgs et étant d’une largeur maximale de 58 po/147.3 cm ce qui représente la largeur totale ou la dimension intérieure de l'unité sur laquelle le téléviseur sera posé.
  • Page 4 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje ! Do not throw away packaging materials until assembly is complete. ! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish. ! Proper assembly of this item requires 2 people.
  • Page 5 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje Place the Top Unit upside down on a clean smooth surface. Align wooden dowels on top of the legs with pre-drilled holes on bottom of top unit. Insert bolt (B), spring washer (C), flat washer (D).
  • Page 6 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje To change position of shelf, unscrew Wood Screws under the shelf to remove shelf from shelf supports. Insert shelf supports to the corresponding holes and place the shelf back onto the shelf supports.
  • Page 7 mid century console large Grande console Mid Century Mid Century Consola Grande assembly instructions instructions d’assemblage instrucciones de ensamblaje NOTICE: To prevent injury and property damage from unexpected tipping of furniture, we highly recommend installation of the anti-tip kit included with this product. Attaching furniture to wall with anti-tip kits.
