Dear customers, thank you very much for purchasing one of our Uniteck products. Please carefully and
thoroughly read all the instructions before using the product.
DESCRIPTION
DESCRIPTIO

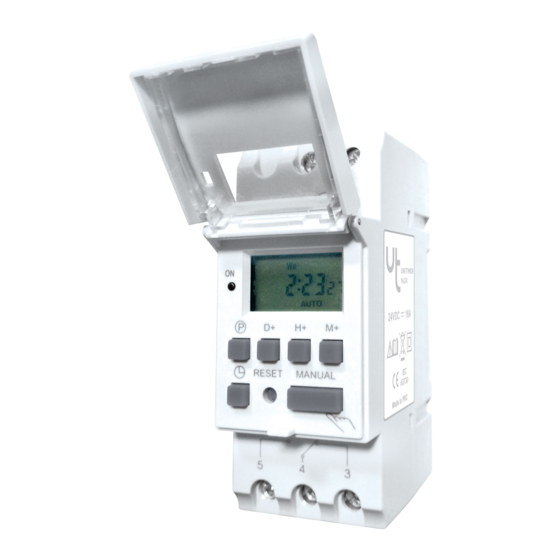

Unitimer is a 12V or 24V (depending on model) electronic timer is ideal for your photovoltaic or grid
installations.
Unitimer automatically and precisely turns ON or OFF until 16A electrical devices using its
integrated digital clock.
Unitimer allows y o u to monitor your lighting, watering, fountain, prewarming, light display,
alarm, video surveillance...
Unitimer presents many advantages :
- up to 17 ON/OFF possible settings with one second accuracy, which can be set for a specific day, for
the weekend, for the whole week or for only certain days of the week.
- LCD Display with transparent cover protection.
- 2 possibilities of connection (NO or NF) for maximum of safety according to your applications and
/or to optimize unitimer's self-consumption.
- integrated lithium battery to preserve your settings in case of power failure.
INSTALLATION – FIXING
Unitimer has been designed for an indoor use.
It can be fixed on DIN rail 35mm of your electric al panel.
Connect your battery to the timer :
-
Positive cable on terminal 1
-
Negative cable on terminal 2
Led ON lightens.
Unitimer offers 2 ways of connection to choose according to your application :
- normally open (NO), on 4 & 5 terminals : in case of default, power will be
switched off. This connection is recommended for watering application for
example.
- normally closed (NC), on 3 & 4 terminals :in case of default, your electrical
devices will still be powered.
www.uniteck.fr
EN
I
9/23
Advertisement
Related Manuals for Uniteck Unitimer 16.12
Summary of Contents for Uniteck Unitimer 16.12
- Page 1 Dear customers, thank you very much for purchasing one of our Uniteck products. Please carefully and thoroughly read all the instructions before using the product. DESCRIPTION DESCRIPTIO Unitimer is a 12V or 24V (depending on model) electronic timer is ideal for your photovoltaic or grid installations.
-
Page 2: Installation And Connection
For a 2 hours light activation per day, it is better to choose a NO connection (3W= 22H x 0,08W + 2H x 0,6W), than a NF connection (13,4W =22H x 0,6W + 2H x 0,08W) WIRING DIAGRAM electrical device (alarm, watering...) Normally open (NO) Normally closed (NC) www.uniteck.fr 10/23... -
Page 3: Control Panel Description
To set time and current date for example) to reset programs and settings. Manual button : LED ON light : To select ON, OFF or auto Lights on when the normally To delete a program open circuit is closed www.uniteck.fr 11/23... - Page 4 Once the settings done, press on the P button The screen displays : Repeat the same procedure for the desired number of actions (17 maximum) Press on the clock button to launch the programs set earlier www.uniteck.fr 12/23...
- Page 5 • Please keep an eye on children to ensure they do not play with the device. www.uniteck.fr 13/23...
- Page 6 1 mm and against splash water from all directions. COMPLIANCES STATEMENT UNITIMER 16.12 / 16.24 is manufactured in compliance with the following European directives: - Low voltage directive: 2006/95/CE from the 12/12/06. - EMC directive: 2004/108/CE from the 15/12/2004- 03/05/1989.
-
Page 7: Warranty
Caution : Our after-sales service does not accept postage due returns. After the warranty, our after-sales service ensures repairs after acceptance of a quotation. After-sales service contact : Société Uniteck, Immeuble le Cassis, 8 Avenue de Rome 34350 Vendres France E-mail: ctc@uniteck.fr...
