- Page 1 User Manual DecoRad® Floormate DecoRad® Systems bv Fokkerstraat 25 3905 KV Veenendaal The Netherlands Phone: +31(0)318-550425 E-mail: info@decorad.com www.decorad.com...
-
Page 2: User Manual
User Manual Floormate – V. 2.7 B/C Preface The DecoRad® Floormate is the safest and most advanced on-site UV curing machine on the market today. It is used for curing floor coatings, varnishes and oils in seconds ! DecoRad® Systems equipment is developed in close cooperation with coating companies and build with the latest technology. -
Page 3: Table Of Contents
1.5 Copyright ......................4 1.6 Liability ......................4 2. Safety ........................5 2.1 Safety Symbols in this User Manual..............5 2.2 Symbols on the DecoRad® Floormate .............. 5 2.3 Usage ........................ 6 2.4 Maintenance ..................... 6 2.5 Safety Regulations .................... 6 2.6 UV radiation ...................... -
Page 4: Introduction
User Manual Floormate – V. 2.7 B/C 1. Introduction Carefully read through this user manual before using the DecoRad® Floormate. Optimal safety is only guaranteed if the user instructions, as described in this manual, are observed. The DecoRad® Floormate can only be operated by sufficiently qualified personnel. -
Page 5: Ce Marking
The manufacturer of the DecoRad® Floormate provides a 12 month carry-in warranty for parts and repair costs*. This warranty is only valid if the DecoRad® Floormate is used according to the specifications and the user and maintenance instructions are observed. -
Page 6: Safety
User Manual Floormate – V. 2.7 B/C 2. Safety This chapter describes the safety measures pertaining to the DecoRad® Floormate. Carefully read this chapter before putting the DecoRad® Floormate into operation or performing maintenance work. 2.1 Safety Symbols in this User Manual The following symbols are used in this user manual: A comment draws the user's attention to possible problems. -
Page 7: Usage
( clean with IPA alcohol and paper tissue ) 2.5 Safety Regulations The DecoRad® Floormate meets the fundamental safety and health demands of the relevant guidelines of the European Community. However, in case of inexpert or careless use, dangerous situations may still arise. -
Page 8: Risks Of Uv Radiation
User Manual Floormate – V. 2.7 B/C 2.7 Risks of UV Radiation Both UVA and UVB can damage cells and genetic material, thus leading to skin cancer. UVB poses the greater risk here. Even though scientists used to think that UVA was not harmful, newer research has proven that UVA contributes 10 to 20 percent to the cancer risk. -
Page 9: User
The lamp emits large amounts of heat; keep out of reach of explosive or highly flammable mixtures. Make sure that the room where the DecoRad® Floormate will be used is properly lit and ventilated. The Floormate should be lifted by 2 persons. -
Page 10: Machine Description

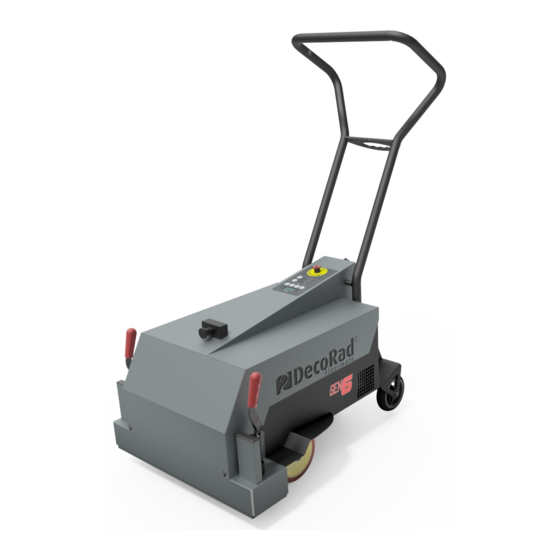

User Manual Floormate – V. 2.7 B/C 3. Machine Description This chapter describes the parts and operational use of the DecoRad® Floormate. 3.1 Function The DecoRad® Floormate is the ultimate tool for instantly curing floor coatings, varnishes and oils. With the help of UV, it can instantly cure up to 250 square meter per hour (depending on the type of substrate, layer thickness and product). -
Page 11: Control Elements
User Manual Floormate – V. 2.7 B/C 3.3 Display “ON” button: switch on “OFF” button: switch off “+ and –“ buttons (individual and/or together): set speed “enter” button: confirm “cancel” button: cancel Emergency stop 3.4 Equipment and standard accessories - UV-personal safety package - Extension cord - Heat shield - Custom-made flight case (for transportation) -
Page 12: Putting Into Operation
Power cable CEE – UL 1. Connect the supplied power cable with the blue connector to the DecoRad® Floormate as indicated on the images below. 2. ATTENTION: make sure the power cable connector is firmly connected to the blue... - Page 13 User Manual Floormate – V. 2.7 B/C As soon as the power ON button on the display is pressed, the Floormate’s electronics will start working. Adjust the UV lamp to the right height by using the red adjustment levers. The recommended height is as low as possible. Place the heat shield underneath the UV lamphouse before starting the UV lamp, and also during cooling down.
-
Page 14: Operation
User Manual Floormate – V. 2.7 B/C 5. Operation 5.1 Switching the DecoRad® Floormate On Connect the power cable to the Floormate and the mains. Press the Power On button in the rear of the Floormate next to the blue power connector The software version will shortly appear on the screen and the cooling fan will turn on. -
Page 15: Switching The Decorad® Floormate Off
5.2 Switching Off the DecoRad® Floormate Press” Lamp” button on the handlebar; the UV lamp will switch to the dimming position. Press the "off" button on the display to switch off the DecoRad® Floormate, place on heat shield and let cool until auto off. -
Page 16: Error Messages / Tips
Description Solution General If an error cannot be solved directly by pressing ENTER, Restart after cooling down Communication error Please consult DecoRad® Systems bv Lamp driver fail The lamp driver is damaged, please consult DecoRad® Systems bv. System fail The electronics are damaged, please consult DecoRad®... -
Page 17: Specifications Of Decorad® Floormate
User Manual Floormate – V. 2.7 B/C 7. Specifications of DecoRad® Floormate SPECIFICATIONS Floormate General Brand and Type DecoRad® Floormate GEN6 Colour Silver / black Cure path 45 cm ✓ Lamphouse height adjustable to floor ✓ Zero degree turn radius ✓... -
Page 18: Service Parts
User Manual Floormate – V. 2.7 B/C 8. Service parts 8.1 Standard Delivery The DecoRad® Floormate is standard delivered with: Flight case (protection and transportation) 2 yellow Safety cones Operator manual and quick guide Personal UV safety package Power cable... -
Page 19: Replacing Service Parts
Remove the power cable Follow the steps below for replacing the UV-lamp. 1. Topple the DecoRad® Floormate over backwards and let it rest on the folded out handle bar. 2. Lower the red levers as much as possible; the lamp head is now in the lowest position. - Page 20 User Manual Floormate – V. 2.7 B/C 3. Loosen the lower socket head screw on both sides with a Allen Key and an open-end wrench. 4. Remove both sides lamphouse socket head screws. 5. Carefully remove the complete lamphouse. - 19 -...
- Page 21 7. Replace the entire lamp unit 8. Connect the wires of the new lamp with the two ceramic connectors. 9. Place the lamp unit back into the DecoRad® Floormate. 10. Place and tighten both sides lamphouse socket head screws 11. Pull both red levers straight up; the lamphouse is now in the highest position.
-
Page 22: Replacing The Mainprint
User Manual Floormate – V. 2.7 B/C 9.2 Replacing the Mainprint Make sure the DecoRad® Floormate is cooled down Remove the power cable 1. Make sure the handle bar has been folded forward and is secured. 2. Half-loosen the 2 indicated socket head screws. - Page 23 User Manual Floormate – V. 2.7 B/C 3. Open the lid. 4. Carefully pull off all connectors by hand. LEAVE THE WIRES IN THE CONNECTORS! - 22 -...
- Page 24 5. Remove the 8 socket head screws with which the print is attached. 6. Remove the Mainprint from the DecoRad® Floormate 7. Place the new Mainprint into the DecoRad® Floormate. 8. Secure the Mainprint with 8 socket head screws into the DecoRad® Floormate. 9. Connect all connectors to the Mainprint.
-
Page 25: Replacing The Fuses Of The Mainprint
9.3 Replacing the Fuses of the Mainprint Follow the steps below for replacing fuses on the Mainprint. 1. Spare fuse is packed in a bag and is located inside the DecoRad® Floormate. (1x 32mA) 2. Remove the indicated fuse cap and then the fuse. -
Page 26: Calibrating Speed
User Manual Floormate – V. 2.7 B/C 9.4 Calibrating speed Please follow the following steps to calibrate the speed of the DecoRad® Floormate (Check the speed frequently) 1. Put a range of 5 meters / 15 feet 2. Set the speed of the DecoRad® Floormate to – meters/ft per minute. -
Page 27: Appendices
User Manual Floormate – V. 2.7 B/C 10. Appendices 10.1 CE Declaration DecoRad® Systems bv Fokkerstraat 25 3905 KV Veenendaal The Netherlands Declare fully under own responsibility that the equipment specified in this declaration complies with the conditions as defined in:... -
Page 28: Tüv Declaration
User Manual Floormate – V. 2.7 B/C 10.2 TÜV Declaration - 27 -...
