Bikehanger Assembly Instructions

Step

Action

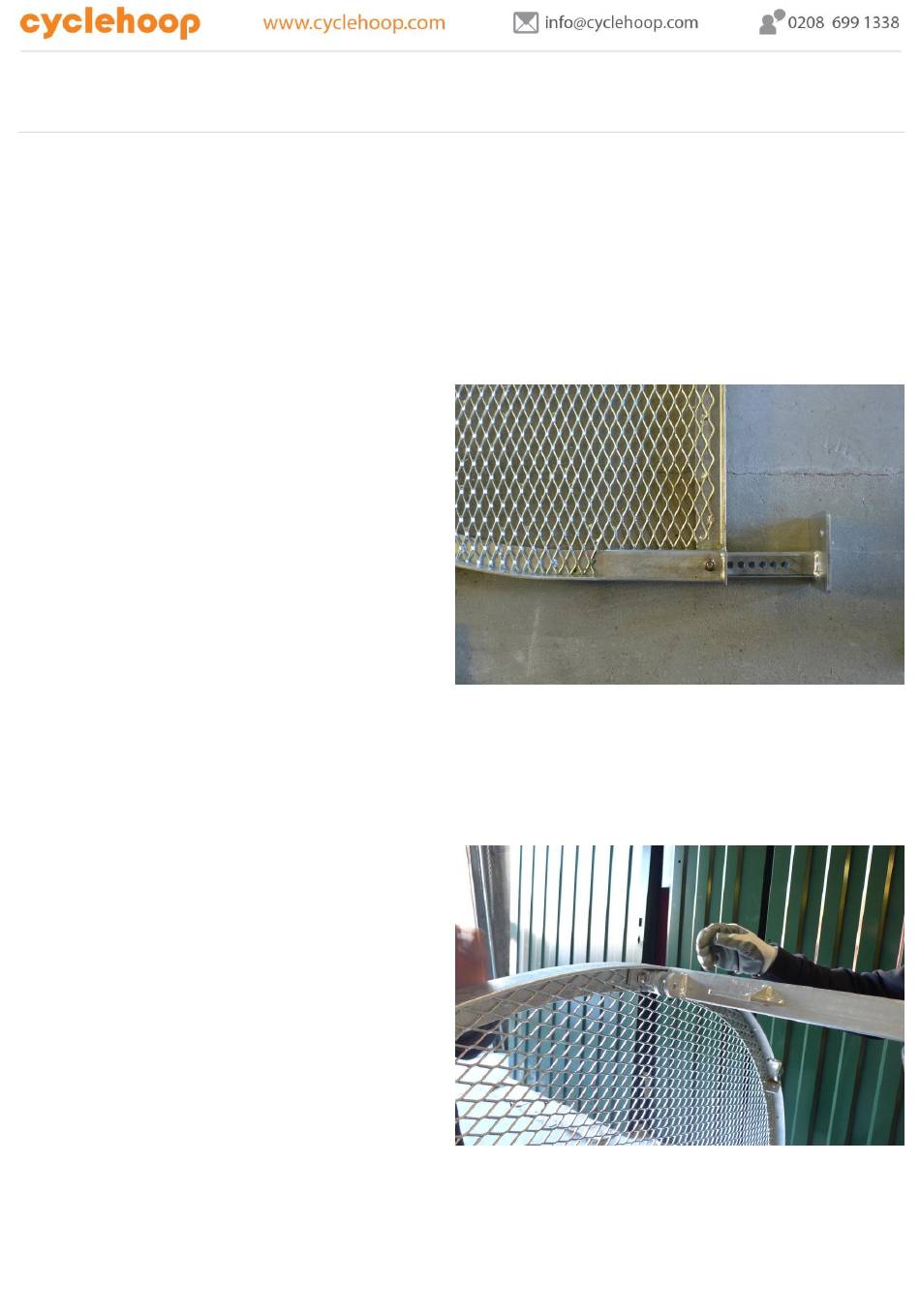

1 Insert Feet A and Feet B into Frame A.

Insert bolts and loosely tighten.

Mushroom head coach bolt faces internally on opening side of shelter.

Mushroom head coach bolt faces externally on rear side of shelter.

Repeat with Frame B.

2 Bolt Top Beam to Frame A and Frame B

Hand Tighten

3 Bolt Bottom Beam to Frame A and Frame B

Bolt above plate

Hand Tighten

Parts

Side frame A

Side frame B

Feet A

Feet B

M10 x 65mm mushroom

head coach bolt

M10 shear nut

Top Beam

M10 x 30mm mushroom

head coach bolt

M10 serrated flange nut

Bottom Beam

M10 x 20mm hex bolt

M10 serrated flange nut

Qty

Table of Contents

Need help?

Do you have a question about the Bikehanger and is the answer not in the manual?

Questions and answers

Summary of Contents for cyclehoop Bikehanger

Page 1 Bikehanger Assembly Instructions Step Action Parts 1 Insert Feet A and Feet B into Frame A. Side frame A Insert bolts and loosely tighten. Side frame B Mushroom head coach bolt faces internally on opening side of shelter. Feet A Mushroom head coach bolt faces externally on rear side of shelter.
Page 2 4 Bolt Middle Beam to Frame A and Frame B Middle Beam Bolt below plate M10 x 20mm hex bolt Hand Tighten M10 serrated flange nut 5 Loosely bolt Roof Panel 4 to side frame to hold it in place. Roof Panel 3 Hook Roof Panel 3 over Top Beam lip.
Page 3 6 Position Bike Rack Beam A and Bike Rack Beam B inside hanger. Bike Rack Beam A Bike Rack Beam B 7 Bolt Low Wheel Holders to Bike Rack Beam A and Bike Rack Beam B Low Wheel Holder Hand Tighten M10 x 20mm mushroom head coach bolt M10 serrated flange nut...
Page 4 10 Bolt Joining Plate to Bike Rack Beam B Joining Plate Hand Tighten M10 x 20mm hex bolt M10 serrated flange nut 11 Bolt Bike Rack Beam A and Bike Rack Beam B to Frame A and Frame B M10 x 20mm hex bolt Hand Tighten M10 serrated flange nut 12 Bolt Joining Plate to Bottom Beam...
Page 5 13 Bolt Gas Springs to Frame A and Frame B Gas Spring Note: Connect piston rod end (not cylinder end) M10 Nylock nut 14 Bolt Door Hinges to Door Frame Door Frame Nut on inside Door Hinge M12 nylock nut M12 x 30mm hex bolt...
Page 6 15 Bolt Door Hinges to Top Beam M12 x 60mm A2 st/st hex head bolt (45mm NOT thread) Apply grease to bolt M12 nylock nut 16 Bolt Gas Springs to Door Hinges through middle hole M10 Nylock nut...
Page 7 17 Loosely bolt Roof Panel 1 to Door Frame to hold it in place Roof Panel 1 Overlay Roof Panel 2 over Roof Panel 1 Roof Panel 2 M8 x 20mm mushroom Bolt Lock front cover to Locking box through frame head coach bolt Fix remaining bolts to panels and frame M8 serrated flange nut...
Page 8 18 Assemble Lock with Lock L plates Camlock Attach Locking Mechanism and Lock Front Cover through Door Frame Lock L Plates Apply Grease to Locking Mechanism 19 Attach Locking Bars to L-Brackets and through Door Frame Locking Bar M12 nut Note: Rotate locking bar to correct position.
