Summary of Contents for Arsys HL-SE02P-V1
- Page 1 Serial to Ethernet Converter HL-SE02P-V1 User’s Manual V3.606...
- Page 2 User’s Manual Serial to Ethernet converter Contents Table Welcome...…………………………………………………… 2 Package Contents.…………………………………………… Feature ………………………………………………………. Application…………………………………………………… 3 Specification…………………………………………………. Hardware Guide……………………………………………… 5 Ping Assignments……………………………………………. Factory Default Value……………………………………….. Configuration …………………………………..……………… 7 Preparation ……………..……………… 8 ...
-
Page 3: Package Contents

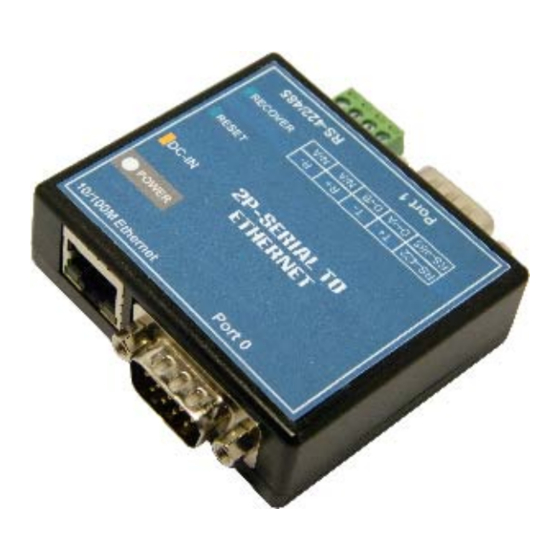

Serial to Ethernet converter Welcome HL-SE02P-V1 – 2 Port Serial to Ethernet converter is designed to offer high speed, reliable and cost-effective network communication for multiple serial devices. It will allow you to easily network enable your existing RS-232/422/485 serial devices over a TCP/IP-based Ethernet and supported Full TDD (Time Division Duplex) serial to Ethernet communication. - Page 4 User’s Manual Serial to Ethernet converter Application >> Implementing a Serial Extender over Ethernet >> Using Serial-to-Ethernet as a Virtual COM - 3 -...
-
Page 5: Specification
User’s Manual Serial to Ethernet converter Specification Model Name HL-SE02P-V1 Network Interface Connector RJ45 Interface Ethernet 10Base-T or 100Base-TX (Auto-Sensing) Setup HTTP Browser Setup Mode TCP Server/TCPIP Client /UDP Client Protocols ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, Telnet... -
Page 6: Hardware Guide
User’s Manual Serial to Ethernet converter Hardware Guide RS-232 Recover Button Reset Button Power Jack LED Indicator RS-232 - 5 -... -
Page 7: Pin Assignments
User’s Manual Serial to Ethernet converter Pin Assignments Port 0 & Port 1 - RS-232 DB9 Signal Direction Output Transmitted data Input Received data Signal ground Input Clear to send Output Request to send Input Port 1 - RS-422/485 Terminate RS-422 Mode RS-485 Mode... -
Page 8: Factory Default Value
User’s Manual Serial to Ethernet converter Factory Default Value Default Device name Default IP Address 192.168.1.254 Default IP Subnet Mask 255.255.255.0 WEB-Based Configuration http://192.168.1.254 Default Password 123456 Configuration Please see the setup guide for setup, configuration and use. ... - Page 9 User’s Manual Serial to Ethernet converter - 8 -...
- Page 10 User’s Manual Serial to Ethernet converter Port 1 – Setting Click the “Port 1” to change Serial parameters as you need. After parameters changed, you must select “Make these the default settings” then press “Submit” button then your new setting just will work successful. - 9 -...
- Page 11 User’s Manual Serial to Ethernet converter Server Mode Factory default Telnet mode is Server mode and waiting for link. Client device is able link Server by WinSock Hyper Terminal - 10 -...
- Page 12 User’s Manual Serial to Ethernet converter Client Mode Telnet Client mode supports Auto-Connect to Server device and you must type Server IP address in Client Serial parameters setting first. After parameters changed, you must select “Make these the default settings” then press “Submit”...
- Page 13 User’s Manual Serial to Ethernet converter System Setting SE03P - 12 -...
-
Page 14: Warranty Policy
Hardware Recover Factory Default Turn off power. Keep press “Recover” button of HL-SE02P-V1 then turn on power after 5 seconds take your hand off Recover button then HL-SE02P-V1 will become factory default value. Warranty Policy This device is guaranteed against manufacturing defects for one full year from the original date of purchase.
