Summary of Contents for Devine WMD-168MKII-B

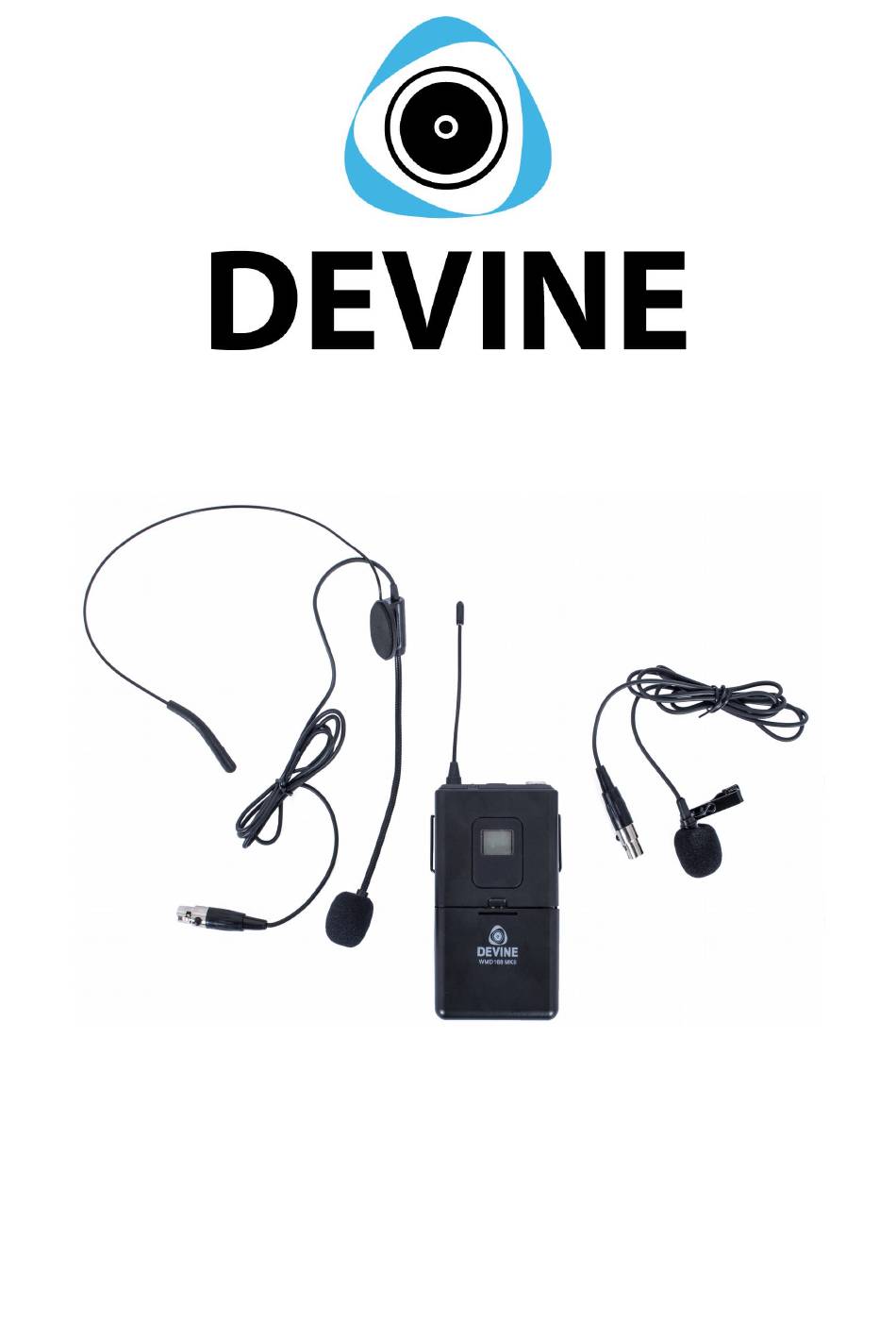

- Page 1 WMD-168MKII-B Bodypack kit with headset User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -...
- Page 2 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine cannot be held responsible for any damage or injury caused by improper use.
- Page 3 Housing: - Inspect the housing of the device frequently. Severe dents, cracks and missing screws should be acknowledged and dealt with accordingly. Do not use the device when the housing is not in optimal condition. Contact your dealer or a skilled technician when in doubt about the state of the device. - Check the device and screws for corrosion.
- Page 4 Indoor use only: This device is designed to only be used indoors. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address.
- Page 5 Box contents Box contents: 1x bodypack with antenna 1x headset microphone with antenna and mini XLR-cable 1x lavalier microphone with clip and mini-XLR cable 1x user manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 03-04-2019 RV Revision date + author initials: -...

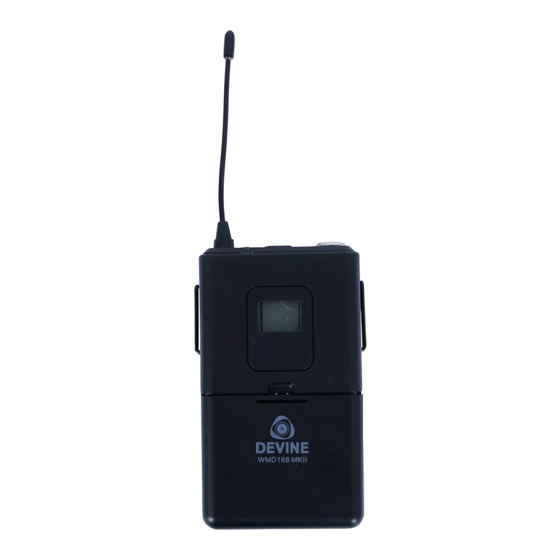

- Page 6 The LCD screen of the bodypack will turn on. Setting up the bodypack The WMD-168MKII-B bodypack kit comes with two types of microphones; a lavalier and a headset. They both feature the same specifications, the choice depends on the way the user wants to wear the microphone.
- Page 7 Volume adjustment The front of the WMD-168MKII receiver features separate volume knobs per microphone channel. These are used to change the microphone signal level. Set the audio level (indicated by ‘AF’) by turning the volume knob so that the speaker can talk at a comfortable level with enough headroom on the signal level for clean amplification.
- Page 8 Technical specifications Technical specifications: - frequency: 612-692 MHZ - channels: 160 - oscillation-mode: PLL - frequency stability: +/- 10 ppm - modulation mode: FM - max radio frequency power transmitted: 10 mW - audio frequency response: 50 ~ 16.000 Hz - distortion: <...
