Introduction and Applications
The KI6600 Series FiberSafe Microscope is a robust handheld tool for visual inspection of a fiber optic connector end-face. It is
fitted with red and infrared safety filters, and high-quality glass lenses. Easy to operate and ergonomically shaped, this
microscope is ideal for field, QA or laboratory use.
Inspection and cleaning of fiber connectors should be performed every time an optical fiber connector is mated, so every
technician needs easy access to a microscope. Failure to ensure connector end-face cleanliness is the most common cause of
problems in fiber systems, and can cause permanent damage to fiber connectors.
Rubber eye cup
Connector adaptor
)
(2.5mm Universal
Coaxial Illumination LED
Instrument and Standard Accessories
Description
FiberSafe Microscope (see Ordering Information section on last page for available models)
Option, Scope Adaptor 2.5 mm Universal (OPT681)
Type-A to Type-B(micro) USB cable
AAA Battery
Wrist strap
Soft carry pouch
Operation manual
QA certificate
Revision 7

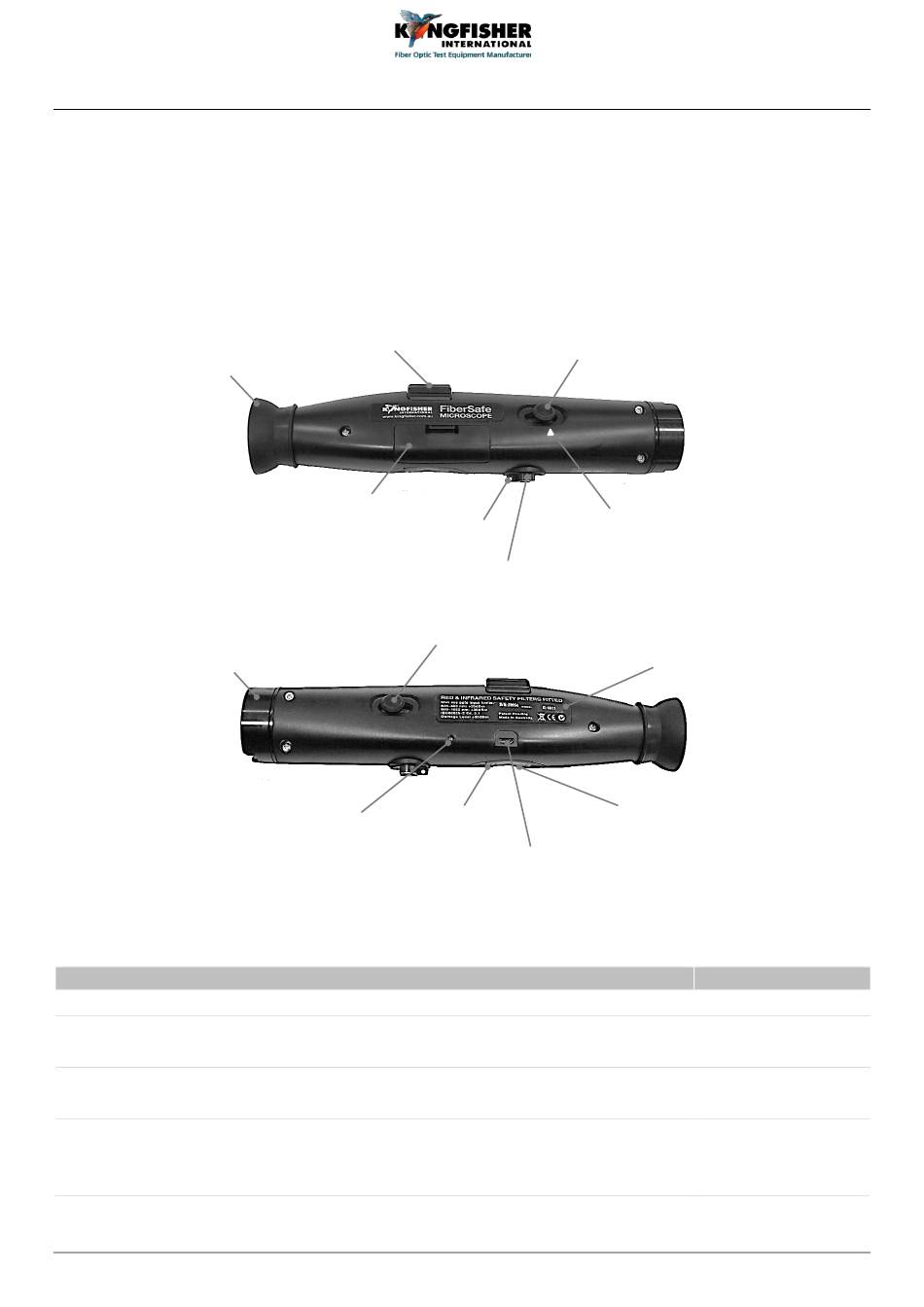

KI6600 Series FiberSafe Microscope User Guide
Focus knob
Battery compartment
Hole for wrist strap
Front switch of
toggle button
X-Y adjustment
Tripod mount
X-Y adjustment wheel (left)
Micro USB power input
Date: 19/05/2020
wheel (right)
White arrow indicating
position of alignment wheel
when microscope is in focus
Laser Safety Information
Rear switch of toggle button
Quantity
1
1
1
1
1
1
1
1
