Summary of Contents for SmokeCloak LED Strobe

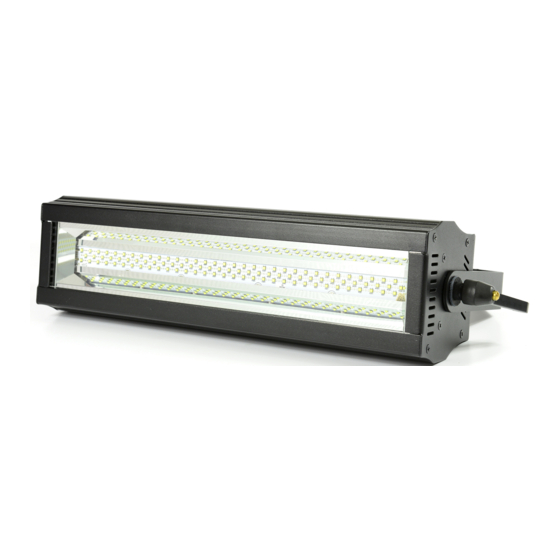

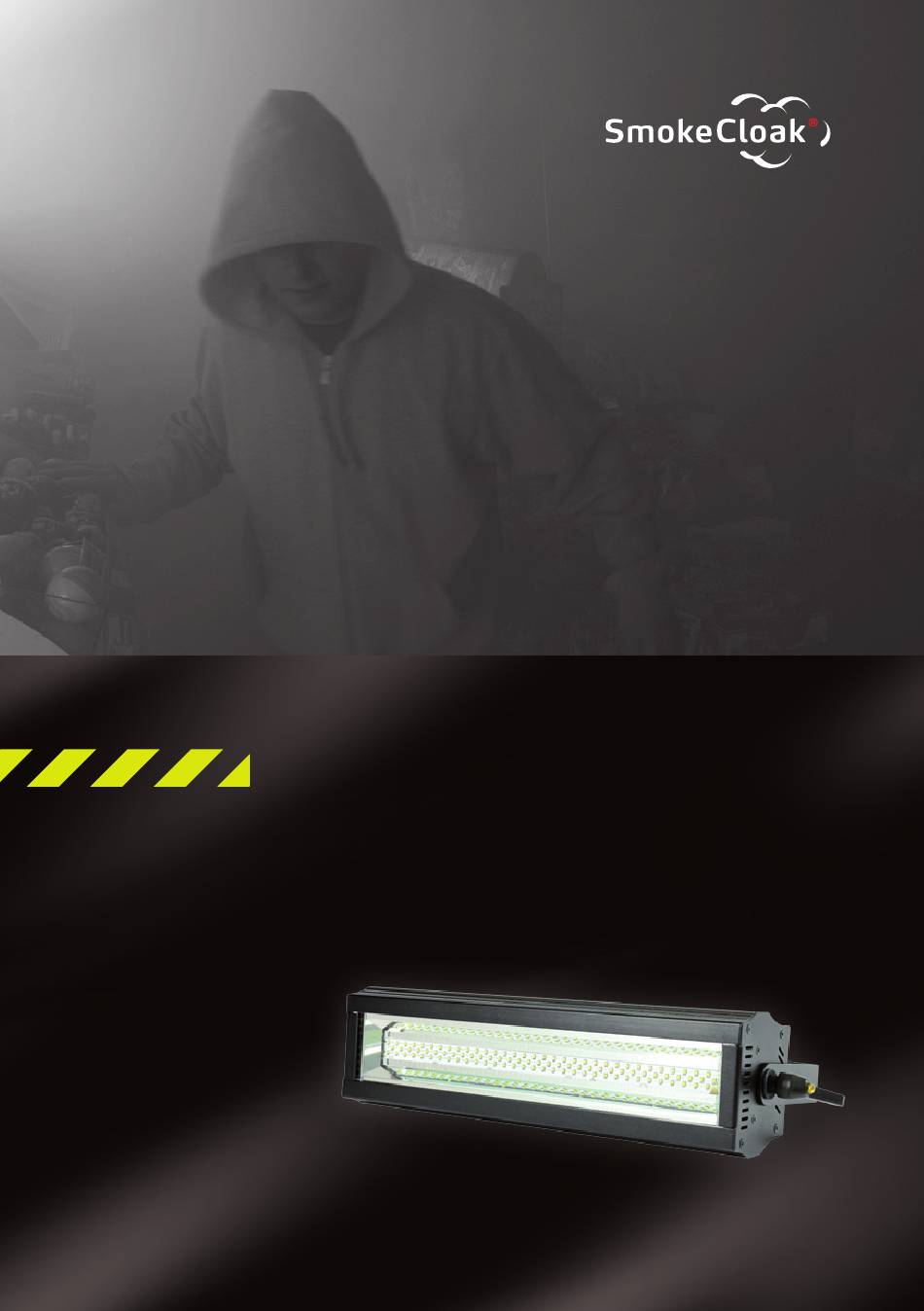

- Page 1 LED Strobe INSTALLATION AND OPERATING INSTRUCTION...
- Page 2 MSS Professional A/S Reproduction in any matter whatsoever without the written permis- sion of MSS Professional A/S is strictly forbidden. Smokecloak is a registered trademark Smokecloak is protected by Patent Nos. 2270396, 5394139, 0659293 and 93/6722. February 2005. Ref. MSS590C...
-
Page 3: Table Of Contents
Fastening the unit to a flat surface ........... 9 AC power ................. 10 Linking units to power in a chain ..........10 Unit overview ................11 Triggering the LED Strobe ............12 Maintenance ................13 Cleaning ................13 Replacing the primary fuse............ 14 Other service and repairs ............14 Troubleshooting ................. -
Page 4: Safety Information
Install, operate and service the LED Strobe only as directed in this user manual, or you may create a safety hazard or cause damage that is not covered by product warranties. Follow the safety precautions listed below and observe all warnings in this manual and printed on the product. - Page 5 For the latest user documentation and other information for this and all SmokeCloak products, please visit the SmokeCloak website at http:// www.SmokeCloak.com If you have any questions about how to install, operate or service the unit safely, please contact your SmokeCloak distributor.
- Page 6 If the unit is installed in a location where it may cause injury or damage if it falls, install a secondary attachment such as a safety cable that will hold the unit if a primary attachment fails. LED Strobe user manual...
- Page 7 Refer any service operation not described in this manual to a qualified technician. Protection from epileptic seizure Flashing light is known to trigger epileptic seizures in persons who are flicker-sensitive. Display advisory notices at the point of Entry. See label below LED Strobe user manual...
-
Page 8: Introduction
(not supplied) on the end of the supplied power cable. 4. Before operating, ensure that the voltage and frequency of the local power source match the power requirements of the unit. LED Strobe user manual... -
Page 9: Physical Installation
The unit mounting bracket can be fastened to a hard, fixed, flat surface. The unit and surface can be oriented at any angle. Ensure that the mounting surface and all fasteners used can support at least 10 times the weight of all units and equipment they will support. LED Strobe user manual... -
Page 10: Ac Power
Live or L Neutral or N Earth, Ground O US system Black White Green US system Brown Blue Yellow/green The unit has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the unit. LED Strobe user manual... -
Page 11: Unit Overview
- The Slave LED will be lit when the unit is powered on and not active - All four LEDs will flash at approximately 1 sec intervals when the unit is triggered. 6. Display The display shows LED Strobe only during normal operation. When the unit is activated the screen goes dark. 7. Control buttons The buttons located below the display do not have any functional use on this product. -
Page 12: Triggering The Led Strobe
It is triggered by short circuiting the two prepared cables supplied with the unit. This can be achieved via a system active output on your SmokeCloak device (programmed as N/O going closed when active) or via an active output on your intruder alarm system whichever is more convenient. -
Page 13: Maintenance
This procedure will allow you to assess cleaning requirements in your particular situation. Use gentle pressure only when cleaning, and work in a clean, well-lit area. Do not use any product that contains solvents or abrasives, as these can cause surface damage. LED Strobe user manual... -
Page 14: Replacing The Primary Fuse
There are no user-serviceable parts inside the unit. Do not open the housing. Do not try to carry out repairs yourself, as doing so may present a health or safety risk. It may also cause damage or malfunction, and it may void your product warranty. LED Strobe user manual... -
Page 15: Troubleshooting
Ensure that the mains unit, fans not such as blown fuse, supply is supplying working and unit faulty connector or power to the unit. appears dead. damaged cable. Check all power con- nections and cables. Replace the unit fuse. LED Strobe user manual... -
Page 16: Specifications
Minimum distance to illuminated surfaces ...... 0.2 m (8 in.) Minimum distance to combustible materials ....0.1 m (4 in.) Minimum clearance around fans and vents ..... 0.1 m (4 in.) Electrical AC power ......... 100-240 V nominal, 50/60 Hz Power supply unit ............Diode bridge LED Strobe user manual... - Page 17 Ordering Information LED Strobe ............. P/N 92622050 Disposing of this product SmokeCloak products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life.
- Page 18 Supplier: Contact: MSS Professional A/S Agerhatten 25 DK - 5220 Odense SØ Danmark Telefon: +45 6473 1407 www.smokecloak.com...
