Ambient Food Service Modules
MODEL NUMBERS
Thank you for buying a Flexiline Unit. We hope and expect that you will get many years of satisfactory use
from your purchase.
In order to achieve the best results from your equipment please read, and follow, the installation, operating,
Cleaning and maintenance instructions below. Failure to follow them may affect the warranty.
1.
UNPACKING AND ASSEMBLY
All protective coating used on stainless steel surfaces of the hot cupboard must be removed. The exposed
surfaces can then be wiped clean with a damp cloth, using a mild detergent or soap if necessary.
DO NOT USE ANY ABRASIVE MATERIAL OR FORM OF BLEACH FOR CLEANING PURPOSES.
Please see cleaning section of this manual.
Four Swivel Castors are fitted, two of which are braked.
2.
INSTALLATION
The appliance may be optionally fitted with a lead and 13 Amp fused plug, in which case it only requires
connection to a suitable 13 Amp socket outlet. This model is suitable for 230 – 240V A.C. supply only. Ensure
that the electricity supply is as stated on the model's data plate.
The product may be used to link other units together electrically. Up to three heated units without quartz
gantries or two heated units with quartz gantries can be linked to one socket outlet.
Some units can also be physically linked; these units have pushbars on either end. The pushbars have linking
hooks fitted. To link the units push them up to each other and rotate the hooks so that they loop over the
adjacent push bar.
Important:
Wires in the mains lead are coloured in accordance with the following code:
Green and Yellow
Blue
Brown
Warning:
This appliance must be earthed, do not touch internal wiring.
As the colours of the wires in the mains lead on this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
(a)
The wire which is coloured green and yellow must be connected to the terminal in the plug, which is
marked with letter E or the sign.
(b)
The wire which is coloured blue must be connected to the terminal which is marked with the letter N
or is coloured black.
(c)
The wire which is coloured brown must be connected to the terminal which is marked with the letter L
or is coloured red.
Jamaican Flexiline
BS10AE
BS30AE
-
Earth
-
Neutral
-
Live
BS30AP
BS06TS
Advertisement
Table of Contents
Summary of Contents for Victor Jamaican Flexiline BS10AE

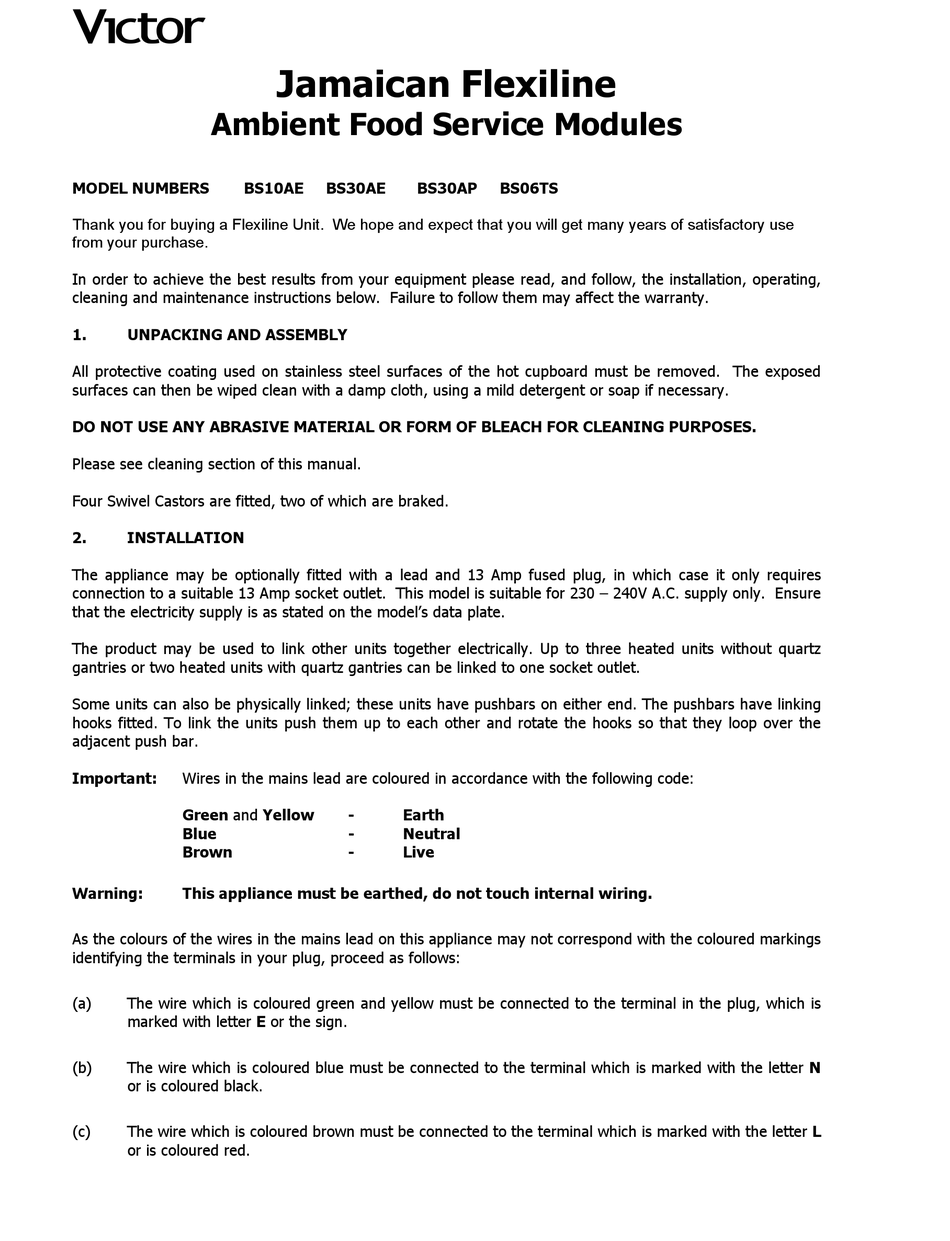

- Page 1 Jamaican Flexiline Ambient Food Service Modules MODEL NUMBERS BS10AE BS30AE BS30AP BS06TS Thank you for buying a Flexiline Unit. We hope and expect that you will get many years of satisfactory use from your purchase. In order to achieve the best results from your equipment please read, and follow, the installation, operating, cleaning and maintenance instructions below.
