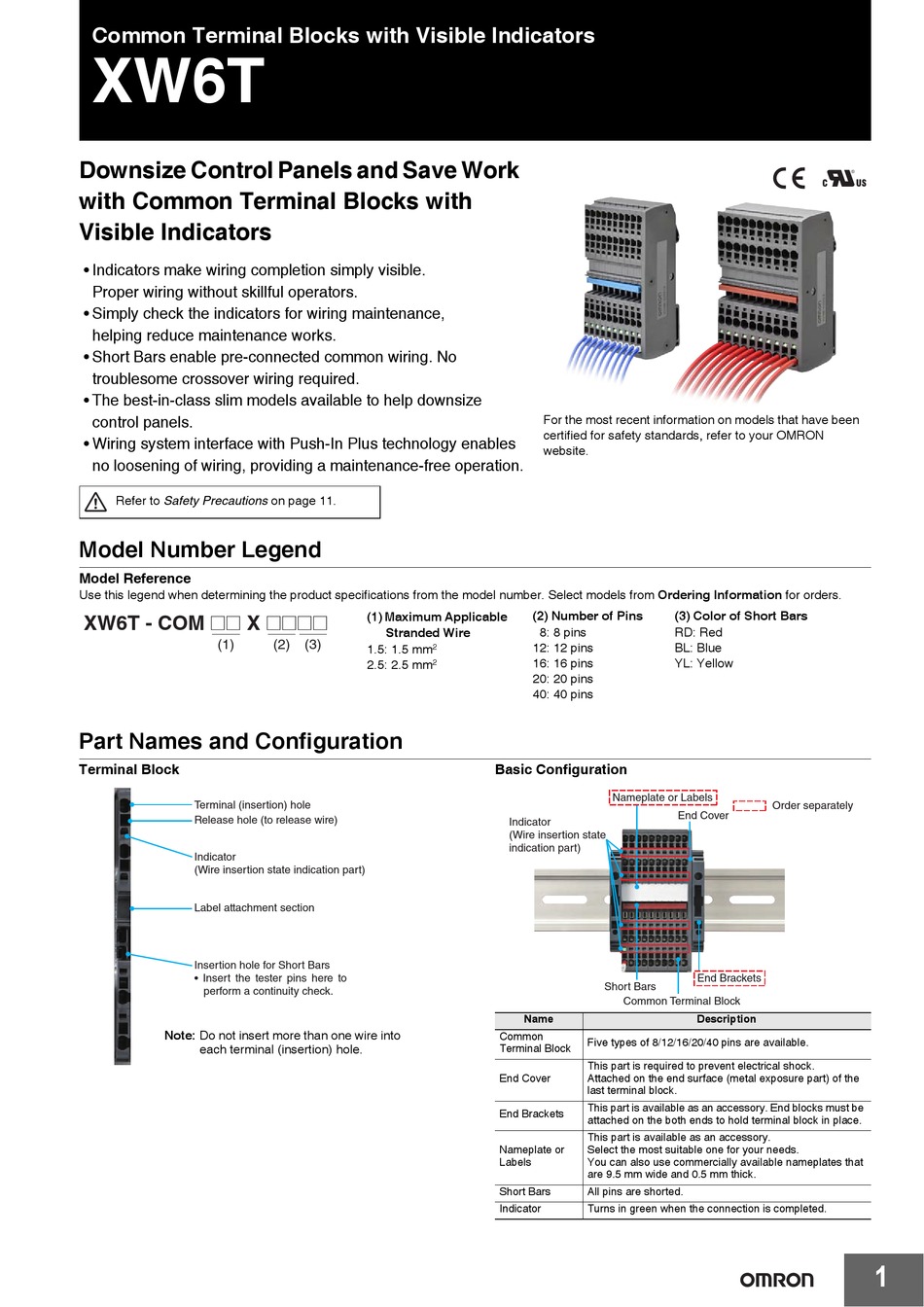

Common Terminal Blocks with Visible Indicators
XW6T
Downsize Control Panels and Save Work
with Common Terminal Blocks with
Visible Indicators
• Indicators make wiring completion simply visible.
Proper wiring without skillful operators.
• Simply check the indicators for wiring maintenance,
helping reduce maintenance works.
• Short Bars enable pre-connected common wiring. No
troublesome crossover wiring required.
• The best-in-class slim models available to help downsize
control panels.
• Wiring system interface with Push-In Plus technology enables
no loosening of wiring, providing a maintenance-free operation.
Refer to Safety Precautions on page 11.
Model Number Legend
Model Reference
Use this legend when determining the product specifications from the model number. Select models from Ordering Information for orders.
XW6T - COM @@ X @@@@
(1)
Part Names and Configuration

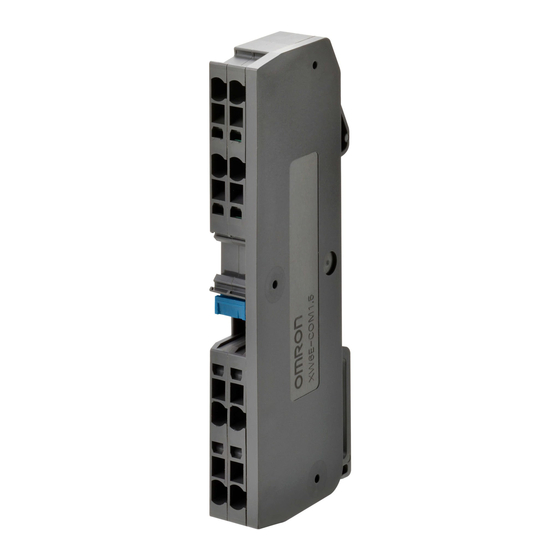

Terminal Block
Terminal (insertion) hole
Release hole (to release wire)
Indicator
(Wire insertion state indication part)
Label attachment section
Insertion hole for Short Bars
• Insert the tester pins here to
perform a continuity check.
Note: Do not insert more than one wire into
each terminal (insertion) hole.
(1) Maximum Applicable
Stranded Wire
(2) (3)
1.5: 1.5 mm 2
2.5: 2.5 mm 2
For the most recent information on models that have been
certified for safety standards, refer to your OMRON
website.
(2) Number of Pins
8: 8 pins
12: 12 pins
16: 16 pins
20: 20 pins
40: 40 pins
Basic Configuration
Nameplate or Labels
Indicator
(Wire insertion state
indication part)
Short Bars
Common Terminal Block
Name
Common
Five types of 8/12/16/20/40 pins are available.
Terminal Block
This part is required to prevent electrical shock.
End Cover Attached on the end surface (metal exposure part) of the
last terminal block.
This part is available as an accessory. End blocks must be
End Brackets
attached on the both ends to hold terminal block in place.
This part is available as an accessory.
Nameplate or Select the most suitable one for your needs.
Labels You can also use commercially available nameplates that
are 9.5 mm wide and 0.5 mm thick.
Short Bars All pins are shorted.
Indicator Turns in green when the connection is completed.
(3) Color of Short Bars
RD: Red
BL: Blue
YL: Yellow
Order separately
End Cover
End Brackets
Description
